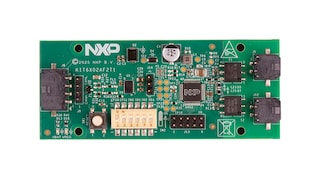

汽车CAN FD收发器系列

TJA144x
正常供应

滚动图片以放大

TJA144x系列收发器可在控制器局域网(CAN)或CAN灵活数据传输速率(FD)协议控制器和物理双线式CAN总线之间提供接口。

  • TJA1441：基础CAN
  • TJA1442：待机模式CAN
  • TJA1443：睡眠模式CAN
  • TJA1448：双通道待机模式CAN

所有型号在CAN FD快速相位下，即使数据速率高达5Mbit/s，也能实现可靠的通信。

TJA144x可作为高速经典CAN和CAN FD收发器的简单替代产品。它提供引脚兼容性，可避免更改硬件和软件设计，使TJA1442可以轻松地改装为现有应用。

AEC-Q100 0级型号TJR144x可用于高温应用，支持在150°C环境温度下运行。

TJF1441是一种为低速工业解决方案优化的器件版本。

如需了解更多信息和样品供货情况，请联系当地的销售机构。

框图

选择框图:

TJA1441

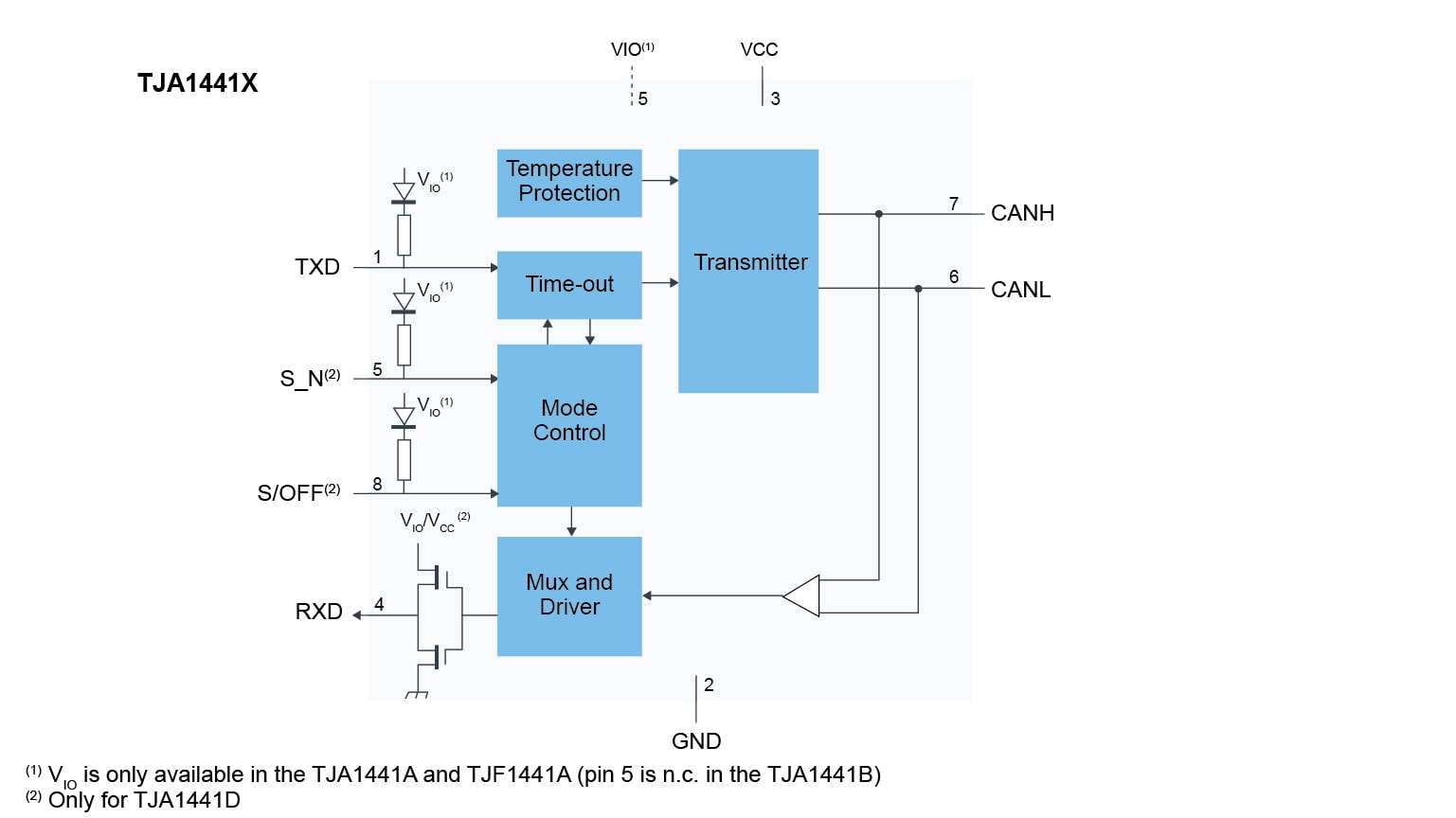

TJA1441 Block Diagram

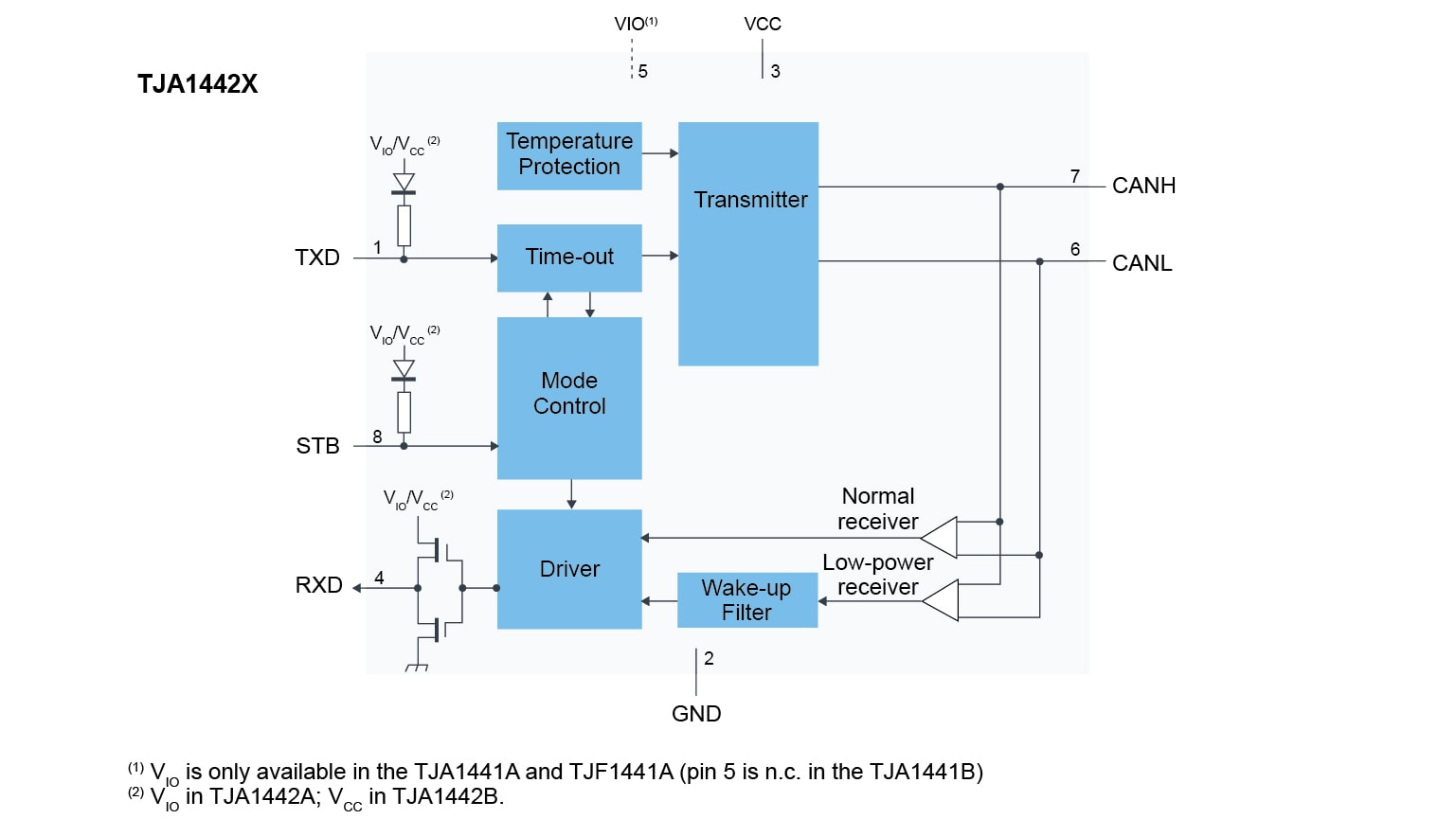

TJA1442

TJA1442 Block Diagram

TJA1443

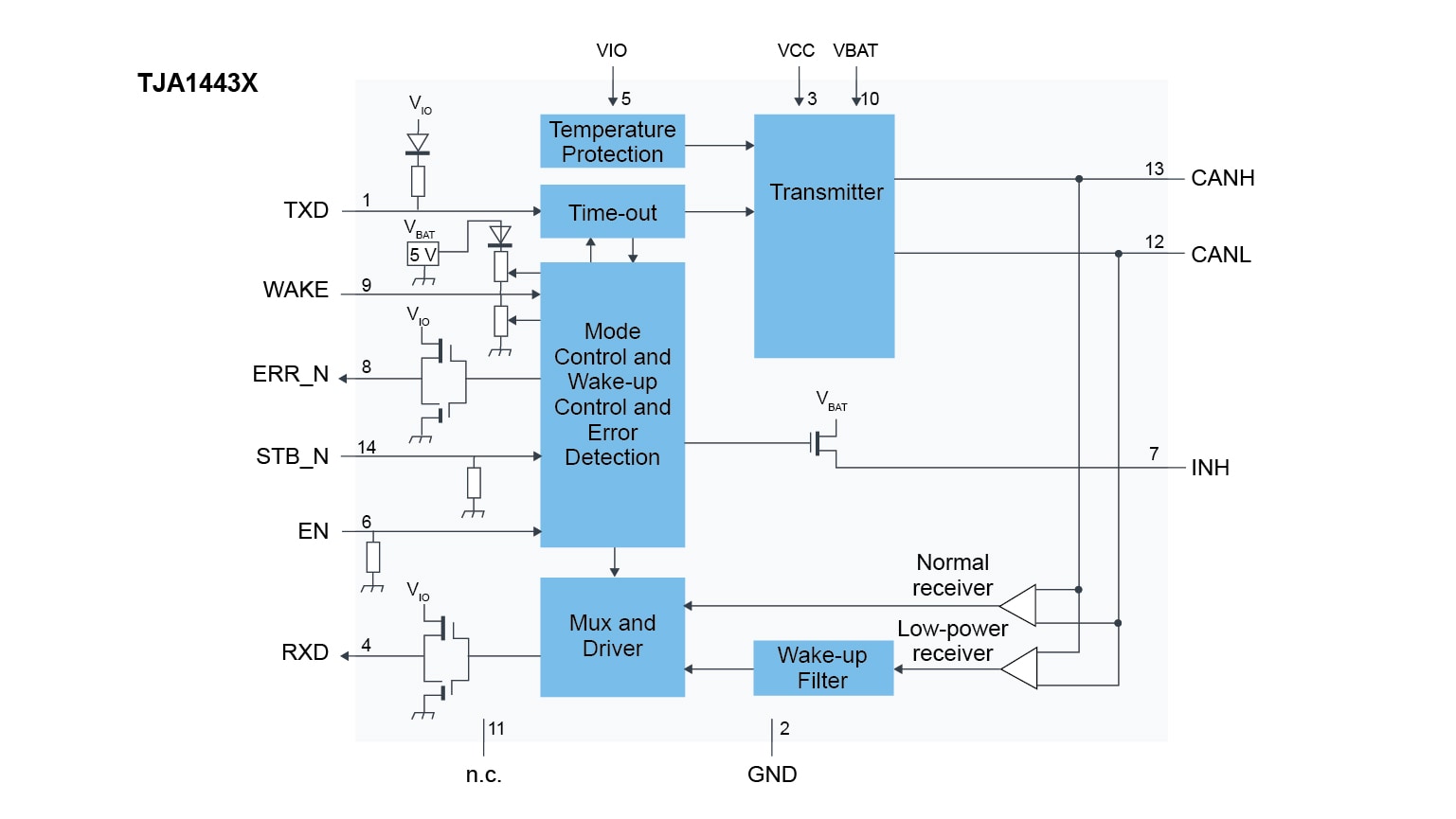

TJA1443 Block Diagram

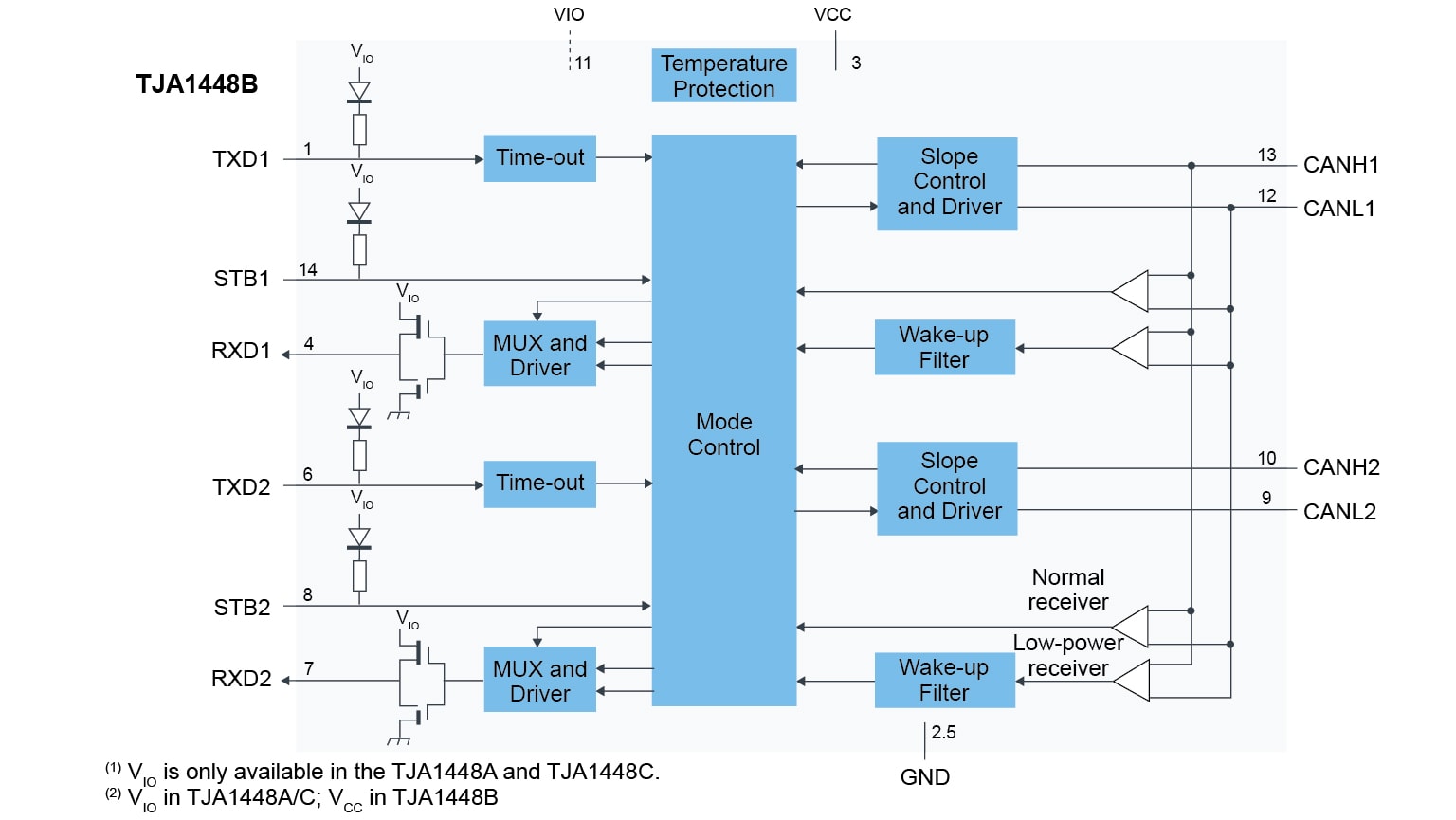

TJA1448

TJA1448 Block Diagram
获取框图PDF

特性

主要特性

  • HS CAN和CAN FD最高速率为5Mbit/s
  • 符合ISO11898-2:2016、SAE J2284-1至-5和SAE J1939-14标准
  • 可与高速经典CAN和CAN FD收发器完全互操作
  • 符合VeLIO要求
  • 符合AEC-Q100 1级(环境温度=125˚C)
  • 符合AEC-Q100 0级(环境温度=150˚C)，可根据要求提供(TJR144x)
  • 符合IEC61000-4-2标准，提供±8kV的卓越抗ESD能力
  • 提供SO和HVSON封装
  • 具有自诊断功能的稳健设计
  • 产品极限值范围内的无间隙可预测和故障安全行为
  • 过温保护
  • 专为20 PPB而设计
  • 深绿色产品(符合RoHS标准)
  • 与恩智浦的上一代HS CAN产品引脚到引脚和软件兼容
  • 同一个系列：了解一款，即了解全系列！

对比表

TJA1441 TJA1442 TJA1448 TJA1443
特性 基础CAN 待机模式CAN 双通道待机模式CAN 睡眠模式CAN
VCC供电电压 5V±10% 5V±10% 5V±10% 5V±10%
VIO电源电压范围 2.95V-5.5V 2.95V-5.5V 2.95V-5.5V 2.95V-5.5V
电源无间隙运行
CAN FD最大数据传输速率 5Mbps 5Mbps 5Mbps 5Mbps
CAN引脚总线电容 20pF 20pF 20pF 20pF
待机模式电流“仅VCC”(最大值) - 12µA 18µA -
待机模式电流“VCC和VIO”(最大值) - 12µA 18µA 22µA
待机模式电流“仅VIO”(最大值) - 11µA 16µA 21µA
睡眠模式电流(最大值) - - - 28µA
ESD IEC61000-4-2 ±8kV ±8kV ±8kV ±8kV
CAN总线耐用性 -36V/+40V -36V/+40V -36V/+40V -36V/+40V
WUP过滤时间 - 0.5µs-1.8µs 0.5µs-1.8µs 0.5µs-1.8µs
环路延迟(最大值) 230ns 230ns 230ns 230ns
符合ISO11898-2:2016标准
符合SAE J2284-1至-5标准
符合3V 3 MCU接口标准(VIO引脚) TJA1441A TJA1441A TJA1448A/C TJA1443A
符合5V 0 MCU接口标准 TJA1441A/B TJA1441A/B TJA1448A/B/C TJA1443A
符合VeLIO标准
符合AEC-Q100 1级
符合AEC-Q100 0级 TJR1441 TJR1442 TJR1448 TJR1443

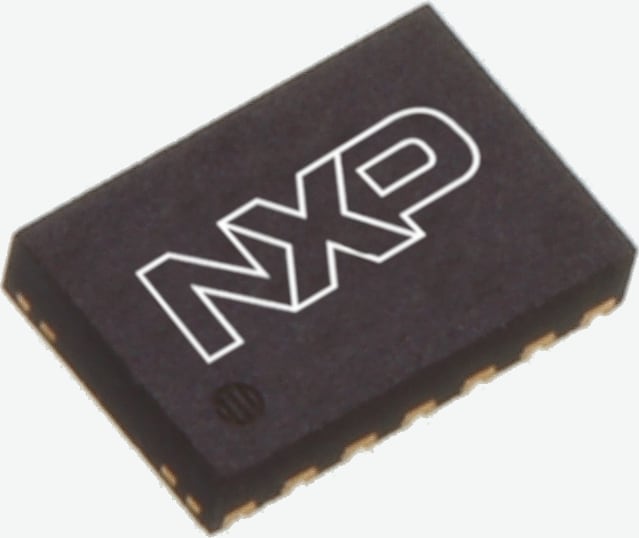

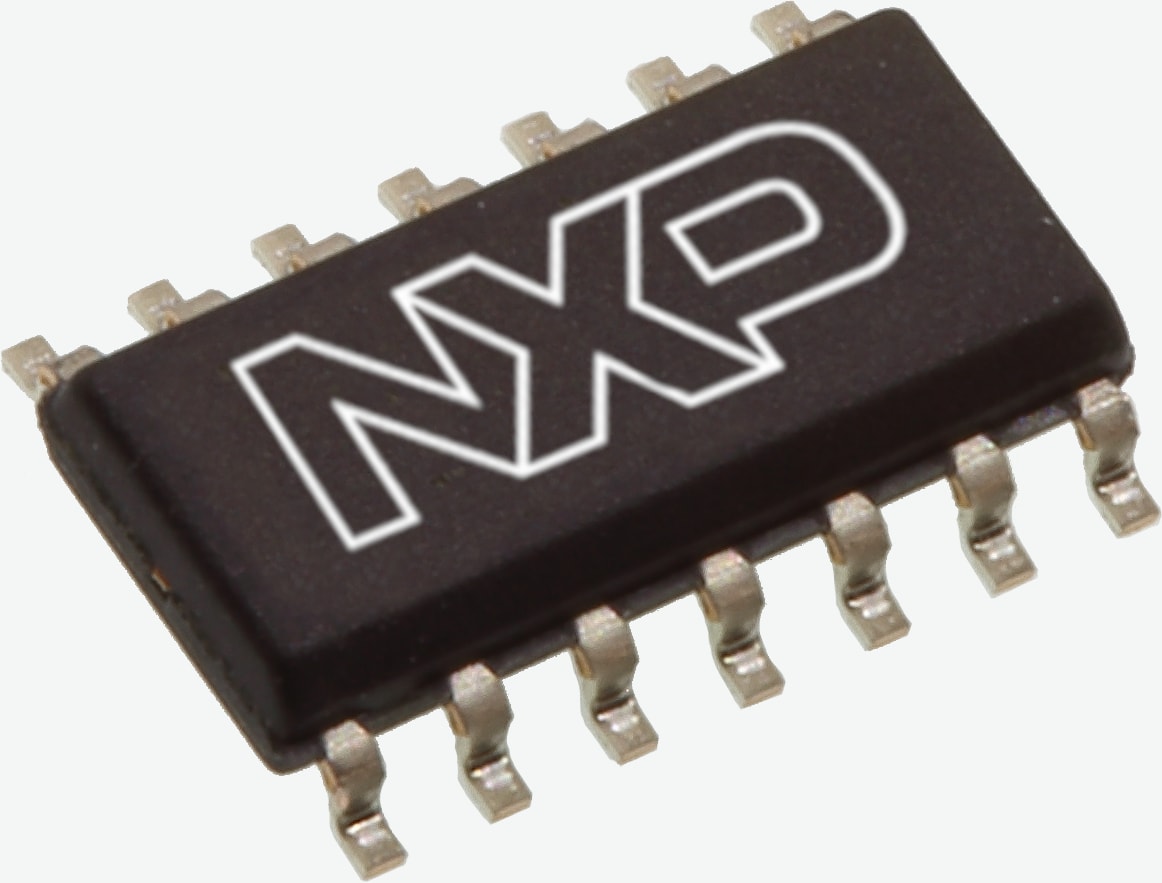

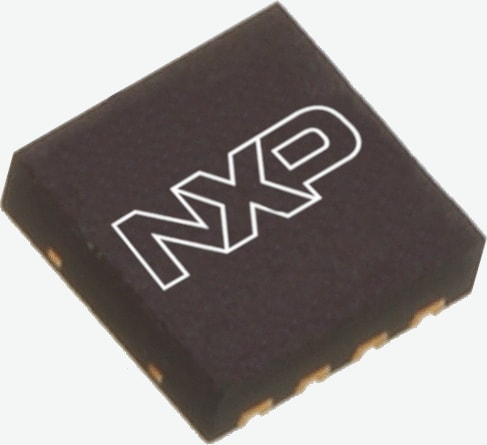

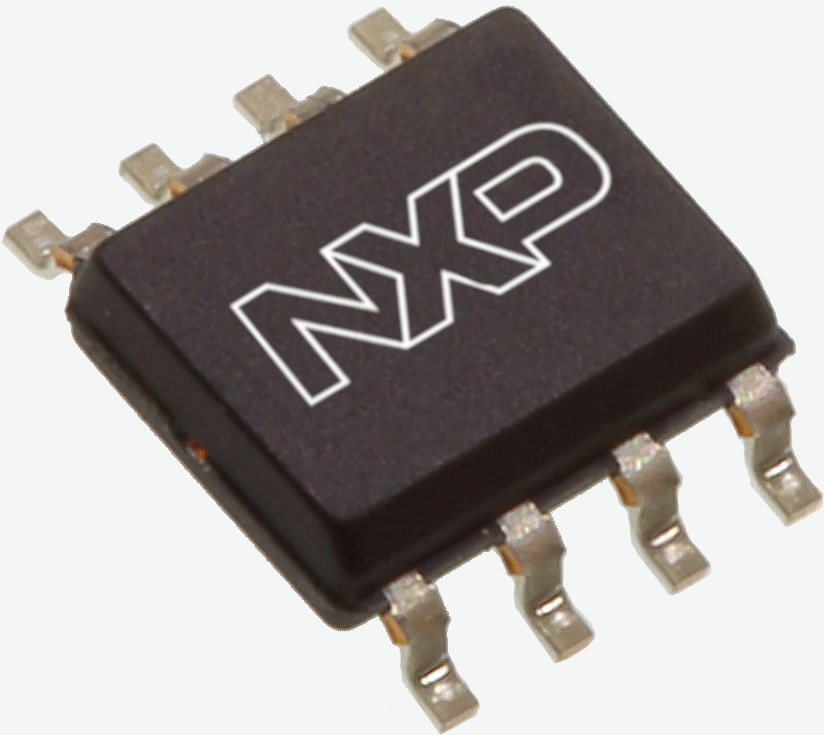

封装 SO8、HVSON8 SO8、HVSON8 SO14、HVSON14 SO14、HVSON14

购买/参数

1-10 / 34 结果

包含 1 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

Recommended Orderable Part Number

New Generation Recommendation

MCU I/O Interface (V)

CAN Bus Robustness [Min-Max] (V)

Low Power Modes

封装类型

CAN Channels

产品类别

输入电压[最小到最大]（V）

传输速率（最小）（Kbps）

Voltage on bus pins [Min-Max] (V)

VESD IEC on bus pins (+/- kV)

Tvj [max] (℃)

保护

Wake-Up Pin

Min High Input Levels (V) [Vio]

GPIO

Supported standards

SPLIT Pin

Thermal Resistance (Spec) (℃/W)

目标应用

TJA1441AT
数据手册

正常供应

TJA1441AT/0Z

TJA1057BT

3.3, 5.0

-36 to 40

Silent Mode

SO8

1

CAN FD / High-Speed CAN

4.5 to 5.5

40.0

-36 to 40

-8 to 8

150

TXD dominant timeout, overtemperature detection, undervoltage detection

N

0.7

8

ISO-11898-2:2016, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

96

Automotive, Industrial

TJA1441ATK
数据手册

正常供应

TJA1441ATK/0Z

—

3.3, 5.0

-36 to 40

Silent Mode

HVSON8

1

CAN FD / High-Speed CAN

4.5 to 5.5

40.0

-36 to 40

-8 to 8

150

TXD dominant timeout, overtemperature detection, undervoltage detection

N

0.7

8

ISO-11898-2:2016, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

57

Automotive, Industrial

TJA1441BT
数据手册

正常供应

TJA1441BT/0Z

TJA1057CT

5.0

-36 to 40

Silent Mode

SO8

1

CAN FD / High-Speed CAN

4.5 to 5.5

40.0

-36 to 40

-8 to 8

150

TXD dominant timeout, overtemperature detection, undervoltage detection

N

0.7

8

ISO-11898-2:2016, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

96

Automotive, Industrial

TJA1441BTK
数据手册

正常供应

TJA1441BTK/0Z

—

5.0

-36 to 40

Silent Mode

HVSON8

1

CAN FD / High-Speed CAN

4.5 to 5.5

40.0

-36 to 40

-8 to 8

150

TXD dominant timeout, overtemperature detection, undervoltage detection

N

0.7

8

ISO-11898-2:2016, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

57

Automotive, Industrial

TJA1441DT
数据手册

正常供应

TJA1441DT/0Z

—

5.0

-36 to 40

Silent Mode

SO8

1

CAN FD / High-Speed CAN

4.5 to 5.5

40.0

-36 to 40

-8 to 8

150

TXD dominant timeout, overtemperature detection, undervoltage detection

N

0.7

8

ISO-11898-2:2016, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

96

Automotive, Industrial

TJA1441DTK
数据手册

正常供应

TJA1441DTK/0Z

—

5.0

-36 to 40

Silent Mode

HVSON8

1

CAN FD / High-Speed CAN

4.5 to 5.5

40.0

-36 to 40

-8 to 8

150

TXD dominant timeout, overtemperature detection, undervoltage detection

N

0.7

8

ISO-11898-2:2016, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

57

Automotive, Industrial

TJA1442AT
数据手册

正常供应

TJA1442AT/0Z

TJA1044BT

3.3, 5.0

-36 to 40

Standby Mode

SO8

1

CAN FD / High-Speed CAN

4.5 to 5.5

40.0

-36 to 40

-8 to 8

150

TXD dominant timeout, overtemperature detection, undervoltage detection

N

0.7

8

ISO-11898-2:2016, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

96

Automotive, Industrial

TJA1442ATK
数据手册

正常供应

TJA1442ATK/0Z

—

3.3, 5.0

-36 to 40

Standby Mode

HVSON8

1

CAN FD / High-Speed CAN

4.5 to 5.5

40.0

-36 to 40

-8 to 8

150

TXD dominant timeout, overtemperature detection, undervoltage detection

N

0.7

8

ISO-11898-2:2016, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

57

—

TJA1442BT
数据手册

正常供应

TJA1442BT/0Z

—

5.0

-36 to 40

Standby Mode

SO8

1

CAN FD / High-Speed CAN

4.5 to 5.5

40.0

-36 to 40

-8 to 8

150

TXD dominant timeout, overtemperature detection, undervoltage detection

N

0.7

8

ISO-11898-2:2016, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

96

Automotive, Industrial

TJA1442BTK
数据手册

正常供应

TJA1442BTK/0Z

—

5.0

-36 to 40

Standby Mode

HVSON8

1

CAN FD / High-Speed CAN

4.5 to 5.5

40.0

-36 to 40

-8 to 8

150

TXD dominant timeout, overtemperature detection, undervoltage detection

N

0.7

8

ISO-11898-2:2016, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

57

Automotive, Industrial
