具备待机和睡眠模式的高速CAN收发器

TJA1043
正常供应

TJA1043是一款高速CAN收发器，可在控制器局域网(CAN)协议控制器和物理双线式CAN总线之间提供接口。该收发器专为汽车行业的高速CAN应用而打造，可以为(微控制器中的)CAN协议控制器提供发送和接收差分信号的功能。

TJA1043是恩智浦半导体的第三代高速CAN收发器，相比第一代和第二代器件(如TJA1041A)，有明显的改进。它提升了电磁兼容性(EMC)和静电放电(ESD)性能，具有极低的功耗和电源电压关闭时的无源性能。高级功能包括：

  • 低功耗电源管理控制整个节点的电源，同时支持本地和远程唤醒并具有唤醒源识别功能
  • 多种保护和诊断功能，包括总线线路短路检测和电池连接检测
  • 可以直接连接电源电压为3V至5V的微控制器

TJA1043实现了当前ISO11898标准(ISO11898-2:2003、 ISO11898-5:2007以及ISO11898-2:2016即将发布的更新版本)中定义的CAN物理层。包括CAN FD和SAE J2284-4/5的ISO11898-2:2016版本即将发布，规定了用于定义环路延迟对称性的新增时序参数。在CAN FD快速相位下，即使数据速率高达5Mbit/s，也能实现可靠的通信。

对于包含需要节点随时待命(即使内部VIO和VCC电源已关闭)的高速CAN网络，这些功能使TJA1043成为理想的选择。

更多

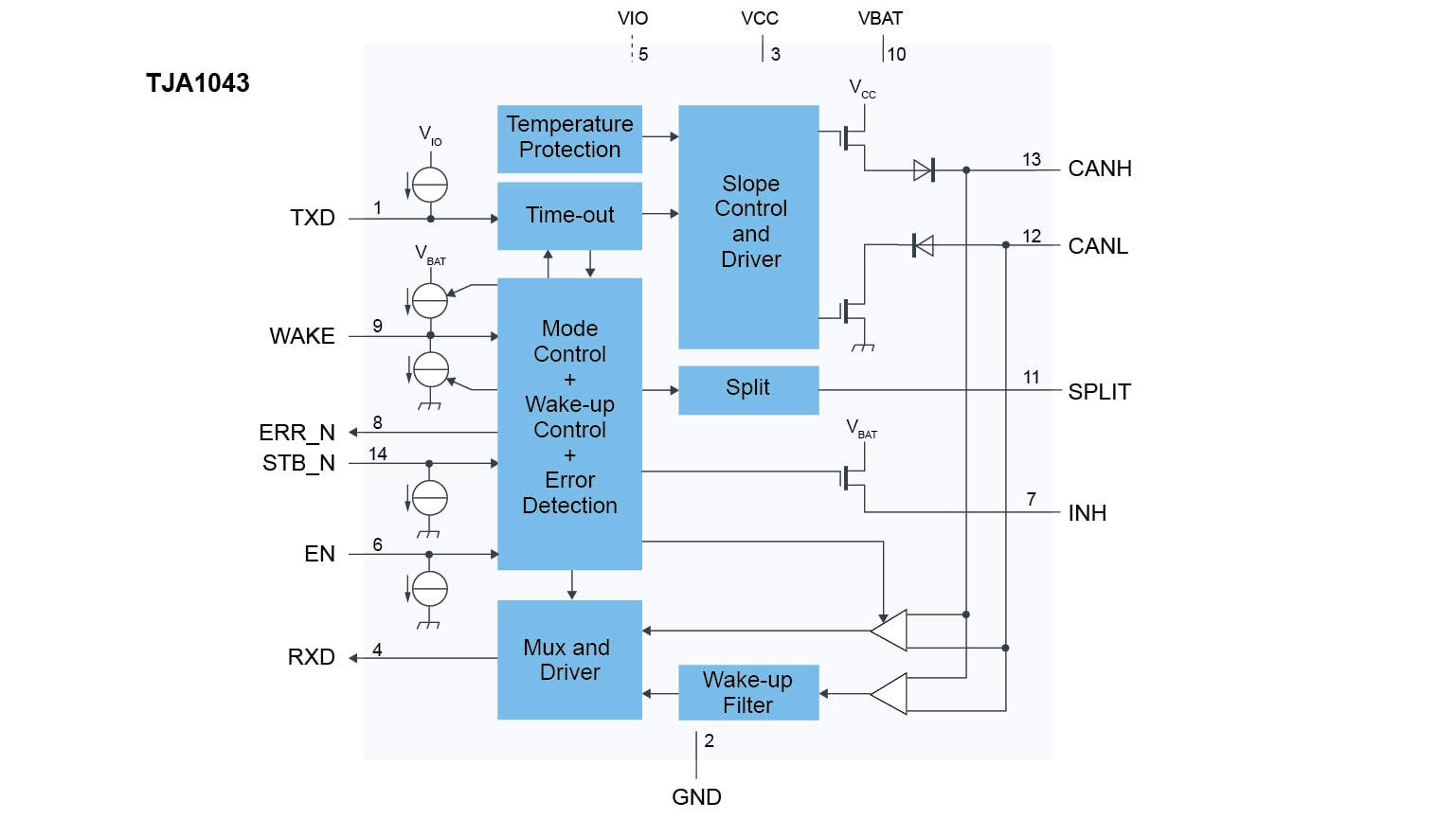

框图

TJA1043

TJA1043 Block Diagram
获取框图PDF

特性

一般特性

  • 完全符合ISO11898-2:2003和ISO11898-5:2007标准。
  • 在CAN FD快速相位下，即使数据速率高达5Mbit/s，环路延迟对称性时序也能实现可靠的通信
  • 适用于12V和24V系统
  • 低电磁辐射(EME)和高电磁抗扰性(EMI)
  • VIO输入允许直接连接3V和5V微控制器
  • SPLIT电压输出用于稳定隐性总线电平
  • 只听模式用于节点诊断和故障遏制(failure containment)
  • 提供SO14和HVSON14封装
  • 无引脚HVSON14封装(3.0mmx4.5mm)，增强了自动光学检测(AOI)功能
  • 获得AEC-Q100认证
  • “深绿色”产品(无卤素且符合有害物质限制(RoHS)规范)

低功耗管理

  • 待机和睡眠模式的电流消耗极低，具有本地和远程唤醒功能
  • 使整个节点掉电但仍支持本地和远程唤醒功能
  • 唤醒源识别
  • 当VBAT不存在时，收发器会从总线断开(零负载)
  • 在所有电源条件下，功能行为均可预测

保护和诊断(检测和信令)

  • 总线引脚具备较高的ESD处理能力
  • 在汽车环境中对总线引脚和VBAT提供抗瞬态保护
  • 发送数据(TXD)主导超时功能，带诊断功能
  • TXD至RXD短路处理程序，带诊断功能
  • 热保护与诊断
  • VCC、VIO和VBAT引脚欠压检测与回复
  • 总线线路短路诊断
  • 总线主导钳位诊断
  • 冷启动诊断(首次电池连接)

对比表

型号 新一代产品推荐
TJA1043T，112 TJA1443AT/0Z
TJA1043T，118 TJA1443AT/0Z
TJA1043T/1J TJA1443AT/0Z
TJA1043TK/1Y TJA1443ATK/0Z
TJA1043TKY TJA1443ATK/0Z
