高速CAN收发器

TJA1050
不推荐用于新设计

滚动图片以放大

TJA1050是控制器区域网络(CAN)协议控制器和物理总线之间的接口。该器件为总线提供差分发射能力并为CAN控制器提供差分接收能力。

TJA1050是PCA82C250和PCA82C251之后的第三代Philips高速CAN收发器。最重要的区别是：

  • 由于CANH和CANL输出信号的最佳匹配，电磁辐射变得更低
  • 改善了节点未通电时的性能
  • 无待机模式。

这使TJA1050非常适合用在部分供电网络中处于节电模式的节点。

产品详情

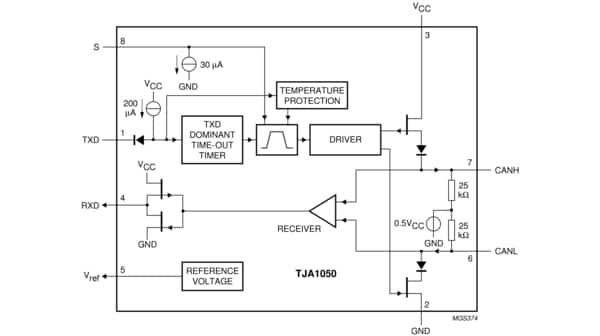

框图

TJA1050T Block Diagram

TJA1050T Block Diagram
获取框图PDF

特征

  • 完全兼容ISO 11898标准
  • 高速(最大1 MBaud)
  • 电磁辐射(EME)极低
  • 差分接收器具有宽共模范围，实现了高电磁抗扰性(EMI)
  • 未通电的节点不会干扰总线线路
  • 发送数据(TXD)显性超时功能
  • 静默模式中发送器被禁用
  • 在汽车环境中对总线引脚提供抗瞬态保护
  • 输入电平兼容3.3 V和5 V器件
  • 热保护
  • 对电池和接地具有短路保护
  • 至少可连接110个节点。
