域控制器的安全系统基础芯片，符合ASIL B和D等级

FS86
正常供应

滚动图片以放大

FS86器件系列与FS84/85系列软件兼容，扩展了域控制器应用的电源能力、安全集成和系统可扩展性，可满足ADAS和电气化中的多MCU需求。

FS86包含多个开关模式和线性稳压器，带故障安全输出，增强安全功能。这使得它成为安全型系统的一个完整部分，达到ASIL B/D安全等级。

该系列是BYLINK系统电源平台的一部分，同时恩智浦还发布了与FS86安全电源管理系列相关的新关键环节。

FS86 SBC属于一个完整的器件系列，在电源和安全性方面具有可扩展性，引脚到引脚和软件兼容性。它是遵循ISO26262标准开发的，并符合AEC-Q100要求。

如需样品，请订购：MFS8613BMDA0ES

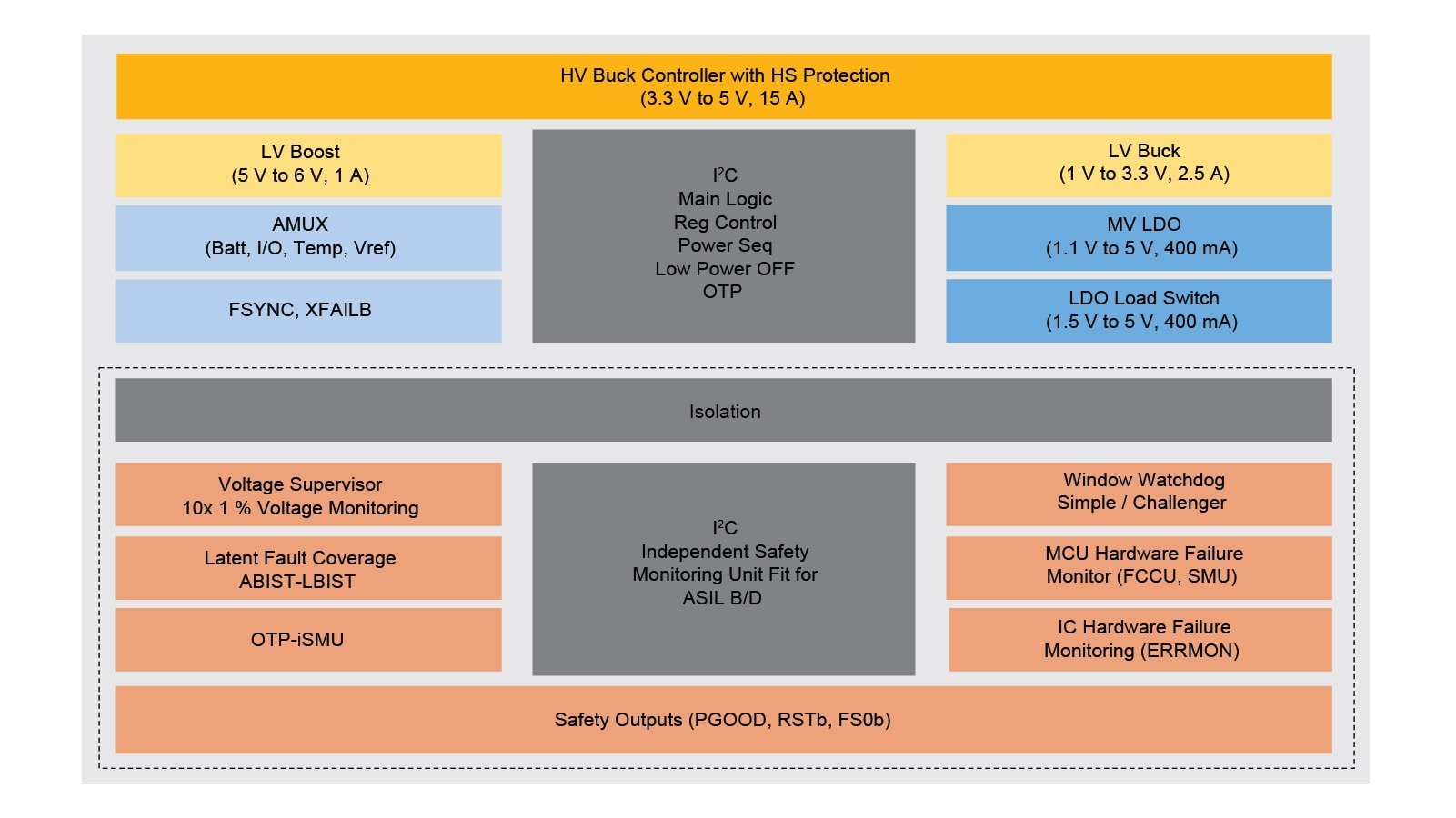

框图

FS86, 功能安全SBC框图

FS86, Safety SBC Block Diagram
获取框图PDF

特性

电源管理

  • DC最大输入电压为60V
  • 高达15A高压降压，带电子熔丝保护
  • 多个开关模式稳压器以及LDO稳压器和升压
  • 低功耗关闭模式(LPOFF)，睡眠电流非常低(10uA)

系统解决方案

  • 通过XFAILB引脚增强的主/从上电顺序管理
  • 两个用于唤醒检测的输入引脚，3.3V兼容和电池电压感应能力
  • 可节省空间和降低复杂性的系统：AMUX
  • 外部前置稳压器短路保护(BAT_SW)
  • 供电、排序和特定功能可由一次性可编程(OTP)存储器来编程
  • 为满足部分MCU合规性，上电期间可选10ms RSTB释放延迟
  • 通过带有8位CRC的32位I²C接口进行设备控制
  • 开关稳压器的电磁兼容(EMC)优化技术，包括扩频、压摆率控制和手动频率调谐

功能安全

  • 多达10个电压监测，精度为+/-1%
  • 可扩展的产品组合，涵盖汽车安全等级(ASIL) B到D
  • 在系统运行时启用潜在故障监测：按需ABIST
  • 微控制器监测专用接口
  • Simple看门狗和Challenger看门狗功能
  • 带潜在故障检测机制的安全输出(RSTB、FS0B)

配置和支持

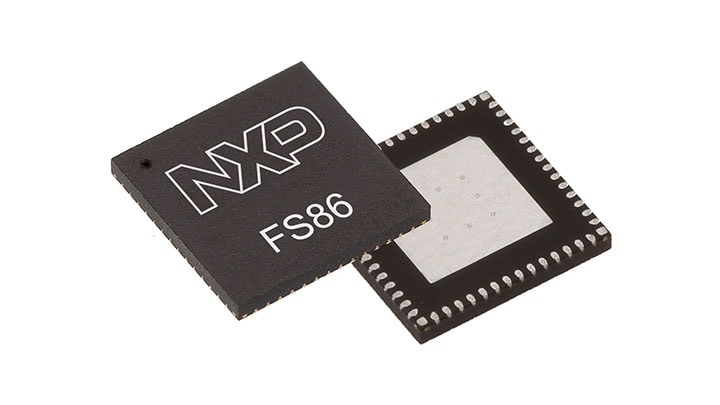

  • 具有裸露焊盘的QFN48引脚可优化散热管理
  • 通过一次性编程(OTP)存储器进行永久设备定制
  • 用于系统开发和评估的临时OTP模拟模式

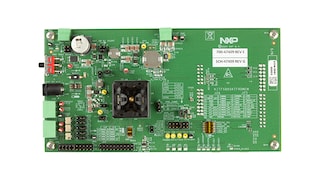

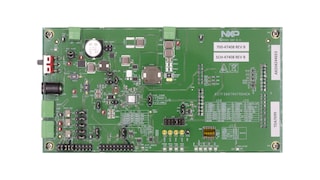

  • 即买即用的硬件和软件

样品供货情况

  • 如需样品，请订购：MFS8613BMDA0ES

产品长期供货计划

更多

对比表

可扩展的电源和安全概念

产品 电池网络 VSUP最大额定值 VPRE 升压 降压 LDO VMON 看门狗 FCCU ERRMON FIN
FS8600 24V 60V 有 有 无 2 4 有 [1] 有 有 有
FS8601 6
FS8602 8
FS8603 10 无 [2]
FS8610 有 4 有
FS8611 6
FS8612 8
FS8613 10 无 [2]
FS8620 12V 36V 有 有 无 2 4 有 [1] 有 有 有
FS8621 6
FS8622 8
FS8623 10 无 [2]
FS8630 有 4 有
FS8631 6
FS8632 8
FS8633 10 无 [2]

[1] ASIL B：Simple看门狗。ASIL D：Challenger看门狗。

[2]FIN和VMON9无法同时(在同一引脚)使用。


标准配置

部件编号 描述 OTP ID* 安全等级 封装
MFS8620BMDA8ES S32Z270-DC EVB DC1/DC2/DC4 DA8报告和配置文件 ASIL D QFN48eP

*OTP配置文件嵌入在PDF报告中。
