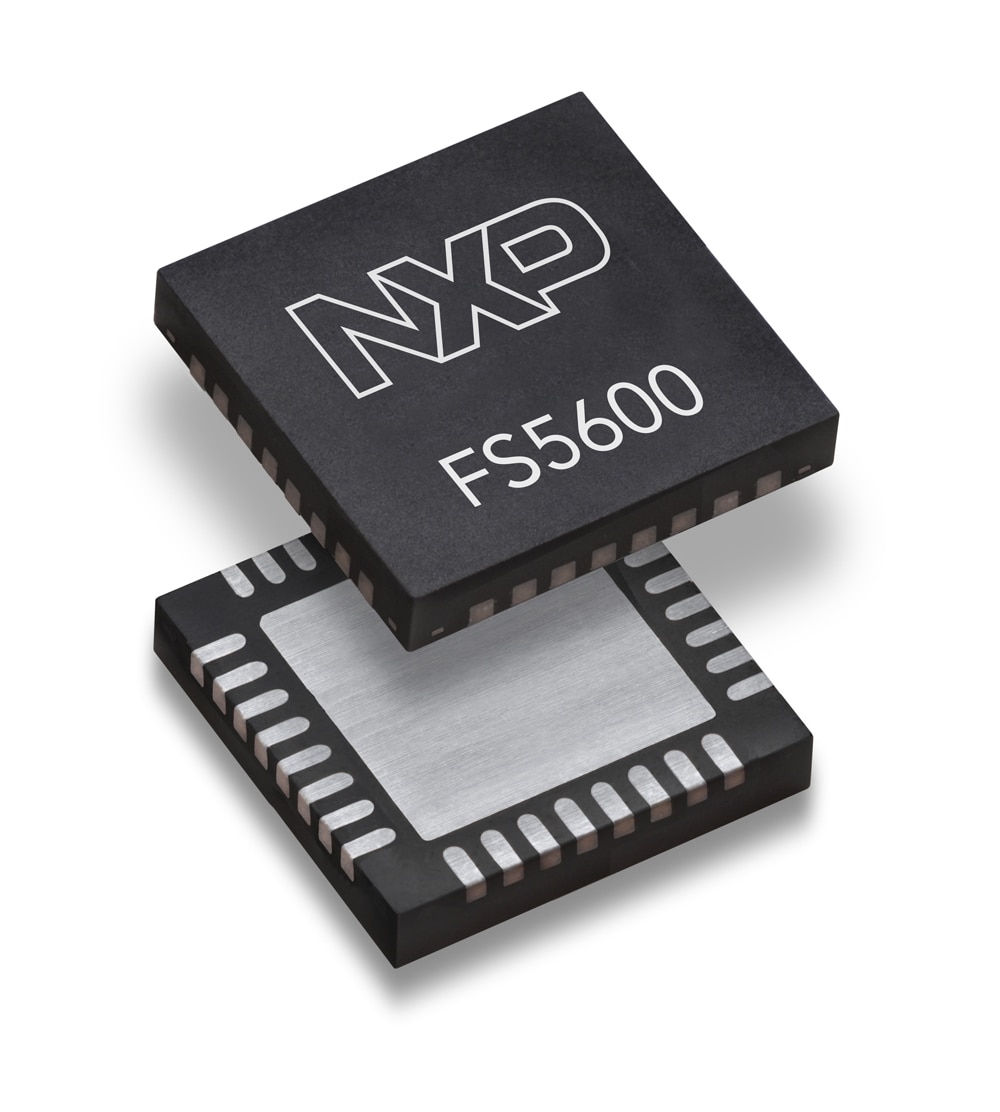

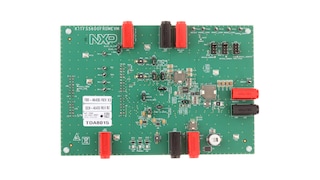

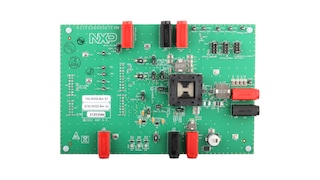

汽车双降压稳压器和控制器，带有电压监测器和看门狗定时器

FS5600
正常供应

滚动图片以放大

汽车用FS56系统基础芯片(SBC)具有一个带外部FET的电池连接DC-DC降压控制器和一个带内部FET的电池连接DC-DC降压控制器。

此外，它还提供功能安全功能，如独立电压监测器、窗口化看门狗定时器、通过ERRMON和FCCU进行I/O监测以及内置自检。FS56提供QM、ASIL B和增强型ASIL B版本。

FS56提供高度可配置的通用输入/输出，可与PF8x、PF7x和PF5x系列的PF PMIC无缝运行。

FS56为汽车提供了一种优化的架构，具有低功耗模式和最小化EMC影响功能，如扩频、频率调谐和同步。

框图

FS56结构框图

FS56 Block Diagram
获取框图PDF

特性

电源管理

  • 两个高压降压转换器：
  • 高压降压控制器——外部FET——负载最高15A
  • 3A高压降压稳压器——内部FET——η=93%@3A
  • 输出精度为+/- 2%
  • 250kHz至3MHz的开关频率
  • 高效PFM模式（700uW静态功率）

系统特性

  • 双独立DC/DC降压
  • GPIO可与PF PMIC无缝运行
  • 额定温度范围：-40°C至150°C TJ

安全特性(ASIL B)

  • 符合ASIL B安全等级要求
  • 两个内部和4个外部电压监测器
  • 窗口化看门狗定时器
  • PGOOD和FS0B输出
  • ABIST和LBIST
  • SoC硬件监测引脚（FCCU和ERRMON）

可编程

  • 供电、排序和特定功能可由一次性可编程(OTP)存储器来编程
  • 可在数据手册的“订购信息”一章找到支持主流MCU的标准预定义OTP
  • 可以提供定制OTP进行生产。请联系恩智浦销售渠道（恩智浦或代理商）
  • 可以使用恩智浦GUI软件工具创建自定义OTP

产品长期供货计划

  • 该产品包含在恩智浦产品长期供货计划中，为您的嵌入式设计确保产品的供货稳定性。汽车目标市场衍生产品被纳入15年供货计划中，工业目标市场衍生产品被纳入10年供货计划中。

对比表

汽车设备选项

部件编号 目标市场 安全等级 OTP ID
MFS5600AMMA0ES 汽车电子 QM A0-Non-programmed
MFS5600AMBA0ES 汽车电子 ASIL B A0-Non-programmed
MFS5600AMEA0ES 汽车电子 增强型ASIL B A0-Non-programmed
MFS5600AMMA7ES 汽车电子 QM A7 – SW1 =5.0V，SW2 =3.3V
MFS5600A7ES-OTP-Report
MFS5600AMMA8ES 汽车电子 QM A8 – SW1 =3.3V，SW2 =5.0V
MFS5600A8ES-OTP-Report
MFS5600AMBAFES 汽车电子 ASIL B AF – SW1 =3.3V，SW2 =5.0V
MFS5600AMBAFES-OTP-Report
MFS5600AMMABES 汽车电子 QM AB – SW1 =5.0V，SW2 =5.0V
MFS5600AMMABES-OTP-Report

面向工业的设备选项

部件编号 目标市场 安全等级 OTP ID
MFS5600AVNA0EP 工业 QM A0-Non-programmed
MFS5600AVMABEP 工业 QM AB – SW1 =5.0V，SW2 =5.0V
MFS5600AVMABEP-OTP-Report
MFS5600AVMADEP 工业 QM AD – SW1 =3.3V，SW2 =3.3V
MFS5600AVMADEP-OTP-Report
MFS5600AVMAEEP 工业 QM AE – SW1 =5.5V，SW2 =5.0V
MFS5600AVMAEEP-OTP-Report
