采用微型高速CAN系统基础芯片实现局部联网

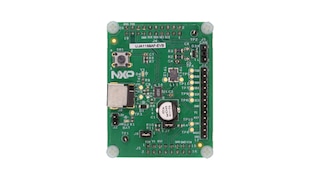

UJA1168ATK
正常供应

UJA1168ATK是微型高速CAN系统基础芯片(SBC)，包含符合ISO 11898-2:2016和SAE J2284-1到SAE J2284-5标准的HS-CAN收发器，支持高达5Mbit/s的CAN FD和用于微控制器的5 V/100 mA电源。它还具有看门狗和串行外设接口(SPI)。

  • UJA1168ATK可在极低电流待机和睡眠模式下工作，通过选择性唤醒功能支持符合CAN局部网络。
  • UJA1168ATK和UJA1168ATK/F版本包含用于控制外部稳压器的电池相关型高压输出(INH)，而UJA1168ATK/X和UJA1168ATK/XF都配备了5 V传感器电源(VEXT)。
  • 名为“FD-passive”的局部网络协议的专门实施已经嵌入到UJA1168ATK/F和UJA1168ATK/XF版本中。
  • 一些配置设置存储在非易失性存储器中，使SBC可适用于特定应用。

框图

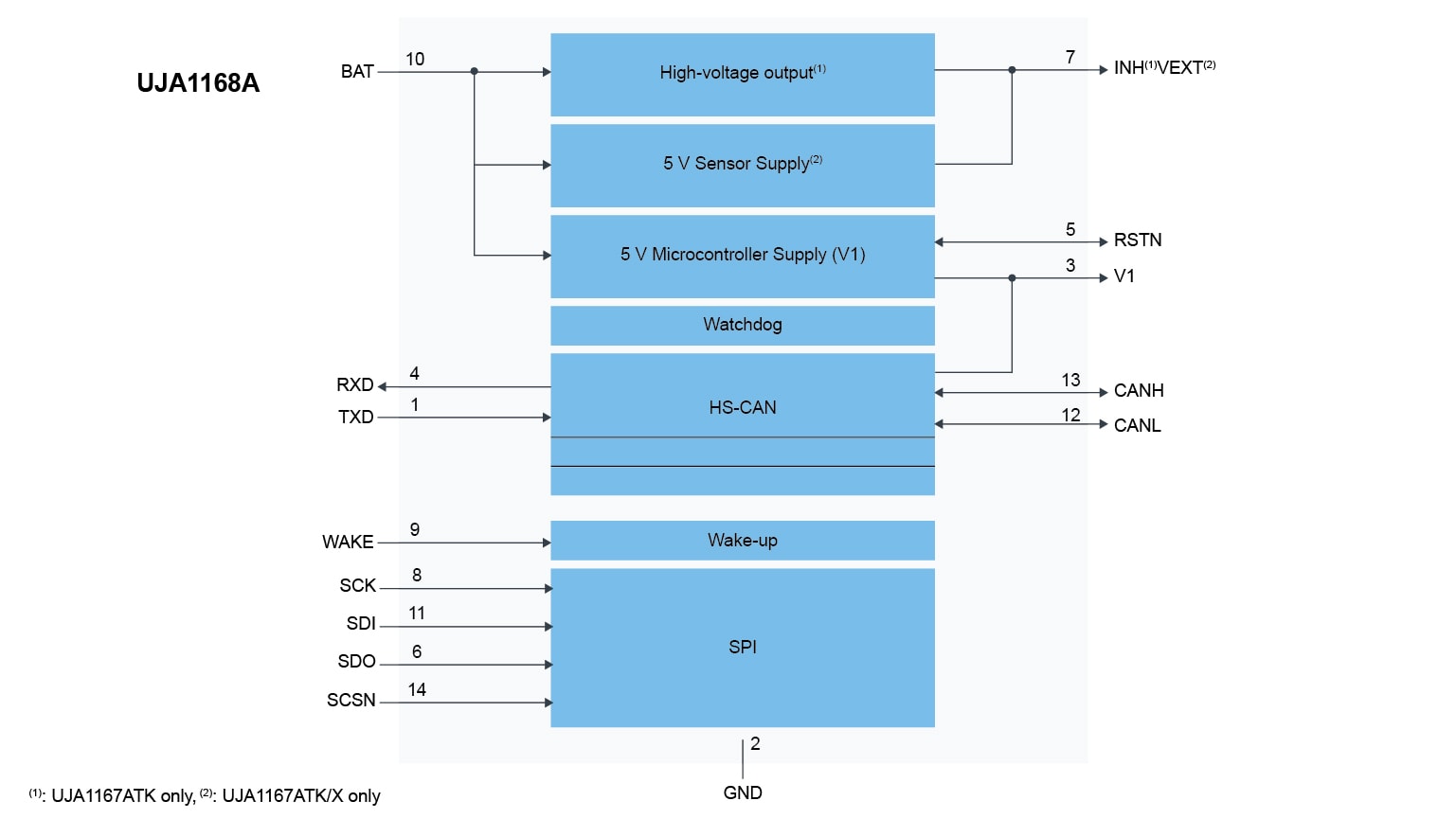

UJA1168ATK Block Diagram

UJA1168ATK Block Diagram
获取框图PDF

对比表

特性
可订购类型 待机模式 睡眠模式 VIO LDO (5 V) SPI 看门狗 INH 5 V外接电源 局部联网 CAN FD Active CAN FD Passive
UJA1161ATK/0 X 内部用作自供电CAN 5 Mbps
UJA1162ATK/0 X X X 内部用作自供电CAN INH 5 Mbps
UJA1163ATK/0 X 100 mA 5 Mbps
UJA1164ATK/0 X 100 mA X X 5 Mbps
UJA1166ATK/0 X X X 100 mA INH 5 Mbps
UJA1167ATK/0 X X 100 mA X X INH 5 Mbps
UJA1167ATK/X/0 X X 70 mA X X 5 V/ 30 mA 5 Mbps
UJA1168ATK/0 X X 100 mA X X INH X 5 Mbps
UJA1168ATK/X/0 X X 70 mA X X 5 V/ 30 mA X 5 Mbps
UJA1168ATK/F/0 X X 100 mA X X INH X 5 Mbps X
UJA1168ATK/XF/0 X X 70 mA X X 5 V/ 30 mA X 5 Mbps X

购买/参数

1 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

电源电压[最小]（V）

电源电压[最大]（V）

保护

额外功能——模拟

封装类型

UJA1168ATK
数据手册

正常供应

3

28

TXD dominant timeout, overtemperature, undervoltage

CAN FD Passive, CAN SBC with 5 V/100 mA LDO, Partial Networking, SPI, Sensor Supply, Watchdog

HVSON14

N true 0 PSPUJA1168ATKzh 5 包装信息 Packing Information t935 1 封装信息 Package Information t790 1 支持信息 Supporting Information t531 1 数据手册 Data Sheet t520 1 简介 Fact Sheet t523 1 zh zh zh 数据手册 Data Sheet 1 1 UJA1168ATK 1.0 English UJA1168A, Mini high-speed CAN system basis chip for partial networking 1568989092271724396628 PSP 871.1 KB None None documents None 1568989092271724396628 /docs/en/data-sheet/UJA1168A.pdf 871127 /docs/en/data-sheet/UJA1168A.pdf UJA1168A documents N N 2019-09-20 UJA1168A, Mini high-speed CAN system basis chip for partial networking /docs/en/data-sheet/UJA1168A.pdf /docs/en/data-sheet/UJA1168A.pdf Data Sheet N 980000996212993340 2024-01-19 pdf N en Aug 23, 2019 980000996212993340 Data Sheet Y N UJA1168A, Mini high-speed CAN system basis chip for partial networking 简介 Fact Sheet 1 2 0 English The TJA1145A high speed CAN and CAN FD transceiver and UJA1168A system basis chip, let manufacturers reap the benefits of partial networking (PN). They optimize power consumption and help increase energy efficiency in conventional cars and new electric vehicles. 1593789458303733583110 PSP 265.0 KB None None documents None 1593789458303733583110 /docs/en/fact-sheet/TJA1145AUJA1168AFS.pdf 264976 /docs/en/fact-sheet/TJA1145AUJA1168AFS.pdf TJA1145AUJA1168AFS documents N N 2020-07-03 TJA1145A HS-CAN / CAN-FD Transceiver and UJA1168A SBC for Partial Networking /docs/en/fact-sheet/TJA1145AUJA1168AFS.pdf /docs/en/fact-sheet/TJA1145AUJA1168AFS.pdf Fact Sheet N 736675474163315314 2024-01-23 pdf N en Jul 3, 2020 736675474163315314 Fact Sheet Y N TJA1145A HS-CAN / CAN-FD Transceiver and UJA1168A SBC for Partial Networking 封装信息 Package Information 1 3 1.1 English Plastic, thermal enhanced very thin small outline package 1455079299396712532501 PSP 133.9 KB None None documents None 1455079299396712532501 /docs/en/package-information/SOT1086-2.pdf 133873 /docs/en/package-information/SOT1086-2.pdf SOT1086-2 documents N N 2018-12-07 Plastic, thermal enhanced very thin small outline package; no leads; 14 terminals /docs/en/package-information/SOT1086-2.pdf /docs/en/package-information/SOT1086-2.pdf Package Information N 302435339416912908 2024-01-23 pdf N en Jun 10, 2016 302435339416912908 Package Information Y N Plastic, thermal enhanced very thin small outline package; no leads; 14 terminals 包装信息 Packing Information 1 4 1.1 English 1442131820206710980308 PSP 158.0 KB None None documents None 1442131820206710980308 /docs/en/packing/SOT1086-2_431.pdf 158020 /docs/en/packing/SOT1086-2_431.pdf SOT1086-2_431 documents N N 2015-06-26 HVSON14 Reel sulfur barrier pack, SMD, 13 Q1/T1 standard product orientation /docs/en/packing/SOT1086-2_431.pdf /docs/en/packing/SOT1086-2_431.pdf Packing Information N 145666923842250347 2024-01-23 pdf N en Jun 26, 2015 145666923842250347 Packing Information Y N HVSON14 Reel sulfur barrier pack, SMD, 13 Q1/T1 standard product orientation 支持信息 Supporting Information 1 5 1.0 English Supports UJA1164ATK, UJA1167ATK, UJA1168ATK and UJA1169ATK devices 1622730651218712631833 PSP 38.5 KB None None documents None 1622730651218712631833 /docs/en/supporting-information/UJA116XATK-CRC-CALCULATOR.xlsx 38532 /docs/en/supporting-information/UJA116XATK-CRC-CALCULATOR.xlsx UJA116XATK-CRC-CALCULATOR documents N N 2021-06-03 UJA116xATK CRC Calculator /docs/en/supporting-information/UJA116XATK-CRC-CALCULATOR.xlsx /docs/en/supporting-information/UJA116XATK-CRC-CALCULATOR.xlsx Supporting Information N 371282830530968666 2024-02-13 xlsx N en Jun 3, 2021 371282830530968666 Supporting Information Y N UJA116xATK CRC Calculator false 0 UJA1168ATK downloads zh-Hans true 1 Y PSP Y Y 包装信息 1 /docs/en/packing/SOT1086-2_431.pdf 2015-06-26 1442131820206710980308 PSP 4 Jun 26, 2015 Packing Information None /docs/en/packing/SOT1086-2_431.pdf English documents 158020 None 145666923842250347 2024-01-23 N /docs/en/packing/SOT1086-2_431.pdf HVSON14 Reel sulfur barrier pack, SMD, 13 Q1/T1 standard product orientation /docs/en/packing/SOT1086-2_431.pdf documents 145666923842250347 Packing Information N en None Y pdf 1.1 N N HVSON14 Reel sulfur barrier pack, SMD, 13 Q1/T1 standard product orientation 158.0 KB SOT1086-2_431 N 1442131820206710980308 封装信息 1 /docs/en/package-information/SOT1086-2.pdf 2018-12-07 1455079299396712532501 PSP 3 Jun 10, 2016 Package Information Plastic, thermal enhanced very thin small outline package None /docs/en/package-information/SOT1086-2.pdf English documents 133873 None 302435339416912908 2024-01-23 N /docs/en/package-information/SOT1086-2.pdf Plastic, thermal enhanced very thin small outline package; no leads; 14 terminals /docs/en/package-information/SOT1086-2.pdf documents 302435339416912908 Package Information N en None Y pdf 1.1 N N Plastic, thermal enhanced very thin small outline package; no leads; 14 terminals 133.9 KB SOT1086-2 N 1455079299396712532501 支持信息 1 /docs/en/supporting-information/UJA116XATK-CRC-CALCULATOR.xlsx 2021-06-03 1622730651218712631833 PSP 5 Jun 3, 2021 Supporting Information Supports UJA1164ATK, UJA1167ATK, UJA1168ATK and UJA1169ATK devices None /docs/en/supporting-information/UJA116XATK-CRC-CALCULATOR.xlsx English documents 38532 None 371282830530968666 2024-02-13 N /docs/en/supporting-information/UJA116XATK-CRC-CALCULATOR.xlsx UJA116xATK CRC Calculator /docs/en/supporting-information/UJA116XATK-CRC-CALCULATOR.xlsx documents 371282830530968666 Supporting Information N en None Y xlsx 1.0 N N UJA116xATK CRC Calculator 38.5 KB UJA116XATK-CRC-CALCULATOR N 1622730651218712631833 数据手册 1 /docs/en/data-sheet/UJA1168A.pdf 2019-09-20 1568989092271724396628 PSP 1 Aug 23, 2019 Data Sheet UJA1168A, Mini high-speed CAN system basis chip for partial networking None /docs/en/data-sheet/UJA1168A.pdf English documents 871127 None 980000996212993340 2024-01-19 N /docs/en/data-sheet/UJA1168A.pdf UJA1168A, Mini high-speed CAN system basis chip for partial networking /docs/en/data-sheet/UJA1168A.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1.0 N N UJA1168A, Mini high-speed CAN system basis chip for partial networking UJA1168ATK 871.1 KB UJA1168A N 1568989092271724396628 简介 1 /docs/en/fact-sheet/TJA1145AUJA1168AFS.pdf 2020-07-03 1593789458303733583110 PSP 2 Jul 3, 2020 Fact Sheet The TJA1145A high speed CAN and CAN FD transceiver and UJA1168A system basis chip, let manufacturers reap the benefits of partial networking (PN). They optimize power consumption and help increase energy efficiency in conventional cars and new electric vehicles. None /docs/en/fact-sheet/TJA1145AUJA1168AFS.pdf English documents 264976 None 736675474163315314 2024-01-23 N /docs/en/fact-sheet/TJA1145AUJA1168AFS.pdf TJA1145A HS-CAN / CAN-FD Transceiver and UJA1168A SBC for Partial Networking /docs/en/fact-sheet/TJA1145AUJA1168AFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 0 N N TJA1145A HS-CAN / CAN-FD Transceiver and UJA1168A SBC for Partial Networking 265.0 KB TJA1145AUJA1168AFS N 1593789458303733583110 true Y Products
