带有高速CAN接口的第二代系统基础芯片

MC33904
正常供应

恩智浦MC33904是第二代系统基础芯片系列中的一款器件，集成了多种性能和增强型模块设计。

  • 作为高级电源管理单元，适用于MCU和附加集成电路，例如传感器和CAN收发器
  • 内置增强型高速CAN接口(ISO11898-2和-5)，具有局部和总线故障诊断、保护功能以及故障安全操作模式
  • 该SBC可包含0、1或2个LIN2.1接口，与LIN输出引脚开关连接，并包含2个或者3个唤醒输入引脚，可配置为输出驱动器以实现灵活性。

查看产品图片

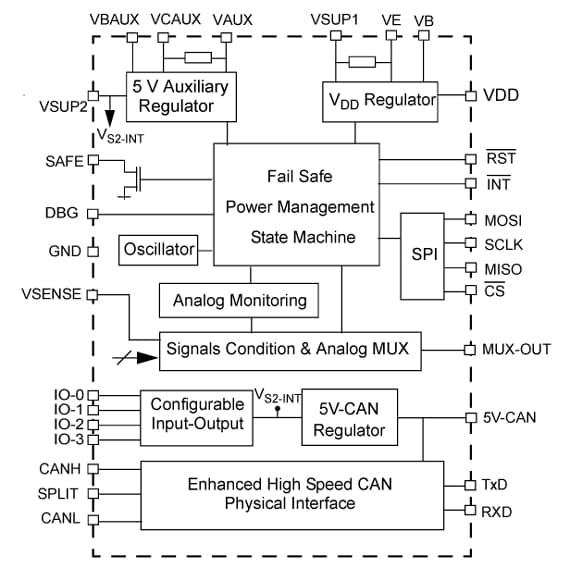

框图

Freescale MC33904 Battery Management Block Diagram

MC33904 Battery Management Block Diagram
获取框图PDF

功能

主要特性

  • MCU稳压器，5.0 V或者3.3 V，零件编号可选择，能够使用外部PNP来扩展电流功能，共同分担功率损耗
  • 电压，电流和温度保护
  • 低功耗模式下非常低的静态电流
  • 完全受保护的嵌入式5.0 V 稳压器，用于CAN驱动器
  • 多重欠压检测，用来识别不同的MCU规格和系统运行模式(即起动)
  • 辅助5.0 V 或者3.3 V SPI可配置稳压器，用于附加IC，具有过流检测和欠压保护功能
  • MUX输出引脚，用于器件内部模拟信号监测和电源监测
  • 高级SPI，MCU，ECU电源以及关键引脚诊断和监测。
  • 低功耗模式下的多个唤醒源： CAN总线， I/O 转换，自动定时器，SPI信息和VDD过流监测。
  • 兼容ISO11898-5高速CAN接口，支持40 Kb/s至1.0 Mb/s的波特率

产品长期供货计划

  • 该产品包含在恩智浦产品长期供货计划中，确保为您的嵌入式设计提供稳定的产品供应。MC33904包含在15年产品长期供货计划中
