技术

符合1级和0级安全标准的电源系统基础芯片，带有CAN灵活数据收发器

FS4500
正常供应

滚动图片以放大

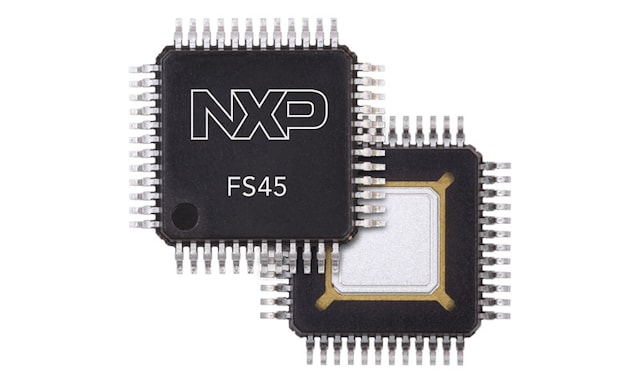

FS45系统基础芯片(SBC)能够为MCU供电，并通过DC/DC前置稳压器、线性稳压器和超低功耗节能模式来优化能耗。特性：

  • 针对ASIL B或D应用的高级功能安全措施
  • 可用于控制和诊断MCU的串行外设接口(SPI)
  • 集成了CAN FD和LIN物理接口，符合ISO 11898-2、-5、LIN 2.2、2.1/J2602-2标准以及针对EMC和ESD的最新汽车OEM标准
  • 一系列集成的安全功能，例如关键模拟参数监测、一个故障安全状态机和一个高级看门狗，使用双核锁步MCU能够降低软件复杂性
  • 能够耐受高温(TA=150°C，TJ=175°C)，符合AECQ100 0级汽车标准

框图

FS4500故障静默SBC，带DCDC，支持ASIL B/D

FS4500 Fail Silent SBC with DCDC, ASIL B/D ready
获取框图PDF

特性

MC33FS4500xxx(1级汽车)特性

  • MC33FS4500xxx符合1级汽车标准(TA=125°C，TJ=150°C)
  • 电池电压感应和MUX输出引脚
  • 高度灵活的SMPS前置稳压器，支持两种拓扑：非反相升降压和标准降压
  • 为MCU内核提供1.0V至5.0V电压的器件系列，SMPS为0.8A、1.5A或2.2A。或LDO为0.5A
  • 最大输入工作电压为36V
  • 专门用于辅助功能或为传感器供电的线性稳压器(VCCA追踪器或独立)，5.0V或3.3V
  • 专门用于MCU A/D参考电压或为I/O供电的线性稳压器(VCCA)，5.0V或3.3V
  • 3.3V在低功耗模式下可保活存储器电源
  • 持续时间长的定时器，1.0秒的分辨率可计数6个月
  • *低功耗模式有多个唤醒源：CAN、LIN、IO和LDT(持续时间较长的定时器)
  • 5个可配置的I/O
  • MC33FS4500xxx数据手册

MC35FS4500xxx(0级汽车)特性

  • 能够耐受高温(TA=150°C，TJ=175°C)，符合AECQ100 0级汽车标准
  • 电池电压感应和MUX输出引脚
  • 高度灵活的SMPS前置稳压器，支持两种拓扑：非反相升降压和标准降压
  • 为MCU内核提供1.0V至5.0V电压的器件系列，SMPS为0.8A或1.5A，或LDO为0.5A
  • 专门用于辅助功能或为传感器供电的线性稳压器(VCCA追踪器或独立)，5.0V或3.3V
  • 专门用于MCU A/D参考电压或为I/O供电的线性稳压器(VCCA)，5.0V或3.3V
  • 3.3V在低功耗模式下可保活存储器电源
  • 持续时间长的定时器，1.0秒的分辨率可计数6个月
  • 低功耗模式有多个唤醒源：CAN、IO和LDT(持续时间较长的定时器)
  • 5个可配置的I/O
  • MC35FS4500xxx简要数据手册。

产品长期供货计划

对比表

仅适用于ASIL B的推荐超集

部件编号 FS1B [1] LDT [2] CAN LIN 首选超集PN，带线性VCORE 首选超集PN，带DC-DC VCORE
FS45/FS65x5NAE 无 无 无 无 FS4507L或FS4508C FS6527L或FS6528C
FS45/FS65x5CAE 无 无 有 无 FS4507L或FS4508C FS6527L或FS6528C
FS45/FS65x5KAE 无 无 无 有 FS4507L FS6527L
FS45/FS65x5LAE 无 无 有 有 FS4507L FS6527L
FS45/FS65x6NAE 有 无 无 无 FS4508C FS6528C
FS45/FS65x6CAE 有 无 有 无 FS4508C FS6528C
FS45/FS65x7NAE 无 有 无 无 FS4507L或FS4508C FS6527L或FS6528C
FS45/FS65x7CAE 无 有 有 无 FS4507L或FS4508C FS6527L或FS6528C
FS45/FS65x7KAE 无 有 无 有 FS4507L FS6527L
FS45/FS65x7LAE 无 有 有 有 FS4507L FS6527L
FS45/FS65x8NAE 有 有 无 无 FS4508C FS6528C
FS45/FS65x8CAE 有 有 有 无 FS4508C FS6528C

[1]次级安全输出LIN和FS1B功能是互斥的。这种区别是通过部件编号区分的。LIN可用时，FS1B不可用，反之亦然。

[2]持续时间较长的定时器。

仅适用于ASIL D的推荐超集

部件编号 FS1B [1] LDT [2] VKAM开启 CAN LIN 首选超集PN，带线性VCORE 首选超集PN，带DC-DC VCORE
FS45/FS65x0NAE 无 无 按SPI 无 无 MC33FS4502LAE MC33FS6522LAE
FS45/FS65x0CAE 无 无 按SPI 有 无
FS45/FS65xOLAE 无 无 按SPI 有 有
FS45/FS65x1NAE 有 无 按SPI 无 无 MC33FS4503CAE MC33FS6523CAE
FS45/FS65x1CAE 有 无 按SPI 有 无
FS45/FS65x2NAE 无 有 按SPI 无 无 MC33FS4502LAE MC33FS6522LAE
FS45/FS65x2CAE 无 有 按SPI 有 无
FS45/FS65x2LAE 无 有 按SPI 有 有
FS45/FS65x3NAE 有 有 按SPI 无 无 MC33FS4503CAE MC33FS6523CAE
FS45/FS65x3CAE 有 有 按SPI 有 无
FS65x4LAE 无 有 默认 有 有 - MC33FS6524LAE

[1]次级安全输出LIN和FS1B功能是互斥的。这种区别是通过部件编号区分的。LIN可用时，FS1B不可用，反之亦然。

[2]持续时间较长的定时器。

购买/参数

1-10 / 39 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装类型

AEC-Q100 Temperature Range

ASIL Certification

Additional Features - Security

额外功能——模拟

Ambient Operating Temperature (Min to Max) (℃)

器件功能

诊断

支持的MCU

线性/LDO稳压器数量

Number of Boost Regulators

Number of Buck Regulators

保护

输出电流（A）

样品特别供货

输入电压[最小到最大]（V）

Recommended Superset

MC33FS4500CAE
数据手册

正常供应

HLQFP48

grade 1

up to ASIL C, up to ASIL D

1x Fail-safe output, Challenger Watchdog, External IC monitoring, FCCU monitoring, Reset Output, UV/OV Monitoring

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

-40 to 125

SMPS, linear regulators, system basis chip

SPI

S32K1

4

1

1

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

0.5

Y

2.7 to 40

—

MC33FS4500LAE
数据手册

正常供应

HLQFP48

grade 1

up to ASIL C, up to ASIL D

1x Fail-safe output, Challenger Watchdog, External IC monitoring, FCCU monitoring, Reset Output, UV/OV Monitoring, Yes

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

-40 to 125

SMPS, linear regulators, system basis chip

SPI

S32K1

4

1

1

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

0.5

Y

2.7 to 40

—

MC33FS4500NAE
数据手册

正常供应

HLQFP48

grade 1

up to ASIL C, up to ASIL D

1x Fail-safe output, Challenger Watchdog, External IC monitoring, FCCU monitoring, Reset Output, UV/OV Monitoring

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

-40 to 125

SMPS, linear regulators, system basis chip

SPI

S32K1

4

1

1

overcurrent, overtemperature, overvoltage, short-circuit, undervoltage

0.5

Y

2.7 to 40

—

MC33FS4501CAE
数据手册

正常供应

HLQFP48

grade 1

up to ASIL C, up to ASIL D

2x Fail-safe output, Challenger Watchdog, External IC monitoring, FCCU monitoring, Reset Output, Safe delay, UV/OV Monitoring

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

-40 to 125

SMPS, linear regulators, system basis chip

SPI

S32K1

4

1

1

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

0.5

Y

2.7 to 40

—

MC33FS4501NAE
数据手册

正常供应

HLQFP48

grade 1

up to ASIL C, up to ASIL D

2x Fail-safe output, Challenger Watchdog, External IC monitoring, FCCU monitoring, Reset Output, Safe delay, UV/OV Monitoring

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

-40 to 125

SMPS, linear regulators, system basis chip

SPI

S32K1

4

1

1

overcurrent, overtemperature, overvoltage, short-circuit, undervoltage

0.5

Y

2.7 to 40

—

MC33FS4502CAE
数据手册

正常供应

HLQFP48

grade 1

up to ASIL C, up to ASIL D

1x Fail-safe output, Challenger Watchdog, External IC monitoring, FCCU monitoring, Reset Output, UV/OV Monitoring

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

-40 to 125

SMPS, linear regulators, system basis chip

SPI

S32K1

4

1

1

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

0.5

Y

2.7 to 40

—

MC33FS4502LAE
数据手册

正常供应

HLQFP48

grade 1

up to ASIL C, up to ASIL D

1x Fail-safe output, Challenger Watchdog, External IC monitoring, FCCU monitoring, Reset Output, UV/OV Monitoring, Yes

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

-40 to 125

SMPS, linear regulators, system basis chip

SPI

S32K1

4

1

1

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

0.5

Y

2.7 to 40

—

MC33FS4502NAE
数据手册

正常供应

HLQFP48

grade 1

up to ASIL C, up to ASIL D

1x Fail-safe output, Challenger Watchdog, External IC monitoring, FCCU monitoring, Reset Output, UV/OV Monitoring

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

-40 to 125

SMPS, linear regulators, system basis chip

SPI

S32K1

4

1

1

overcurrent, overtemperature, overvoltage, short-circuit, undervoltage

0.5

Y

2.7 to 40

—

MC33FS4503CAE
数据手册

正常供应

HLQFP48

grade 1

up to ASIL C, up to ASIL D

2x Fail-safe output, Challenger Watchdog, External IC monitoring, FCCU monitoring, Reset Output, Safe delay, UV/OV Monitoring

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

-40 to 125

SMPS, linear regulators, system basis chip

SPI

S32K1

4

1

1

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

0.5

Y

2.7 to 40

—

MC33FS4503NAE
数据手册

正常供应

HLQFP48

grade 1

up to ASIL C, up to ASIL D

2x Fail-safe output, Challenger Watchdog, External IC monitoring, FCCU monitoring, Reset Output, Safe delay, UV/OV Monitoring

bus short-circuit to battery, overcurrent, overcurrent protected bus, overtemperature, overvoltage, short-circuit, undervoltage

-40 to 125

SMPS, linear regulators, system basis chip

SPI

S32K1

4

1

1

overcurrent, overtemperature, overvoltage, short-circuit, undervoltage

0.5

Y

2.7 to 40

—
