S32R41-EVB
正常供应 -

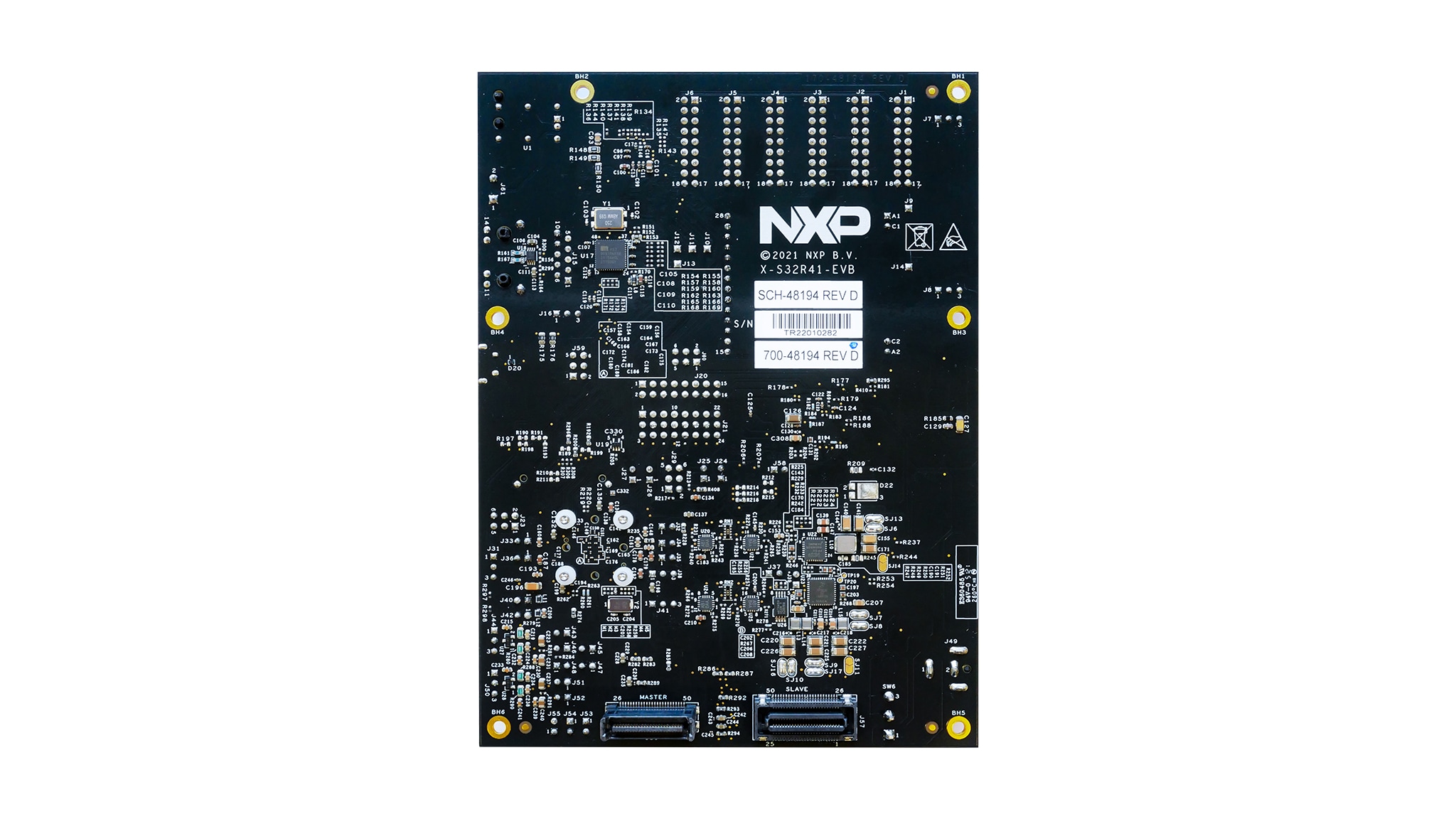

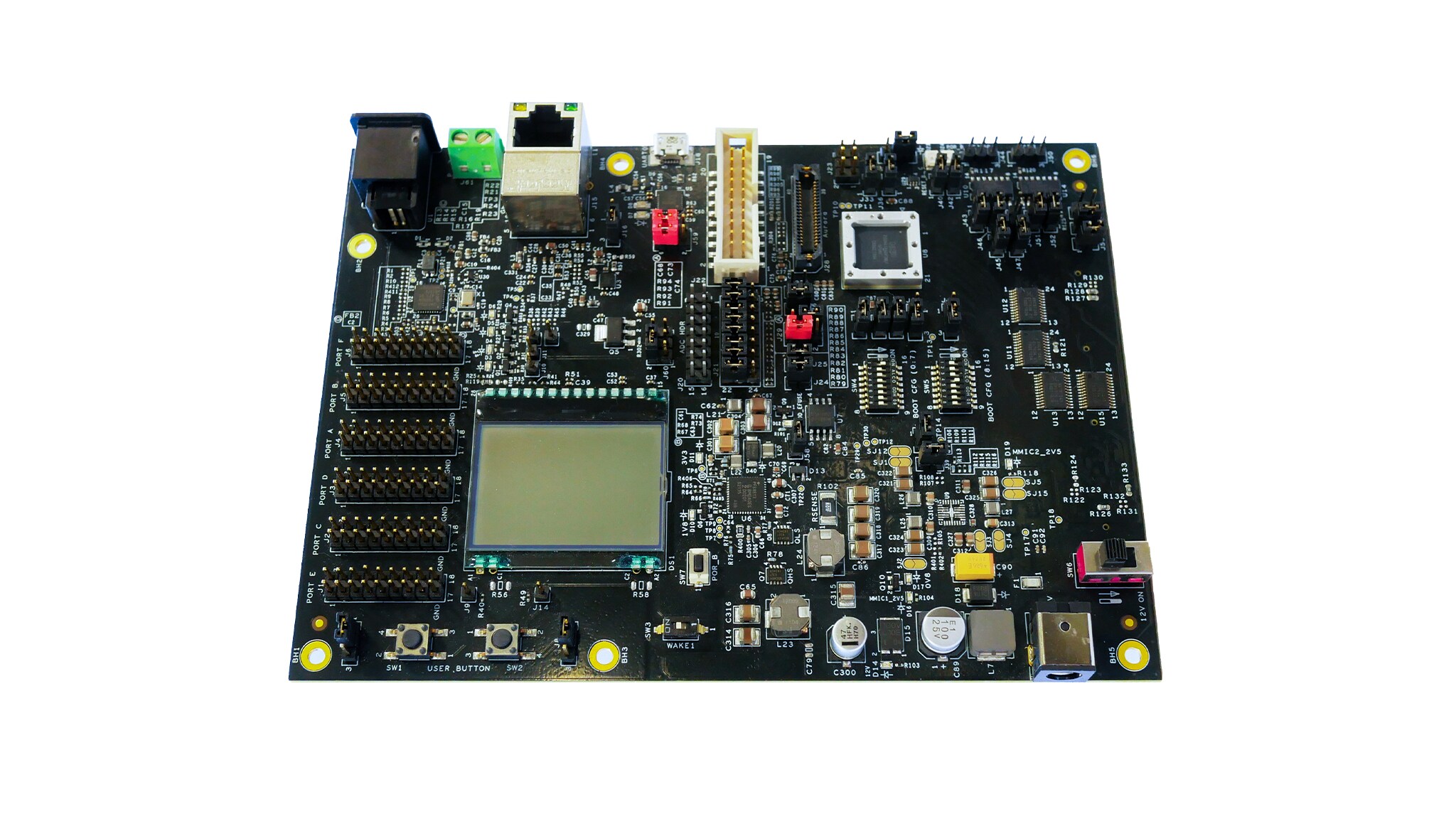

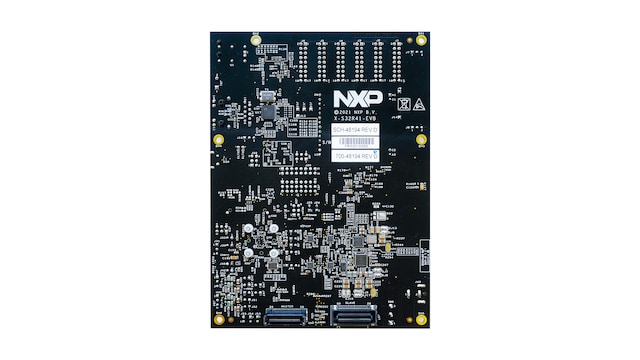

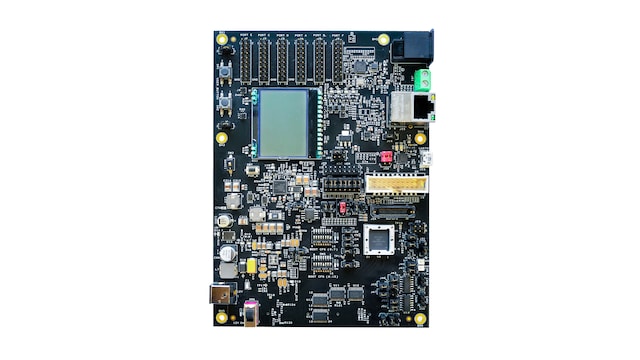

S32R41 Evaluation Board.
Kit contains:
- S32R41-EVB processor board
- Power supply

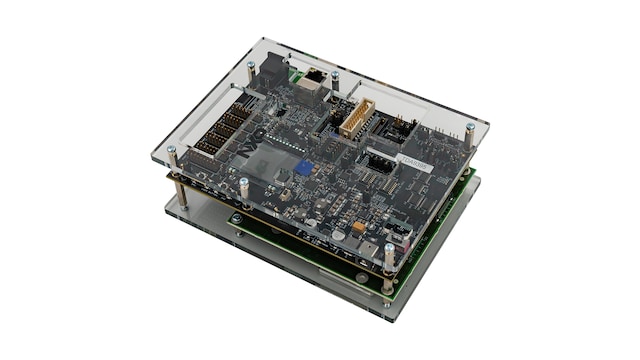

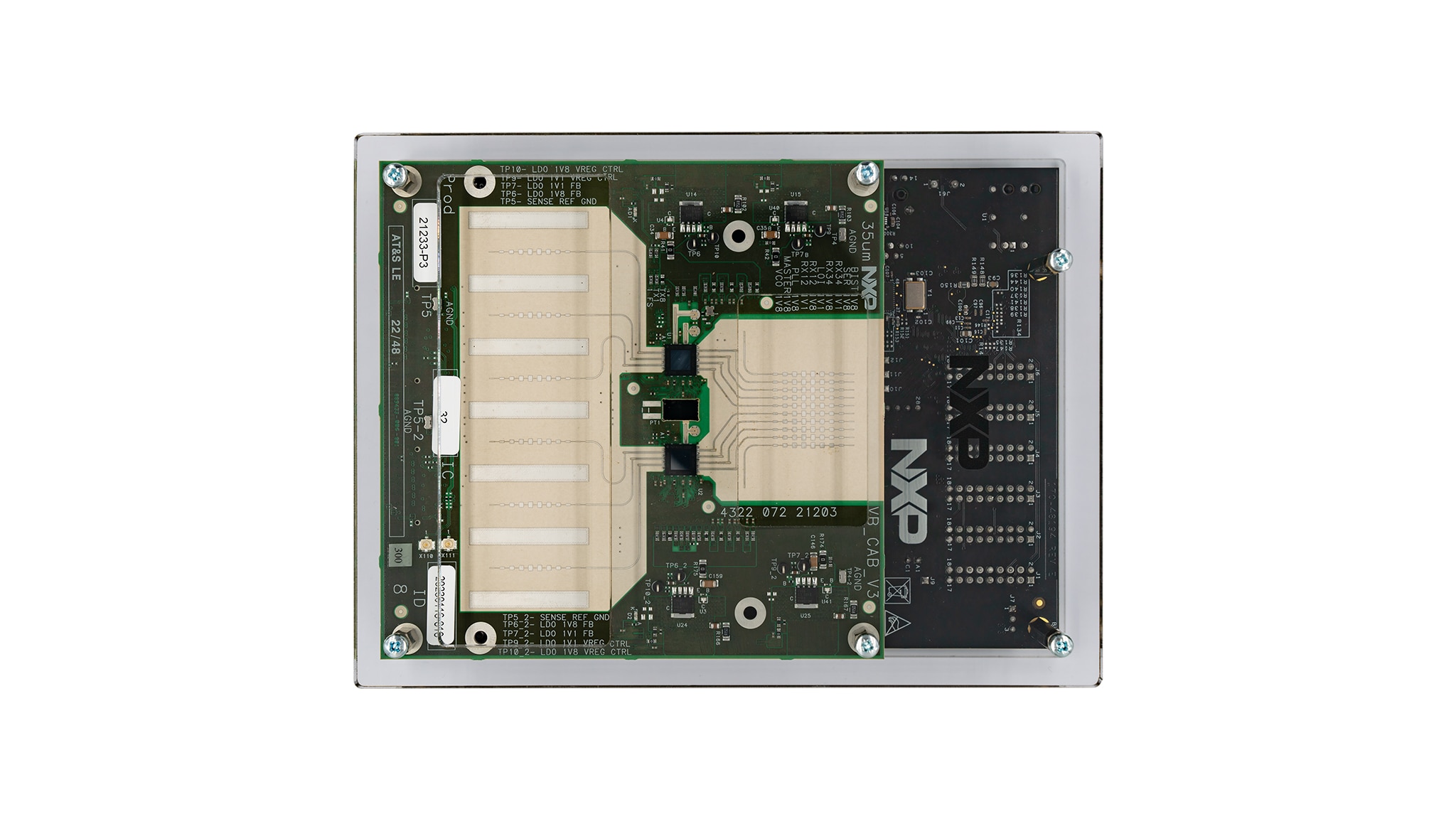

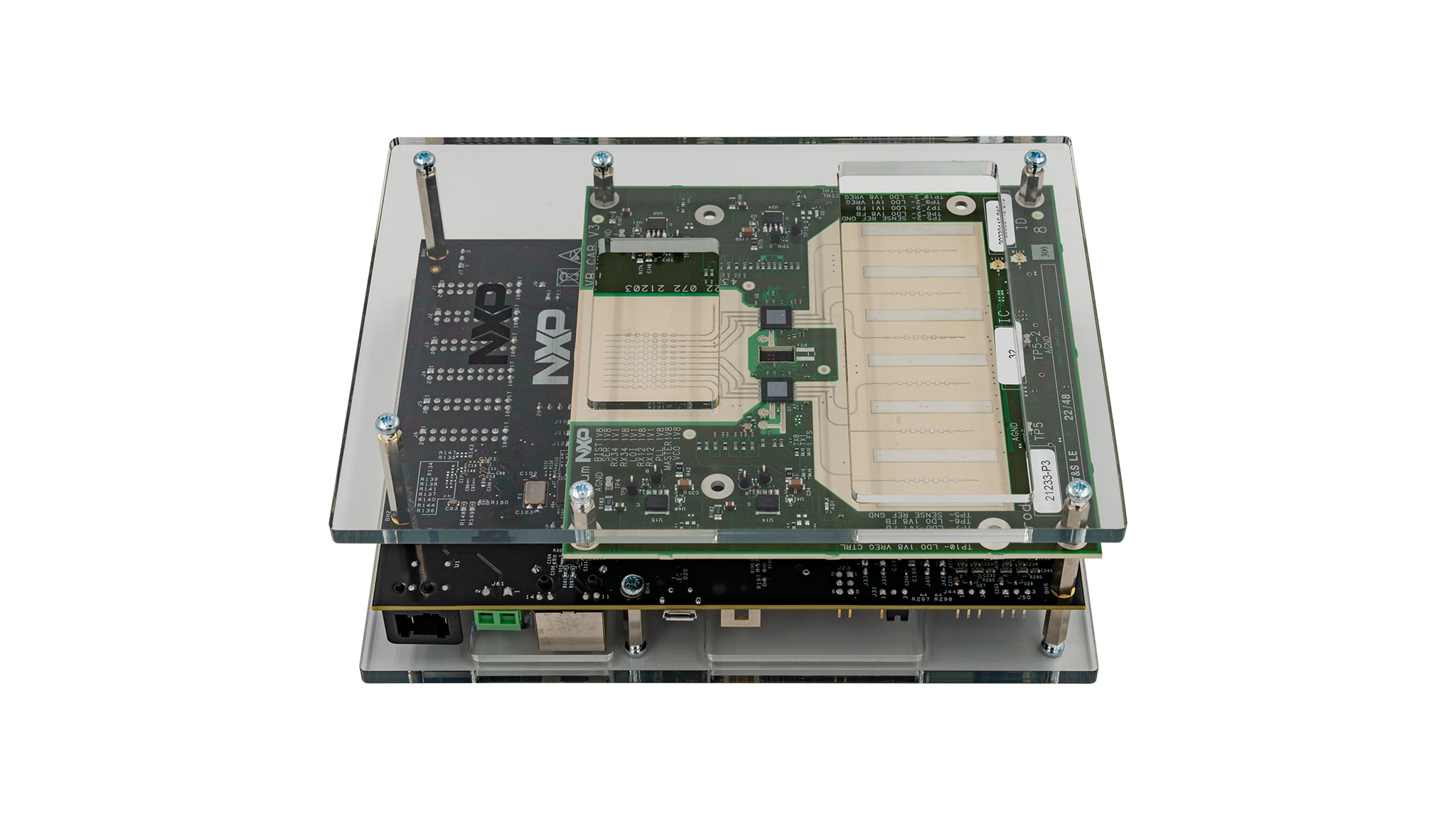

S32R41 and TEF82xx Development Platform Based on S32R41 EVB and TEF82xx CAB
The S32R41 and TEF82xx development platform is designed for enabling users to start radar development quickly and easily by providing an example software project based on the S32R41 evaluation board (EVB) and the TEF82xx customer antenna board (CAB). It integrates several NXP software components, including auto zephyr BSP, radar SDK (RSDK), real-time drivers (RTD), inter-platform communication framework (IPCF) and safety software framework (SAF).
产品详情
支持的器件
接口
3.3V/5V IO CAN收发器
- TJA1043: 具备待机和睡眠模式的高速CAN收发器
汽车以太网PHY
- TJA1103: TJA1103，符合ASIL B安全标准的汽车以太网100BASE-T1 PHY收发器
电源管理
安全SBC
- FS86: 域控制器的安全系统基础芯片，符合ASIL B和D等级
PMIC
- PF5103: 面向汽车应用的多通道（5通道）PMIC：3个LVBUCK和2个LDO，符合ASIL B/D安全等级
处理器和微控制器
S32R雷达处理
- S32R41: 面向高分辨率雷达的S32R41高性能处理器
射频
雷达技术
- TEF82xx: 完全集成的77Ghz RFCMOS汽车雷达收发器

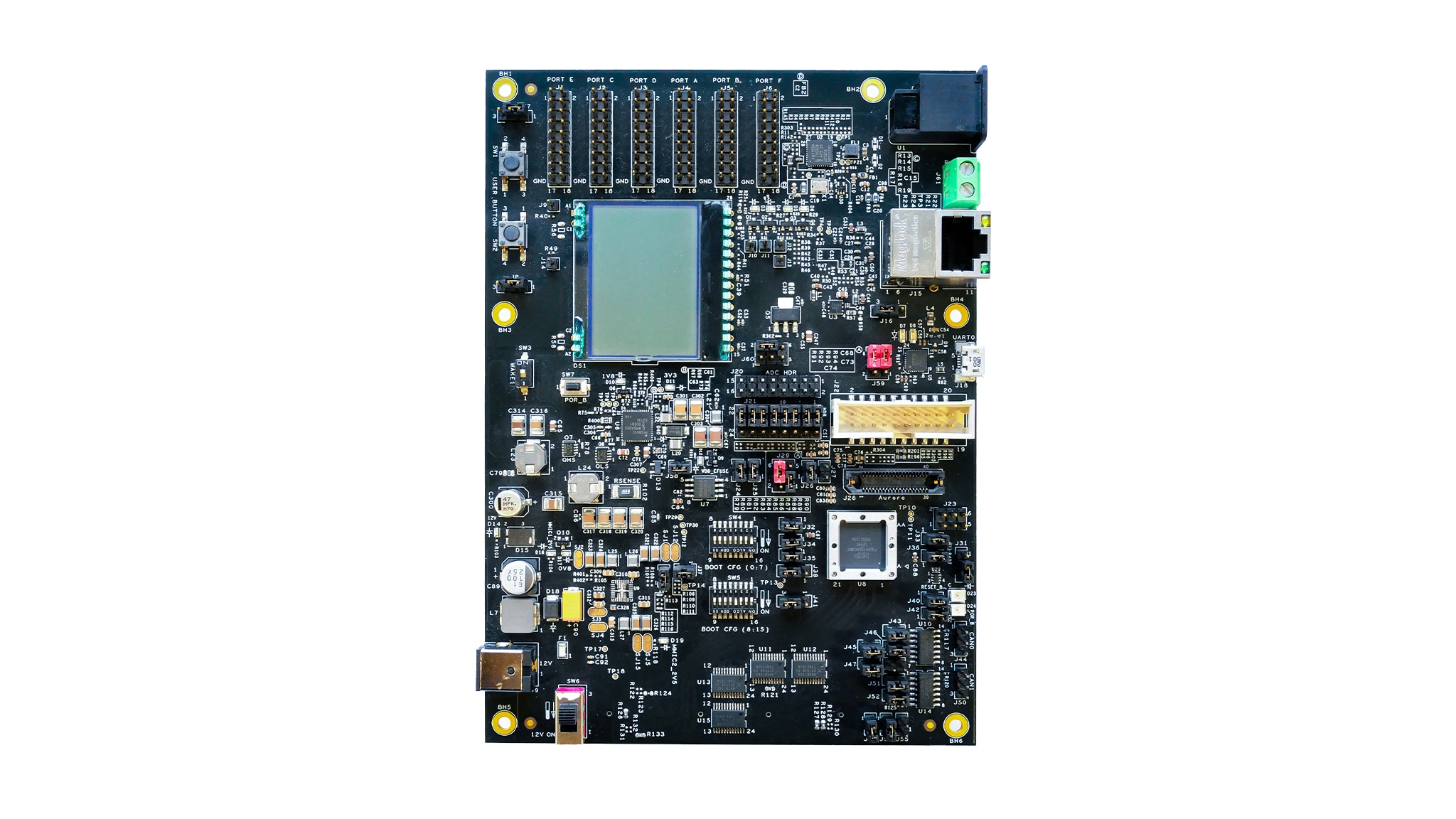

Features
General Features
- S32R41 radar MPU
- Single 12 V external power supply input with necessary EVB and MCU voltages provided by an NXP power management IC (PMIC) solution
- Power supplied to the EVB via a 2.1 mm barrel style power jack; 12 V operation allows in-car use if desired
- Master power switch and regulator status LEDs
- Flexible MCU clocking options allow provision of an external clock via adaptor board (via MIPI-CSI0 connector) or 40 MHz EVB clock oscillator circuit. Solder pads allow selection between these external clocks
- Boot mode selection via switches on board
Memory
- 64 Mb (16 MB) serial NOR flash memory
- 1 Kb EEPROM connected to MCU via I²C
Connectivity
- Standard 20-pin ARM JTAG debug connector and 34-pin nexus aurora connector
- RGMII Gb ethernet physical interface IC, with RJ45 connector
- RMII / MII 100 Mb ethernet physical interface IC with matenet connector
- Two high speed connectors intended for direct use with the TEF820X CAB board
- All MCU signals readily accessible at a port-ordered group of 0.1” pitch headers
- 2x CAN-FD interfaces
- UART to micro USB interface
- 2 user switches and 4 user LEDs, freely connectable
- 64 * 102 character LCD with DSPI interface (DSPI0)
- User reset switch with reset status LED

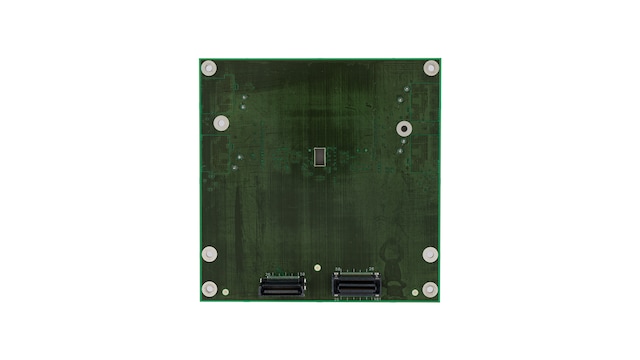

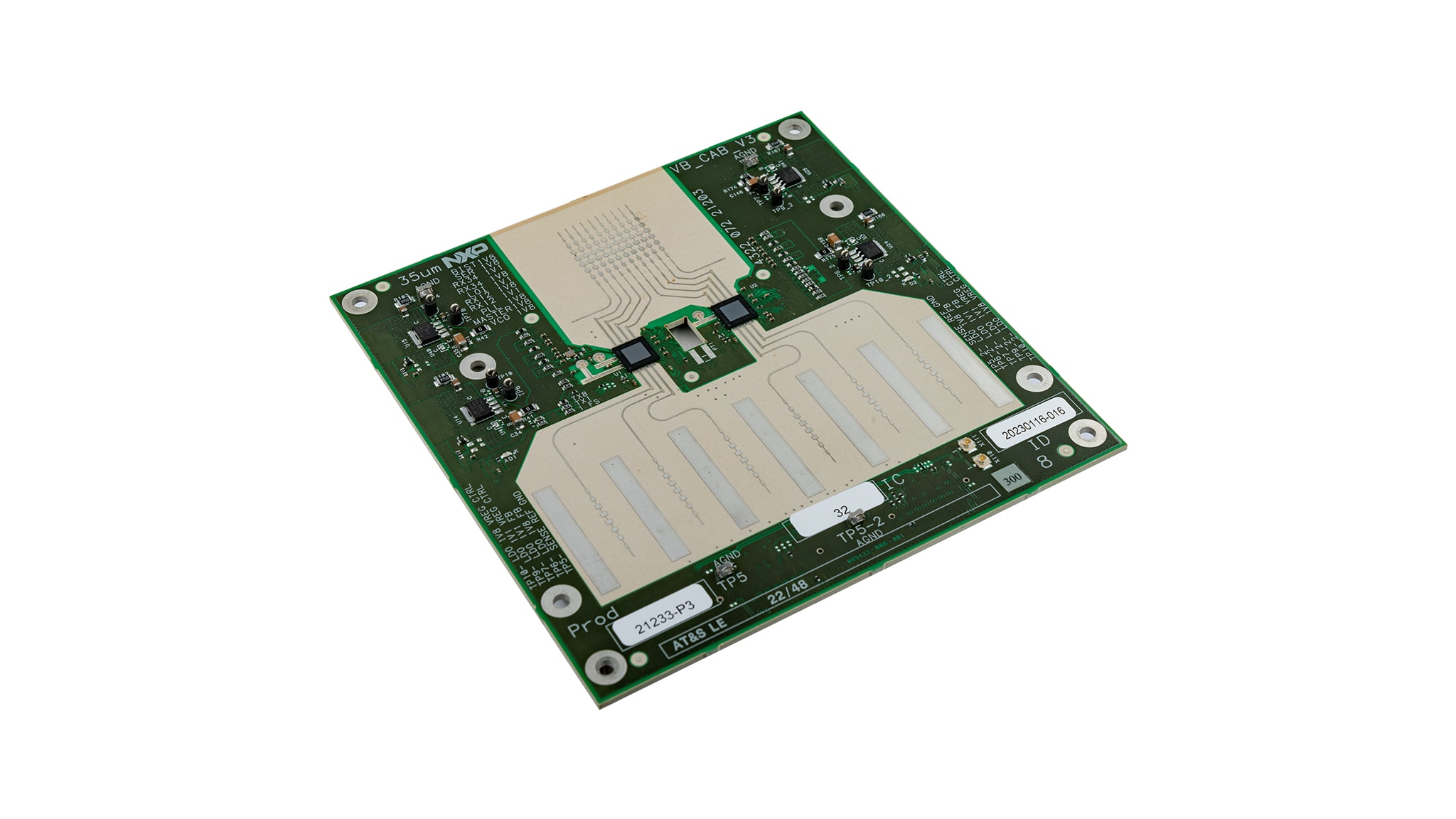

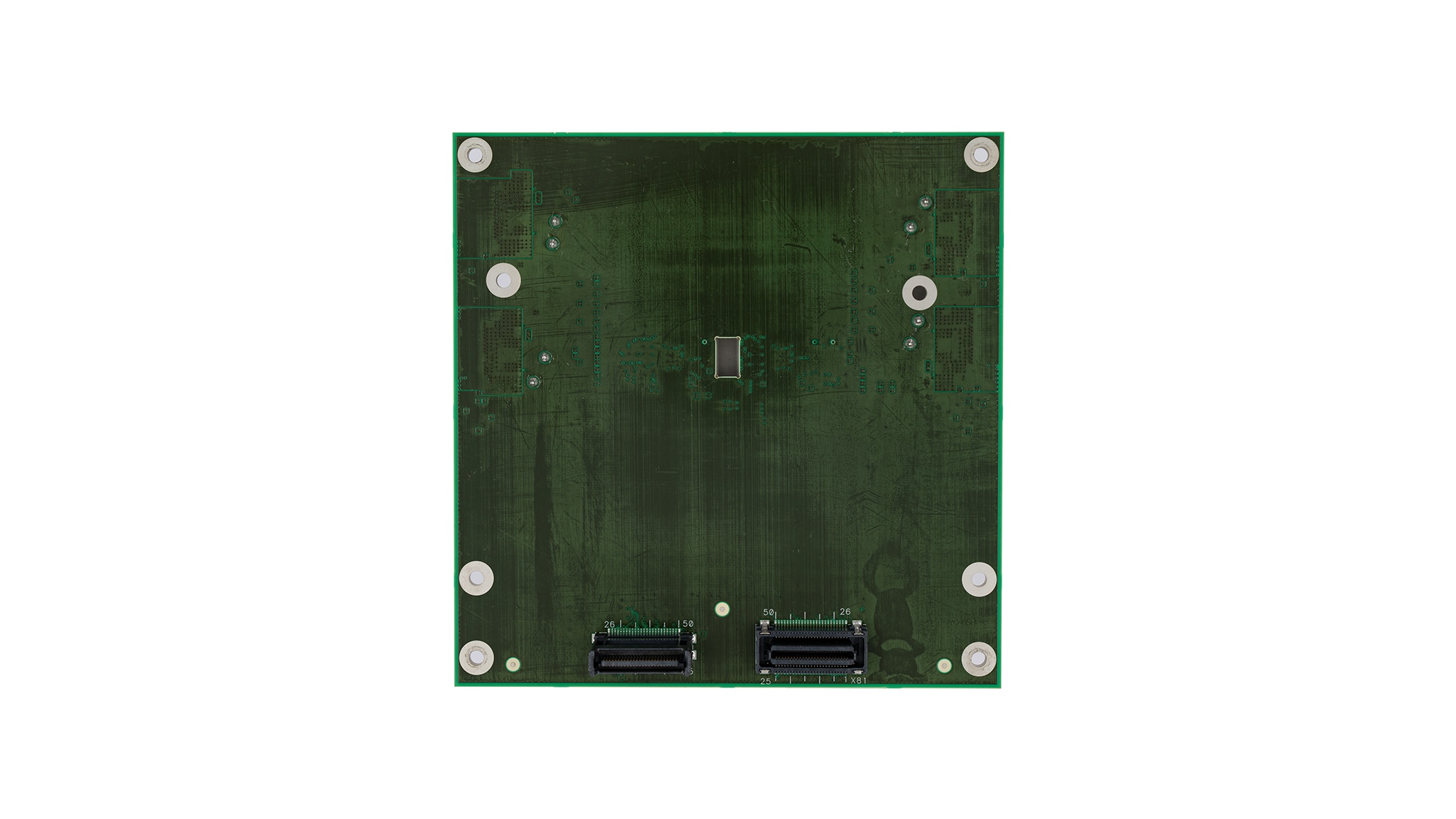

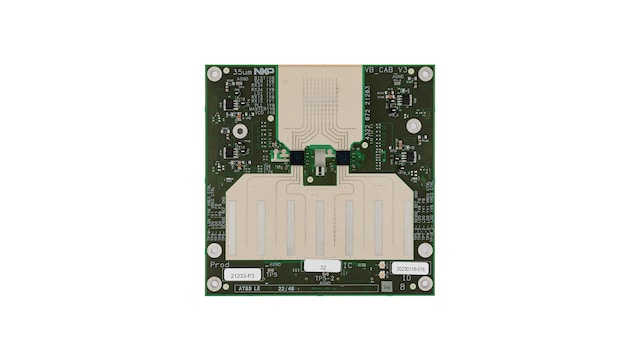

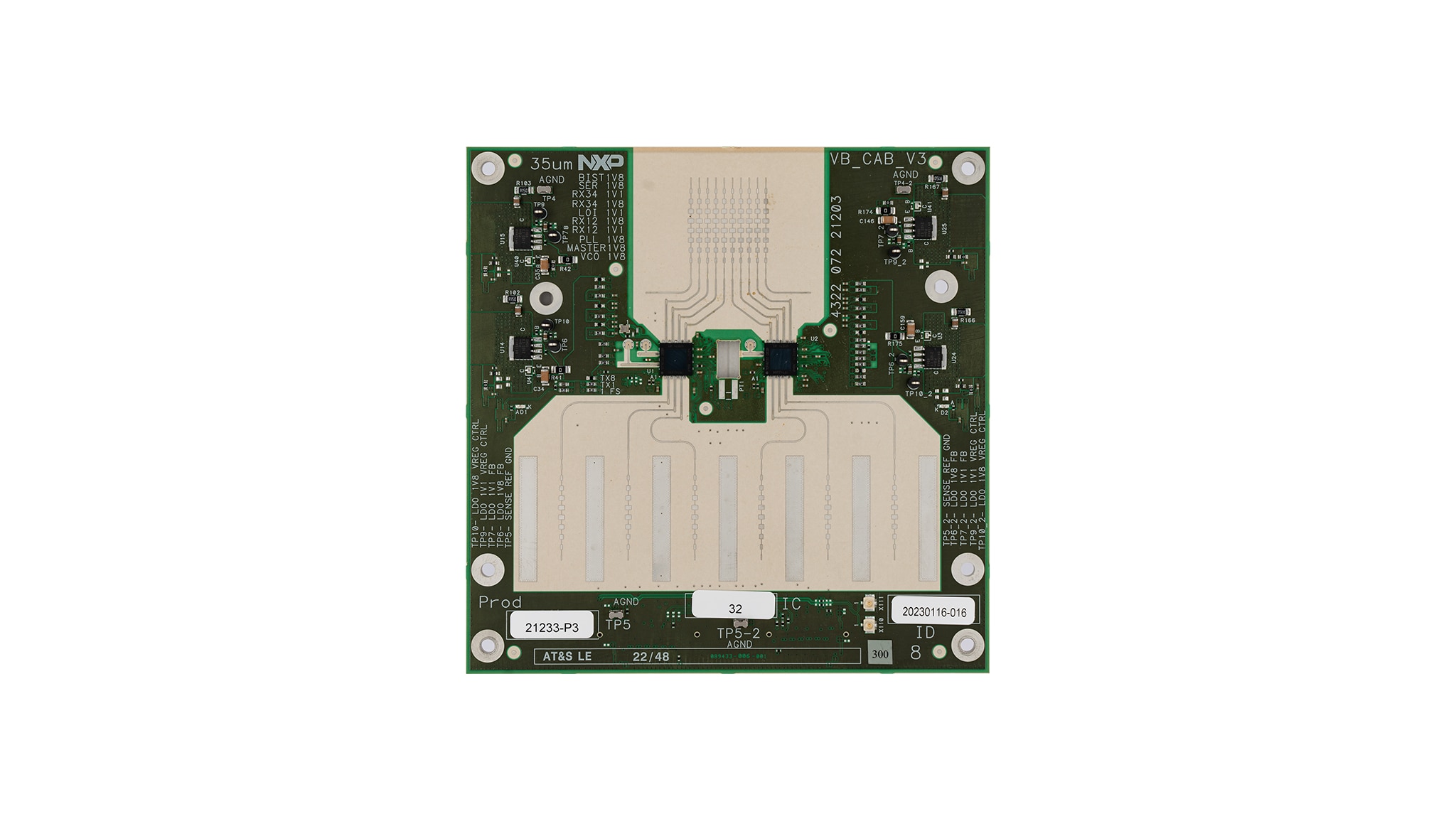

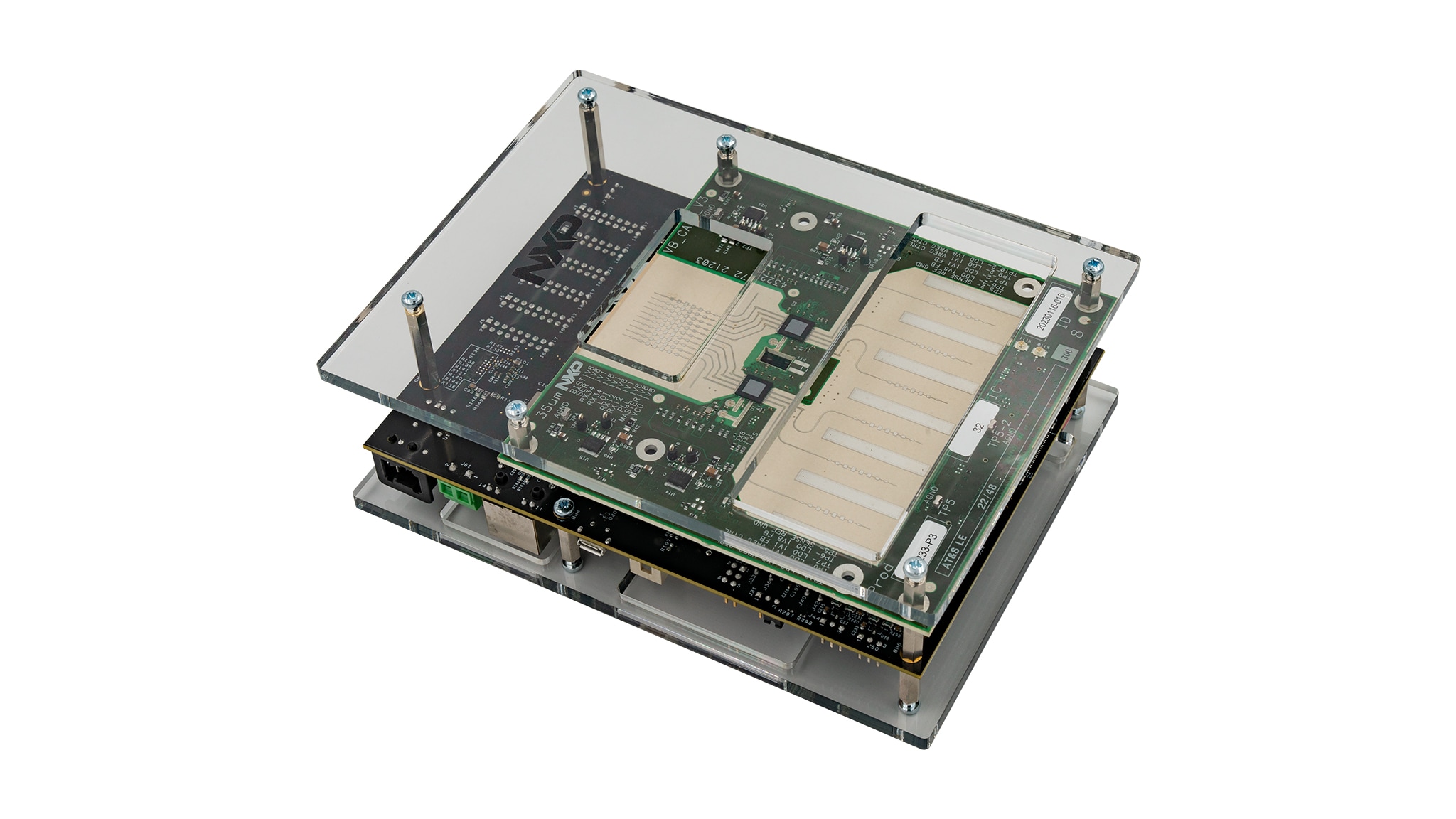

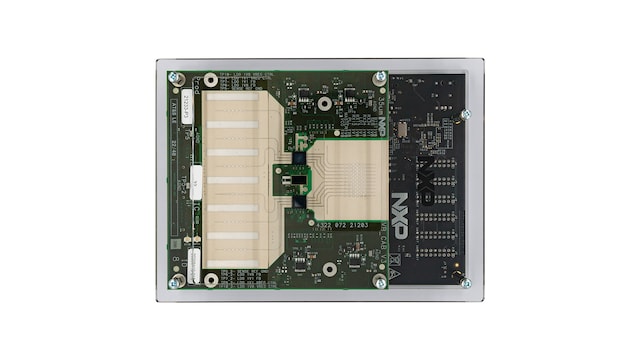

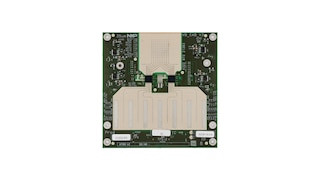

TEF82xx Customer Antenna Board (CAB)
- Dual TEF82xx RF front-end board through different MIPI-CSI2 / SPI joint connectors. Free choice of the two different front ends through a jumper configuration
- RF RX / TX channels wired to 6 Tx x 8 Rx antenna array
- Optimized for 78 GHz operation
购买选项
-
TEF82-R41-KIT
正常供应 -
S32R41 and TEF82xx Development Platform Based on S32R41 EVB and TEF82xx CAB.
Kit contains:
- S32R41 Evaluation Board
- TEF82xx Customer Application Board
- Power Supply
设计资源
软件
快速参考恩智浦 软件类型.
1 软件文件
-
模拟及建模工具
Automotive SW - S32R41 Standard Software - S32R41 + TEF82xx Development Platform
