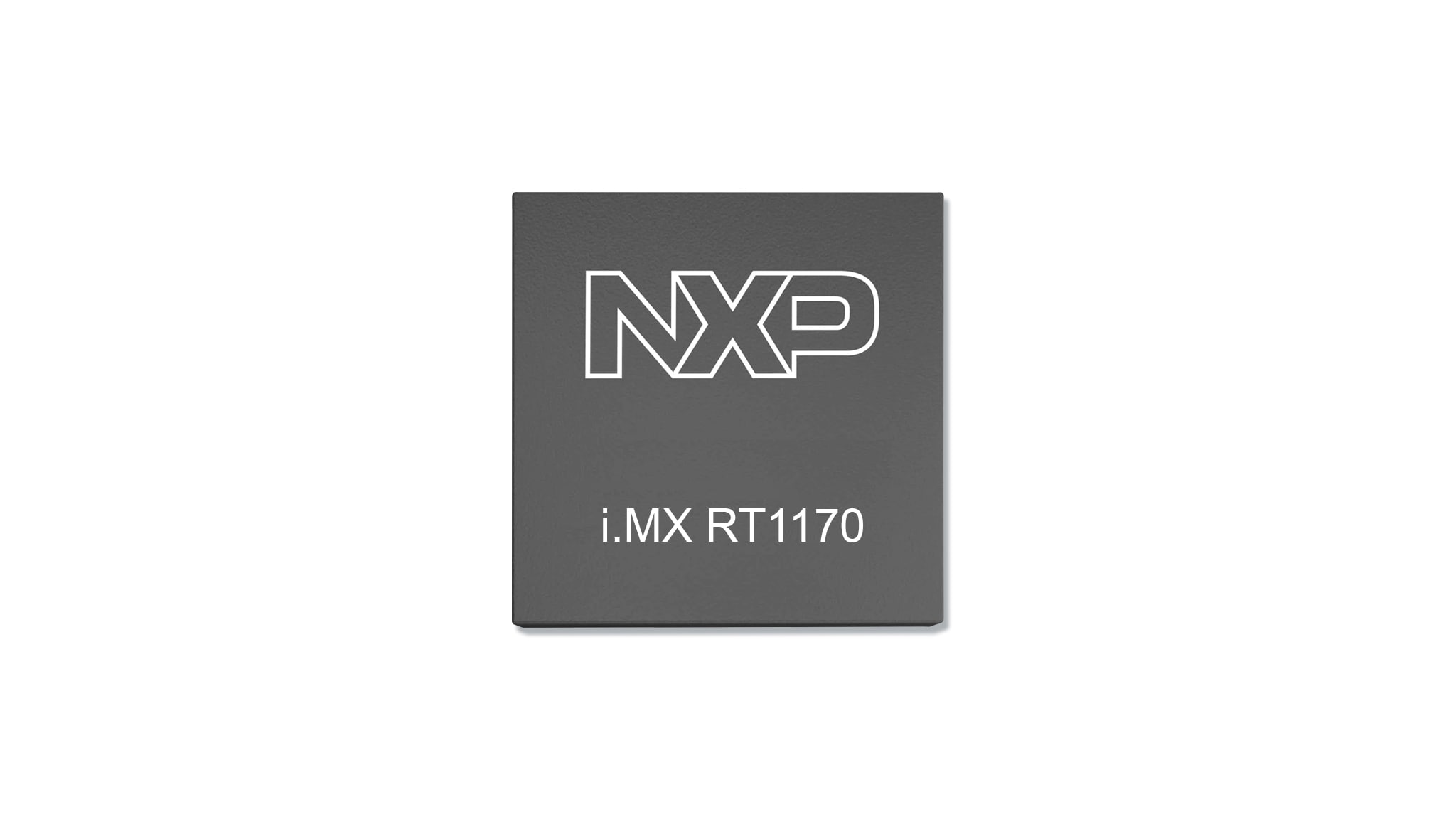

i.MX RT1170 Crossover MCUs are dual-core devices featuring an Arm® Cortex®-M7 and Arm® Cortex®-M4 for real-time microcontroller (MCU) performance and high integration for automotive, industrial and IoT applications.
The i.MX RT1170 CM7 operates at up to 1 GHz and the CM4 up to 400 MHz with 2 MB on-chip RAM. The real-time microcontroller (MCU) family offers various memory interfaces and a wide range of connectivity interfaces including 3x Ethernet up to Gbps with TSN/AVB, UART, SPI, I²C, USB and 3x CAN FD. The i.MX RT1170 provides advanced embedded security including secure boot and crypto engines.
The i.MX RT1170 family is supported by the MCUXpresso ecosystem, which includes an SDK, a choice of IDEs and secure provisioning and configuration tools to enable rapid development.
The i.MX RT1170 crossover MCU, part of the EdgeLock Assurance program, is designed to meet industry standards and follows NXP's security-by-design approach.
i.MX RT1050跨界MCU，配备Arm®Cortex®-M7内核
i.MX RT1060: 跨界MCU， 配备Arm®Cortex®-M7
1-10 / 13 结果
包含 0 不推荐用于新设计
部件 | 订购 | 计算机辅助设计模型 | 状态 | 预算报价（不含税） | 内核类型 | 运行频率[最高]（MHz） | SRAM (kB) | 支持外部存储器 | GPU 2D / GPU 3D | Display Features | Camera Interfaces | Serial Communication | CAN FD | 以太网 | USB Controllers | 安全 | PWM [Number, bits] | ADC [Number, bits] | 输入电压[最小到最大]（V） | PWM | Junction Temperature (Min to Max) (℃) | 封装类型 | Package Pitch (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
正常供应 | 1K @ CNY59.23 | 1 x Arm Cortex-M7 | 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 125 | LFBGA289 | 0.8 | |||
正常供应 | 10K @ CNY51.41 | 1 x Arm Cortex-M7 | 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 105 | LFBGA289 | 0.8 | |||
正常供应 | 10K @ CNY48.03 | 1 x Arm Cortex-M7 | 1000 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | 0 to 95 | LFBGA289 | 0.8 | |||
正常供应 | 1K @ CNY65.77 | 1 x Arm Cortex-M7 | 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | GPU 2D | MIPI-DSI, parallel RGB LCD controller | 1 x MIPI-CSI, 1 x parallel CSI | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 125 | LFBGA289 | 0.8 | |||
正常供应 | 10K @ CNY55.50 | 1 x Arm Cortex-M7 | 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | GPU 2D | MIPI-DSI, parallel RGB LCD controller | 1 x MIPI-CSI, 1 x parallel CSI | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 105 | LFBGA289 | 0.8 | |||
正常供应 | 10K @ CNY51.41 | 1 x Arm Cortex-M7 | 1000 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | GPU 2D | MIPI-DSI, parallel RGB LCD controller | 1 x MIPI-CSI, 1 x parallel CSI | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | 0 to 95 | LFBGA289 | 0.8 | |||
正常供应 | 10K @ CNY61.25 | 1 x Arm Cortex-M4, 1 x Arm Cortex-M7 | 400, 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | GPU 2D | MIPI-DSI, parallel RGB LCD controller | 1 x MIPI-CSI, 1 x parallel CSI | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 105 | LFBGA289 | 0.8 | |||
正常供应 | 1K @ CNY66.85 | 1 x Arm Cortex-M4, 1 x Arm Cortex-M7 | 400, 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 125 | LFBGA289 | 0.8 | |||
正常供应 | 10K @ CNY57.58 | 1 x Arm Cortex-M4, 1 x Arm Cortex-M7 | 400, 800 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | -40 to 105 | LFBGA289 | 0.8 | |||
正常供应 | 10K @ CNY53.42 | 1 x Arm Cortex-M4, 1 x Arm Cortex-M7 | 400, 1000 | 2048 | FlexSPI, NOR FLASH, OctalSPI, SDRAM, SLC NAND FLASH | — | — | — | 12 x UART, 6 x I²C, 6 x SPI | 3 | 2 | 2 | — | 48 x 16 | 2 x 12 | 3 to 3.6 | 48 | 0 to 95 | LFBGA289 | 0.8 |
