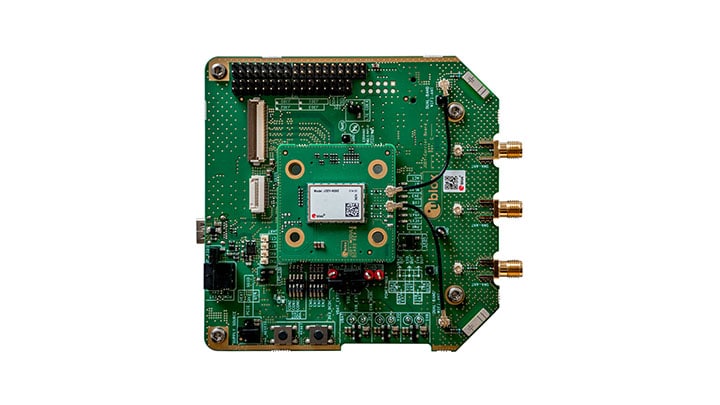

EVK-JODY-W263-01A
-
Kit for evaluation of JODY-W263 module.

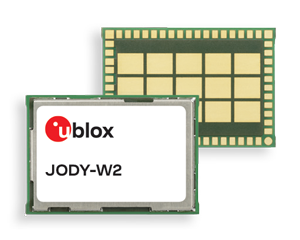

Eval kit for JODY-W263 Wi-Fi®/Bluetooth® module

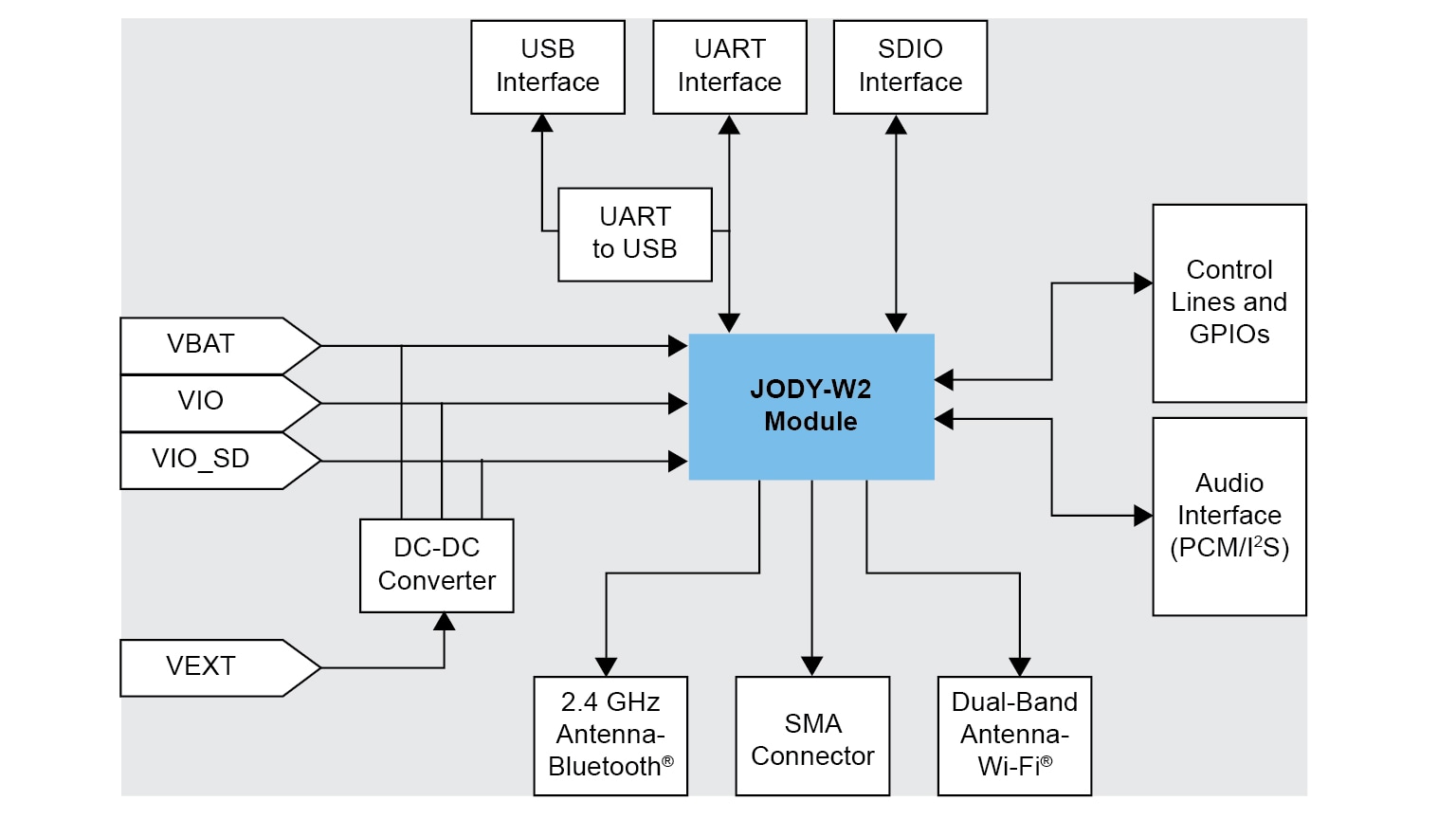

EVK-JODY-W263 allows an external host processor to access several practical features for testing and evaluating the Wi-Fi and Bluetooth connectivity supported in JODY-W2 series modules, including:
- An external connector to all host interfaces (SDIO and UART)
- PCM interface through an on board accessible connector
- GPIO pins that are accessible through an on board connector
- Internal dual-band 2.4/5 GHz antennas for Wi-Fi and Bluetooth
- SMA connectors for external antennas
- Module interfaces that are all externally available via the pin headers
产品详情
支持的器件
无线连接
Wi-Fi® +蓝牙® + 802.15.4
- 88W8987: 2.4/5GHz双频1x1 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.2解决方案
处理器和微控制器
i.MX RT跨界MCU
- i.MX-RT1050: i.MX RT1050跨界MCU，配备Arm®Cortex®-M7内核
- i.MX-RT600: i.MX RT600跨界MCU，配备Arm®Cortex®-M33和DSP内核
- i.MX-RT1170: i.MX RT1170: 1GHz跨界MCU，配备Arm®Cortex®内核
- i.MX-RT1020: i.MX RT1020: 跨界MCU， 配备Arm®Cortex®-M7
- i.MX-RT1064: i.MX RT1064: 跨界MCU， 配备Arm®Cortex®-M7
- i.MX-RT1060: i.MX RT1060: 跨界MCU， 配备Arm®Cortex®-M7
i.MX 8应用处理器
- i.MX8MNANO: i.MX 8M Nano系列 - Arm® Cortex®-A53、Cortex-M7
- i.MX8M: i.MX 8M系列 - Arm® Cortex®-A53、Cortex-M4、音频、语音、视频
- i.MX8X: i.MX 8X系列 – Arm® Cortex®-A35, 3D图形, 4K视频, DSP, DDR上的纠错码
i.MX 6处理器
- i.MX6DL: i.MX 6DualLite处理器 - 双核, 3D图形, HD视频, Arm® Cortex®-A9内核
Features
Wi-Fi and Bluetooth connectivity
- IEEE 802.11 a/b/g/n/ac, Bluetooth / BLE 5.1
- Based on NXP 88W8987
Interfaces

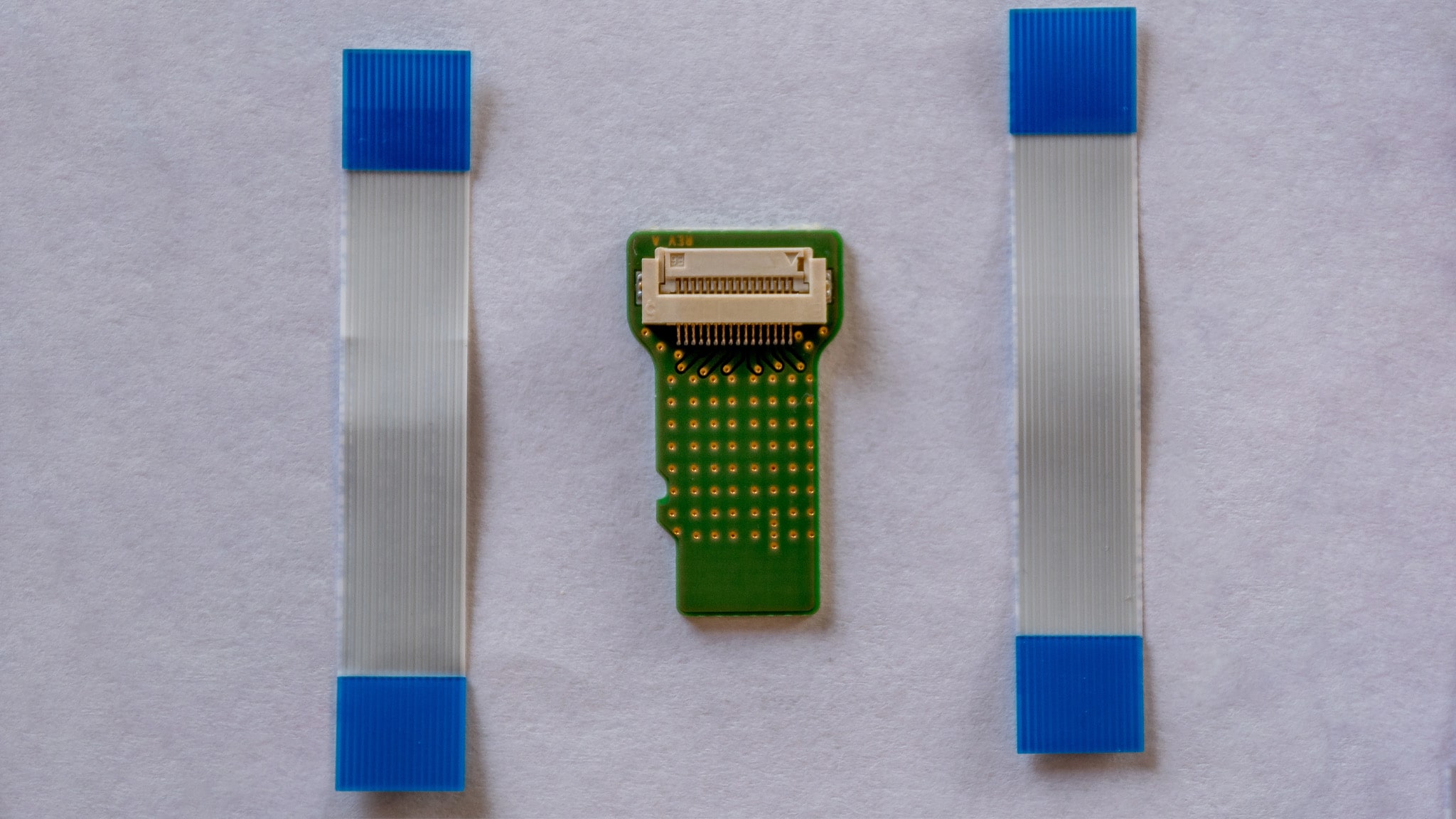

- Wi-Fi host interface: SDIO via SDIO card connector
- Bluetooth host interface: UART via UART-to-USB connector
Antenna
- Dual-band antenna, connect to SMA connector
