基于i.MX RT1170的汽车开发平台

i.MXRT1170-ADP

滚动图片以放大

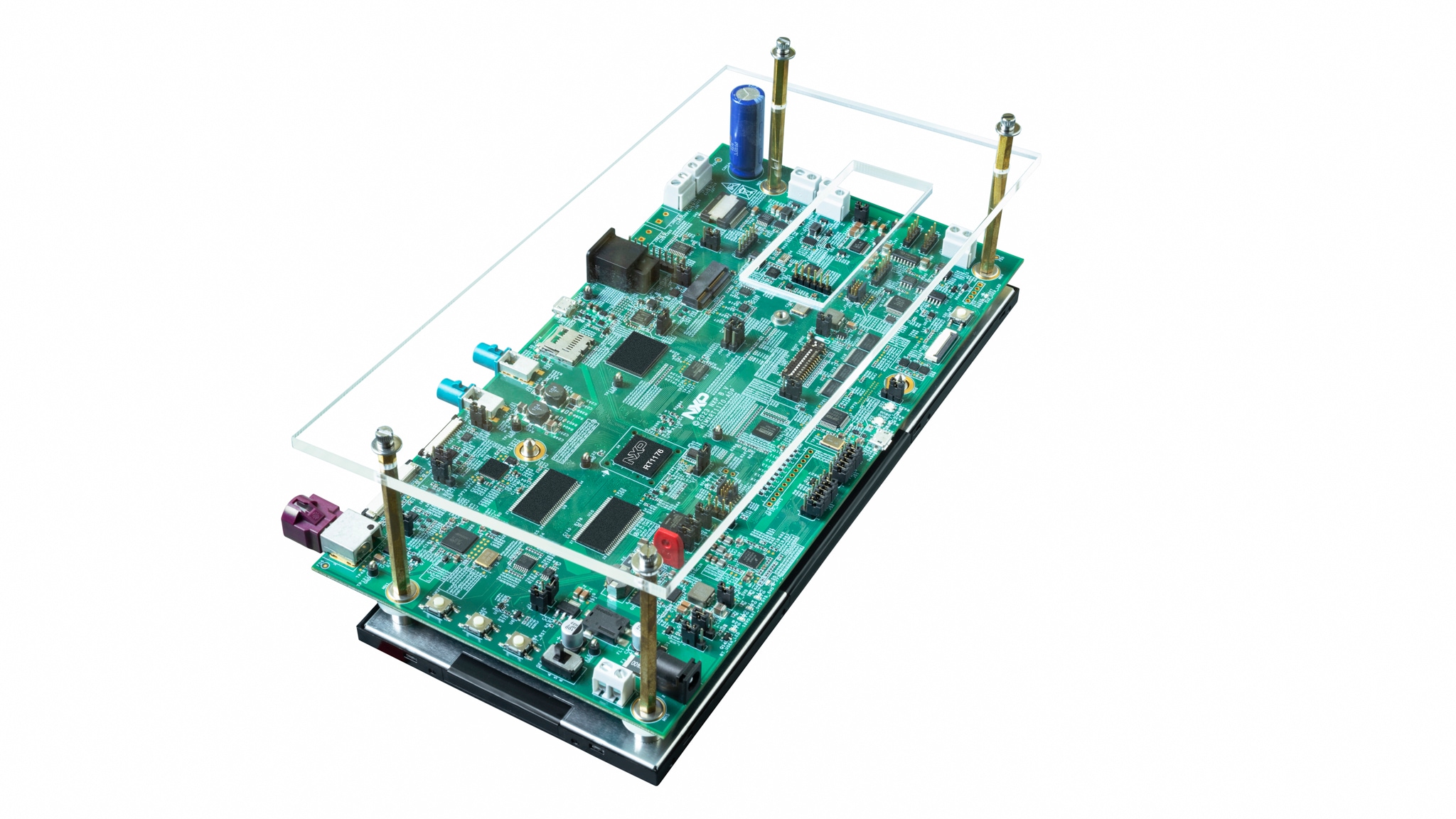

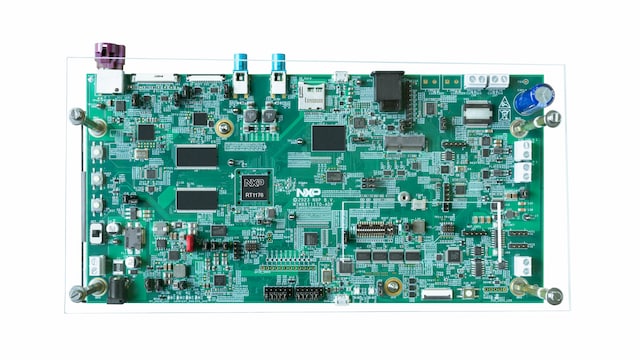

i.MX RT1176汽车开发平台(ADP)旨在为汽车市场快速设计提供坚实基础，适用于娱乐中控系统、车内体验、两轮车数字互联仪表盘、平视显示器(HUD)、独立小型仪表盘、人机接口(HMI)、入门级驾驶员监控系统(DMS)、语音命令等应用场景。

框图

MIMXRT1176-ADP

i.MX RT1170
获取框图PDF

支持的器件

无线连接

低功耗蓝牙

  • KW45: KW45: 32位Bluetooth® 5.3，远程MCU，带CAN FD和LIN总线选项， Arm® Cortex®-M33内核

Wi-Fi® +蓝牙® + 802.15.4

  • AW611: 2.4/5 GHz双频1x1 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.4汽车解决方案

接口

CAN信号提升

  • TJA1463: 具有睡眠模式的CAN信号质量提升(SIC)收发器

汽车以太网PHY

  • TJA1103: TJA1103，符合ASIL B安全标准的汽车以太网100BASE-T1 PHY收发器

处理器和微控制器

i.MX RT跨界MCU

  • i.MX-RT1170: i.MX RT1170: 1GHz跨界MCU，配备Arm®Cortex®内核

S32K汽车通用MCU

  • S32K1: S32K1汽车通用微控制器

电源管理

PMIC

  • PF5020: Multi-Channel (5) PMIC for Automotive Applications – 4 High Power and 1 Low Power, Fit for ASIL B Safety Level

特性

硬件

  • i.MX RT1170汽车部件编号(MIMXRT1176AVM8A)
  • Cortex-M7核，125℃下最高600MHz；105℃下最高800MHz
  • 符合ASIL B级的PMIC PF5020和双Buck FS5600
  • 符合ASIL-B级的S32K MCU

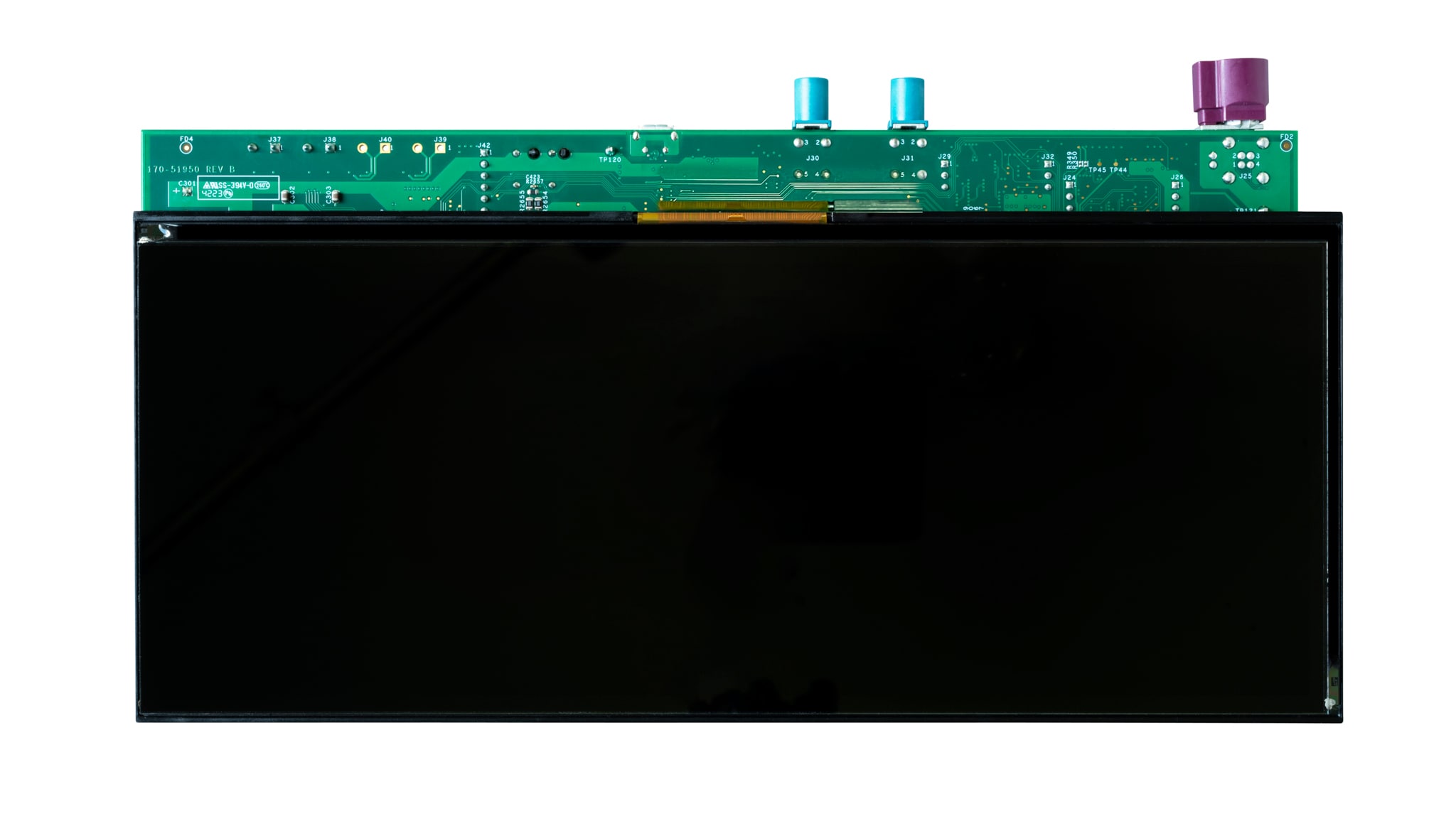

  • 支持通过LCDIF、MIPI DSI接口的车载显示。RGB转LVDS接口，MIPI-DSI串行器
  • 支持通过MIPI CSI接口的车载摄像头，MIPI-CSI解串器
  • 音频支持(麦克风/扬声器)
  • 连接(M.2接头WiFi/蓝牙、带安全PHY的以太网、CAN、USB)
  • 多样化存储接口(QSPI闪存、八线SPI闪存、HyperRAM、SDRAM、eMMC/SD卡)
  • 64MB八线SPI闪存和64MB 32位SDRAM，满足高性能应用需求

软件

  • 基于SDK 2.15.1的板级支持包(BSP)
  • 外设驱动示例
  • ADP平台上的AW61xWiFi/蓝牙协议栈库
  • 基于LVGL的GUI示例
  • 使能蓝牙桥接(A2DP、HFP、H2H)的双轮车示例
  • ADP平台上的DMS示例
  • ADP平台上的恩智浦SBL无线升级(OTA)解决方案
  • ADP平台上的QtMCU适配层

购买选项

MIMXRT1176-ADP-Image

点击展开

  • MIMXRT1176-ADP
    正常供应

  • Automotive Development Platform Based on i.MX RT1170.

  • $1000.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 3
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
