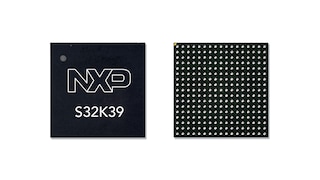

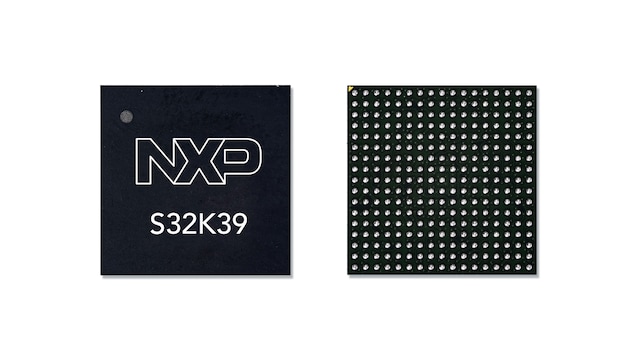

面向电气化应用的S32K39/37/36微控制器

S32K39-37-36
正常供应

滚动图片以放大

S32K39-37-36是一款集性能、集成、组网、信息安全及功能安全功能于一体的新型电动汽车(EV)器件。

它有足够的计算能力，支持由超过200kHz控制环路控制的一个六相电机或两个三相电机，同时托管AI/ML算法或其他监测应用。它支持使用时间敏感网络(TSN)以太网的远程智能启动应用，用于新的区域车辆架构。它还搭载ASIL D软件解析器和模拟外设集成，以降低系统成本。

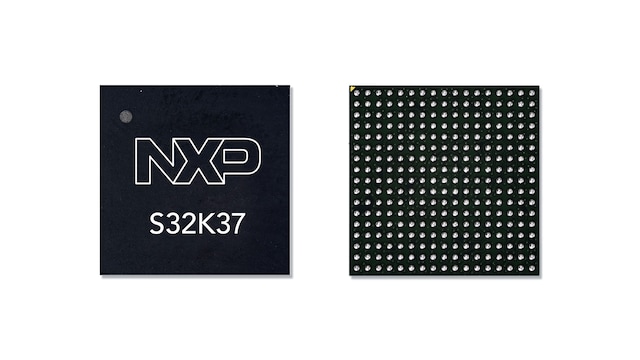

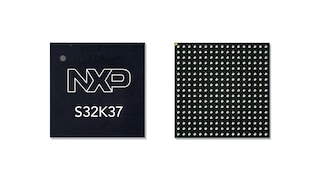

S32K37的高计算能力是高端电池管理系统(BMS)应用的理想之选。

框图

选择框图:

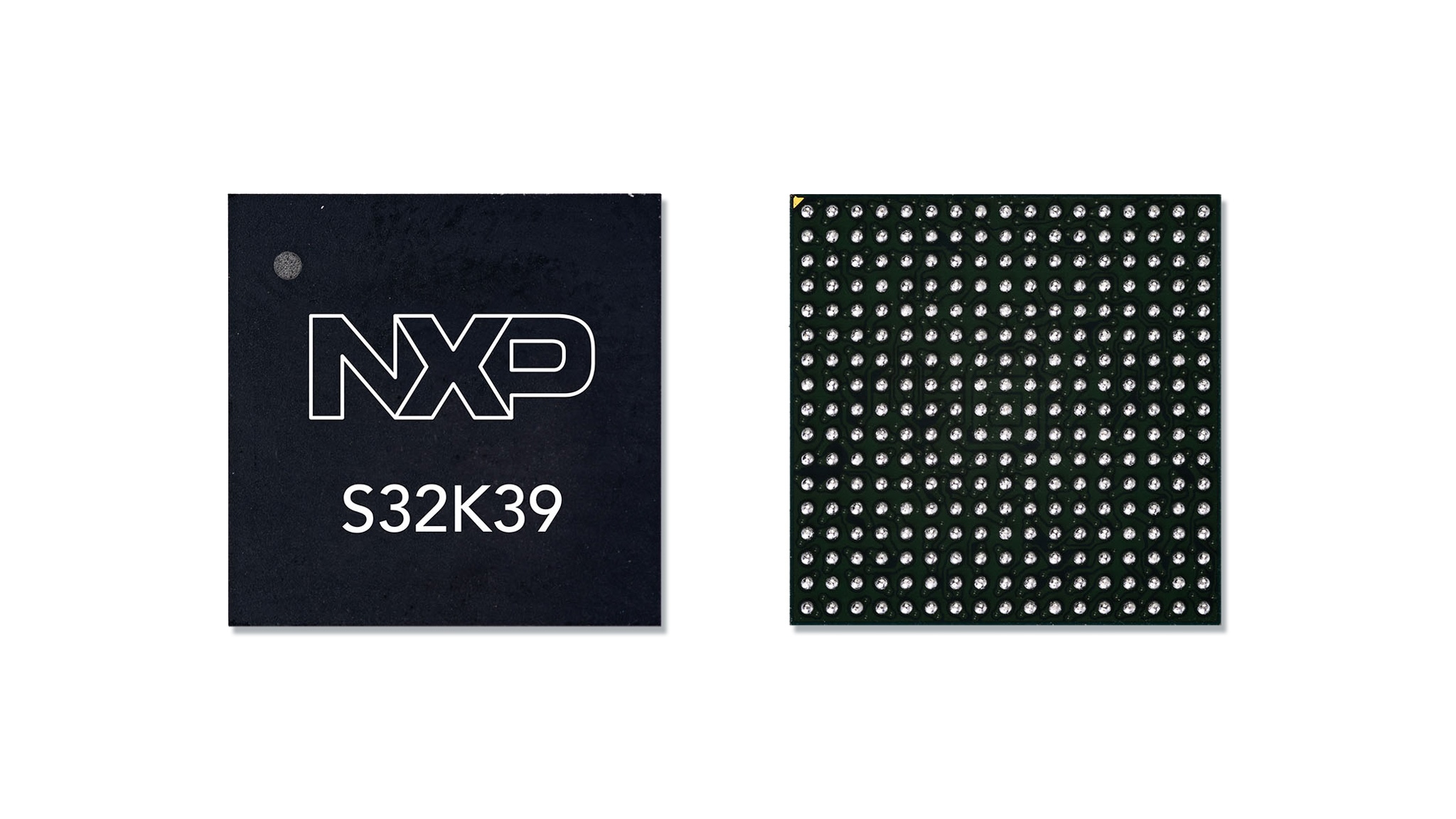

S32K39微控制器

S32K39 Microcontrollers for Electrification Applications

S32K37微控制器

S32K37 Microcontrollers for Electrification Applications

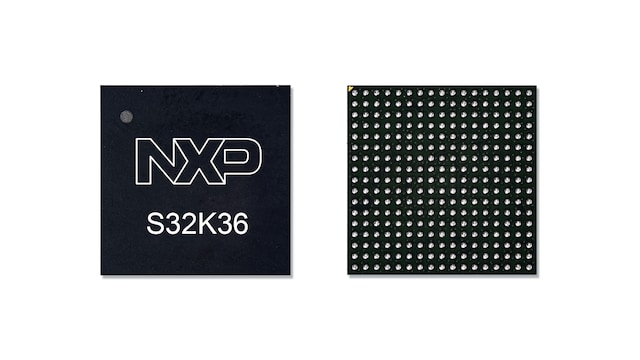

S32K36微控制器

S32K36 Microcontrollers for Electrification Applications

S32K39系列的特性

S32K39 Family Features

S32K39/37/36软件使能工具

S32K39/37x Microcontrollers for Electrification Applications Software Ecosystem
获取框图PDF

购买/参数

10 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

内核：内核数量(规范值)

内核类型

Lockstep

运行频率[最高]（MHz）

Flash (kB)

RAM (kB)

Serial Communication

GPIO

CAN FD

Number of LIN Channels

以太网类型

人机接口

安全

定时器特性

ADC [Number, bits, channels]

QSPI

FOTA

输入电压[最小到最大]（V）

Ambient Operating Temperature (Min to Max) (℃)

封装类型

Package Pitch (mm)

SafeAssure 功能安全

ASIL Certification

预算报价（不含税）

AEC-Q100 Temperature Range

S32K364NHT1MJBST
数据手册

正常供应

3

Arm Cortex-M7

Yes

320

4000

704

2 x I²C, 4 x UART, 6 x SPI

209

6

4

—

flexible input/output

HSE_B

BCTU, LCU, eFlexPWM (12 ch), eFlexPWM with NanoEdge (8 ch), eMIOS (16 ch), eTPU (16 ch)

4, 12, 84

1

Yes

2.7 to 5.5

-40 to 125

LFBGA289

0.8

ISO 26262

up to ASIL D

1K @ CNY74.38

grade 1

S32K366EHT1MJBST
数据手册

正常供应

3

Arm Cortex-M7

Yes

320

6000

704

2 x I²C, 4 x UART, 6 x SPI

209

6

4

10M

flexible input/output

HSE_B

BCTU, LCU, eFlexPWM (12 ch), eFlexPWM with NanoEdge (8 ch), eMIOS (16 ch), eTPU (16 ch)

4, 12, 84

1

Yes

2.7 to 5.5

-40 to 125

LFBGA289

0.8

ISO 26262

up to ASIL D

1K @ CNY88.31

grade 1

S32K366NHT1MJBST
数据手册

正常供应

3

Arm Cortex-M7

Yes

320

6000

704

2 x I²C, 4 x UART, 6 x SPI

209

6

4

—

flexible input/output

HSE_B

BCTU, LCU, eFlexPWM (12 ch), eFlexPWM with NanoEdge (8 ch), eMIOS (16 ch), eTPU (16 ch)

4, 12, 84

1

Yes

2.7 to 5.5

-40 to 125

LFBGA289

0.8

ISO 26262

up to ASIL D

1K @ CNY85.59

grade 1

S32K376NHT1MJBST
数据手册

正常供应

4

Arm Cortex-M7

Yes

320

6000

800

2 x I²C, 4 x UART, 6 x SPI

209

6

4

—

flexible input/output

HSE_B

BCTU, LCU, eFlexPWM (12 ch), eFlexPWM with NanoEdge (8 ch), eMIOS (24 ch)

7, 12, 120

1

Yes

2.7 to 5.5

-40 to 125

LFBGA289

0.8

ISO 26262

up to ASIL D

1K @ CNY103.75

grade 1

S32K394EHT1MJBST
数据手册

正常供应

4

Arm Cortex-M7

Yes

320

4000

800

2 x I²C, 4 x UART, 6 x SPI

209

6

4

10M

flexible input/output

HSE_B

BCTU, LCU, eFlexPWM (12 ch), eFlexPWM with NanoEdge (8 ch), eMIOS (24 ch), eTPU (32 ch)

7, 12, 120

1

Yes

2.7 to 5.5

-40 to 125

LFBGA289

0.8

ISO 26262

up to ASIL D

1K @ CNY91.76

grade 1

S32K394NHT1MJBST
数据手册

正常供应

4

Arm Cortex-M7

Yes

320

4000

800

2 x I²C, 4 x UART, 6 x SPI

209

6

4

—

flexible input/output

HSE_B

BCTU, LCU, eFlexPWM (12 ch), eFlexPWM with NanoEdge (8 ch), eMIOS (24 ch), eTPU (32 ch)

7, 12, 120

1

Yes

2.7 to 5.5

-40 to 125

LFBGA289

0.8

ISO 26262

up to ASIL D

1K @ CNY94.78

grade 1

S32K396EHT1MJBST
数据手册

正常供应

4

Arm Cortex-M7

Yes

320

6000

800

2 x I²C, 4 x UART, 6 x SPI

209

6

4

10M

flexible input/output

HSE_B

BCTU, LCU, eFlexPWM (12 ch), eFlexPWM with NanoEdge (8 ch), eMIOS (24 ch), eTPU (32 ch)

7, 12, 120

1

Yes

2.7 to 5.5

-40 to 125

LFBGA289

0.8

ISO 26262

up to ASIL D

1K @ CNY111.94

grade 1

S32K396EHT1MKUST
数据手册

正常供应

4

Arm Cortex-M7

Yes

320

6000

800

2 x I²C, 4 x UART, 6 x SPI

127

6

4

10M

flexible input/output

HSE_B

BCTU, LCU, eFlexPWM (12 ch), eFlexPWM with NanoEdge (8 ch), eMIOS (24 ch), eTPU (32 ch)

7, 12, 120

1

Yes

2.7 to 5.5

-40 to 125

176LQFP-EP

0.5

ISO 26262

up to ASIL D

1K @ CNY120.84

grade 1

S32K396NHT1MJBST
数据手册

正常供应

4

Arm Cortex-M7

Yes

320

6000

800

2 x I²C, 4 x UART, 6 x SPI

209

6

4

—

flexible input/output

HSE_B

BCTU, LCU, eFlexPWM (12 ch), eFlexPWM with NanoEdge (8 ch), eMIOS (24 ch), eTPU (32 ch)

7, 12, 120

1

Yes

2.7 to 5.5

-40 to 125

LFBGA289

0.8

ISO 26262

up to ASIL D

1K @ CNY108.99

grade 1

S32K396NHT1MKUST
数据手册

正常供应

4

Arm Cortex-M7

Yes

320

6000

800

2 x I²C, 4 x UART, 6 x SPI

127

6

4

—

flexible input/output

HSE_B

BCTU, LCU, eFlexPWM (12 ch), eFlexPWM with NanoEdge (8 ch), eMIOS (24 ch), eTPU (32 ch)

7, 12, 120

1

Yes

2.7 to 5.5

-40 to 125

176LQFP-EP

0.5

ISO 26262

up to ASIL D

1K @ CNY117.90

grade 1
