What is a “Real-Time Processor”?

A real-time processor goes beyond traditional automotive microcontrollers to address real-time needs, maintaining the critical properly of safe, deterministic operation like an automotive microcontroller, but providing the unparalleled combination of gigahertz speed, multi-application isolation and memory expansion capabilities that are more characteristic of microprocessors. The S32Z and S32E are the first families in the new class of processors called “real-time processors”.

What are the key applications targeted by the S32Z and S32E families of real-time processors?

S32Z processors target safety processing and domain and zonal controllers. S32E processors target electric vehicle (xEV) control and smart actuation.

What is different between the S32Z and S32E families?

The S32Z and S32E families share many of the same capabilities with eight Arm ® Cortex ® -R52 processor cores with split-lock support, dual-core lockstep Cortex-M33 processor cores and a DSP/ML processor, along with communications acceleration, TSN Gigabit Ethernet switch and hardware security engine. They both support ISO/SAE 21434 cybersecurity and ISO 26262 ASIL D functional safety. However, the S32E family of processors offers additional capabilities (5V analog and I/Os with complex timers) to support actuation applications. The S32Z processors are ideal for safety processing and domain and zonal control, while the S32E processors are ideal for electric vehicle (xEV) control and smart actuation.

What process technology is used for the S32Z and S32E processors?

The S32Z and S32E processors are implemented in TSMC 16nm FinFET technology.

How do the S32Z and S32E families fit into the S32 Automotive Platform?

The S32Z and S32E families provide real-time processing capabilities to complement the current S32K general-purpose microcontrollers and the S32G vehicle network processors. Together, all of the NXP S32 families offer customers a range of automotive processing solutions to meet the needs of vehicle architectures from the vehicle computer to the domain and zonal controllers, while also addressing safety processing.

What software and hardware enablement support is available for the S32Z and S32E processors?

The S32Z and S32E processors are supported by the S32 Design Studio, along with enablement software such as drivers, hypervisors, OSes and inter-processor communications. A vehicle integration platform called GreenVIP provides a software framework for accelerating real-time software integration, and the S32 safety software framework helps customers leverage the ASIL D safety features of the devices. There is also the GreenBox 3 hardware platform that hosts GreenVIP and applications software for silicon evaluation, software development and rapid prototyping.

S32Z和S32E实时处理器

S32Z和S32E实时处理器特性：Arm® Cortex®-R52可分锁步处理器，可用于多租户软件集成；锁步Arm Cortex M-33处理器，可用于系统管理；处理器结合了多核、实时处理与内核到引脚硬件虚拟化、DSP/ML处理、通信加速和具有硬件安全和ISO26262 ASIL D功能安全的千兆以太网交换机。

S32Z处理器适合用于安全处理、域控制和区域控制，而S32E处理器适用于电动汽车(xEV)控制和智能驱动。S32Z和S32E处理器软件兼容，有助于实现软件定义汽车，降低软件集成复杂度，并增强信息安全和功能安全。

S32Z和S32E处理器属于恩智浦S32平台产品系列，受到第三方生态合作体系全面支持，通过产品长期供货计划保证最低15年的供货稳定性。

产品
了解实时处理器的更多信息
产品计划
设计资源
生态合作体系

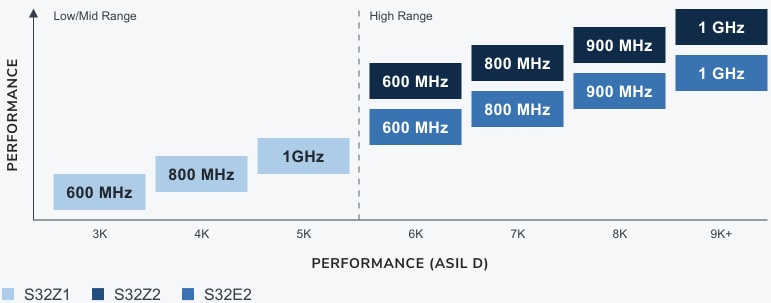

S32Z和S32E产品系列

产品系列	产品	技术	内核	频率	特性
S32Z 样品阶段	S32Z2	16nm	8个Arm Cortex-R52+ 锁步Arm Cortex-M33	600MHz至1GHz	功能安全和域控制/区域控制
S32E 样品阶段	S32E	16nm	8个Arm Cortex-R52 + 锁步Arm Cortex-M33	600MHz至1GHz	电动汽车控制与智能驱动

了解S32Z和S32E实时处理器的更多信息

什么是“实时处理器”？

实时处理器超越了传统的汽车微控制器，可满足实时需求，它和汽车微控制器一样能够保持安全确定性操作，同时结合了微处理器的典型特点——千兆级速度、多应用隔离和内存扩展能力。S32Z和S32E是恩智浦首个“实时处理器”系列。

S32Z和S32E系列实时处理器主要适用于哪些应用场景？

S32Z处理器适用于安全处理、域控制和区域控制，而S32E处理器适用于电动汽车(xEV)控制和智能驱动。

S32Z和S32E系列有什么不同？

S32Z和S32E系列拥有许多相同的功能，包括8个带可分锁步支持特性的Arm^®Cortex^®-R52处理器内核，双核锁步Cortex- m33处理器内核和DSP/ML处理器，以及通信加速、TSN千兆以太网交换机和硬件安全引擎。它们都遵循ISO/SAE21434网络安全认证以及ISO26262 ASIL D功能安全认证。然而，S32E系列处理器提供了额外的功能（5V模拟和具有复杂定时器的I/O），可支持驱动应用。S32Z处理器适用于安全处理、域控制和区域控制，而S32E处理器适用于电动汽车（xEV）控制和智能驱动。

S32Z和S32E实时处理器

S32Z和S32E产品系列

了解S32Z和S32E实时处理器的更多信息

什么是“实时处理器”？

S32Z和S32E系列实时处理器主要适用于哪些应用场景？

S32Z和S32E系列有什么不同？

S32Z和S32E处理器采用什么工艺技术?

S32Z和S32E系列如何并入S32汽车平台?

S32Z和S32E处理器提供哪些软件和硬件支持？

产品计划

设计资源

GreenBox 3实时开发平台

汽车软件工具

S32Z/E汽车集成平台(GreenVIP)

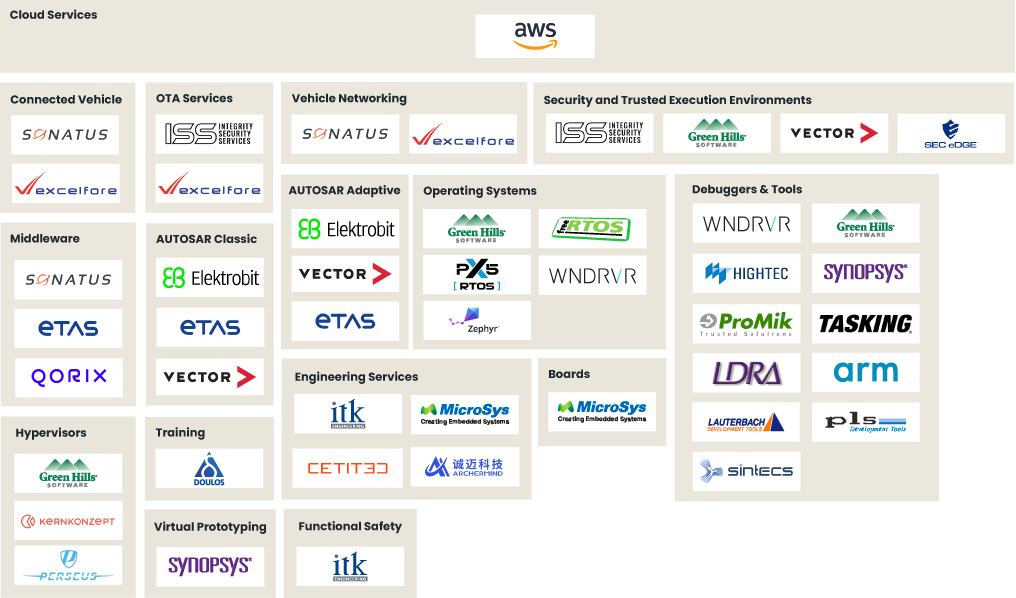

生态合作体系
