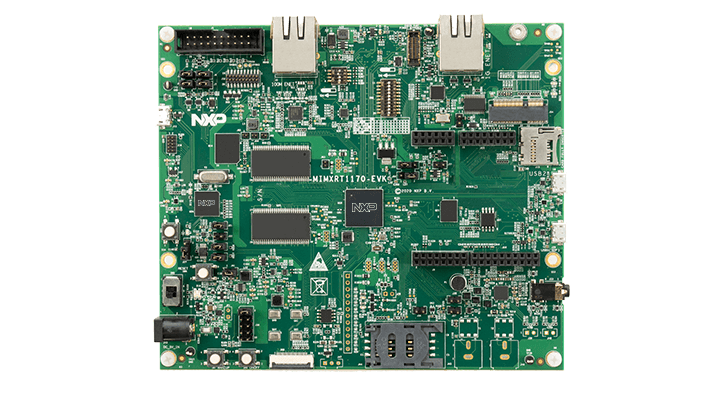

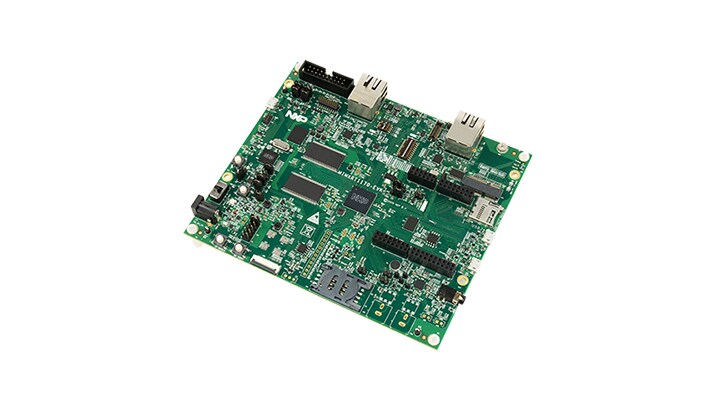

i.MX RT1170 Evaluation Kit

MIMXRT1170-EVKB

滚动图片以放大

i.MX RT evaluation boards provide a powerful, extendable platform or evaluation and prototyping using the MCUXpresso suite of software and tools. An Arduino UNO site is provided for expansion using NXP or 3rd party shield boards. The boards feature a high speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-link LITE from SEGGER.

产品详情

支持的器件

处理器和微控制器

i.MX RT跨界MCU

  • i.MX-RT1170: i.MX RT1170: 1GHz跨界MCU，配备Arm®Cortex®内核

Features

Processor

  • MIMXRT1176DVMAA
  • 1 GHz Arm Cortex-M7 core
  • 400 MHz Arm Cortex-M4 core

Board Memory

  • 512 Mbit SDRAM memory
  • 512 Mbit Octal Flash
  • 128 Mbit QSPI Flash
  • 2 Gbit Raw NAND Flash
  • 64 Mbit LPSPI Flash
  • TF socket for SD card

Connectivity

  • 2x Micro-USB OTG connectors
  • Ethernet (10/100/1000M) connector
  • Ethernet (10/100M) connector

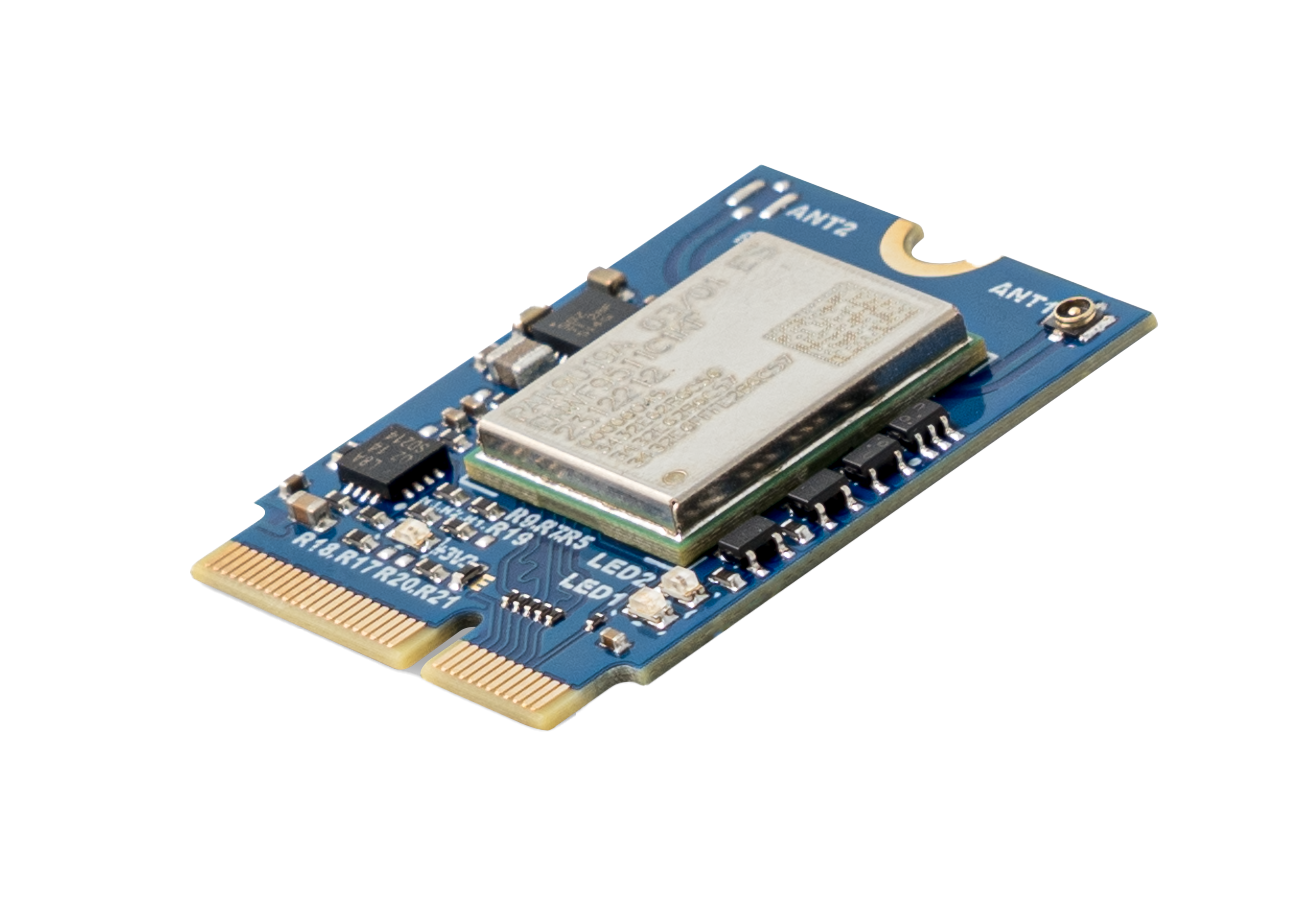

  • M.2 connector
  • CAN transceivers
  • ARDUINO® interface - Expansion connectors need to be added
  • FRDM motor control interface
  • SIM card slot

Audio

  • Audio codec
  • 4-Pole audio headphone jack
  • External speaker connection
  • Microphone (analog and digital)
  • SPDIF Connector

Debug Capabilities

  • JTAG connector
  • On-board DAP-Link debugger

Sensors

  • 6-Axis ecompass (3-Axis Mag, 3-Axis Accel) sensor FXOS8700CQ

Expansion Connectors

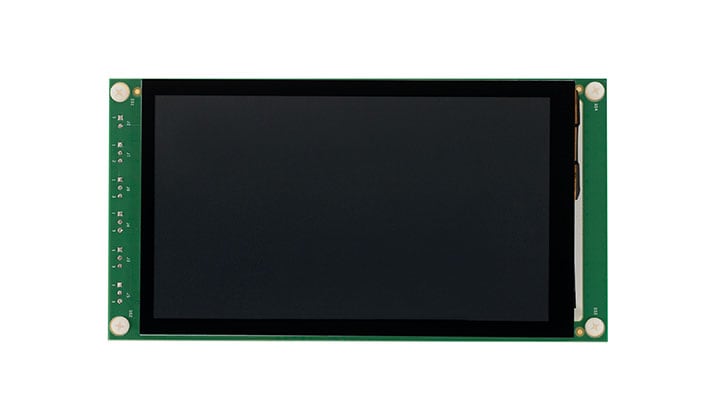

  • MIPI® LCD connector
  • MIPI camera sensor connector

Additional

  • MCUXpresso Software and Tools, including MCUXpresso SDK with Amazon FreeRTOS™
  • IAR Embedded Workbench® IDE
  • Keil® IDE
  • All-in-one board design
  • 6-Layer through hole PCB

购买选项

MIMXRT1170-EVKB-Image

点击展开

  • CNY 1,313.32
  • 数量为 1
    • 供货情况: 现货
    • 库存: 23
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买

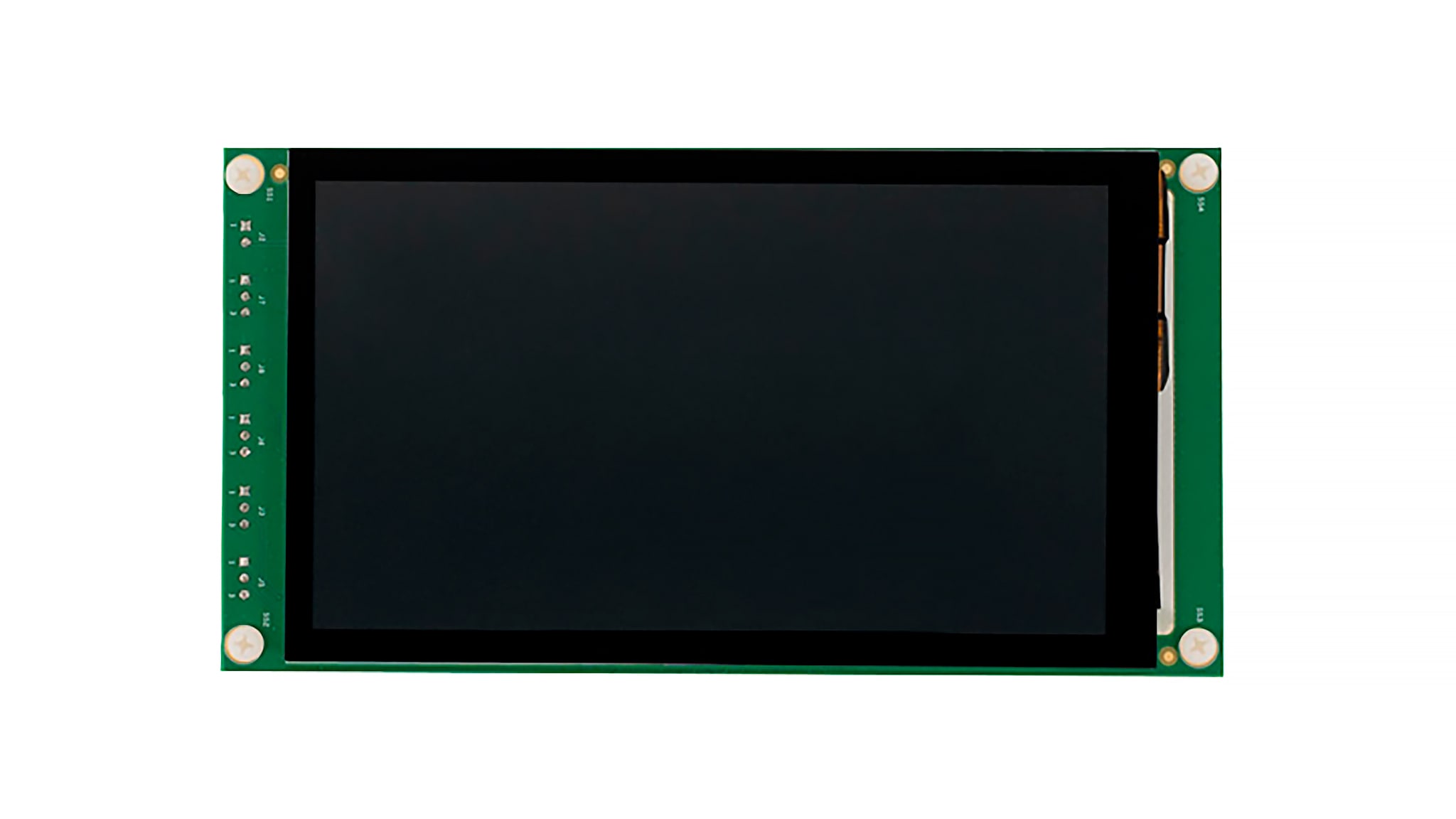

RK055HDMIPI4MA0-Image

点击展开

  • CNY 652.53
  • 数量为 1
    • 供货情况: 现货
    • 库存: 9
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
