i.MX 91 Evaluation Kit

i.MX91EVK
正常供应

滚动图片以放大

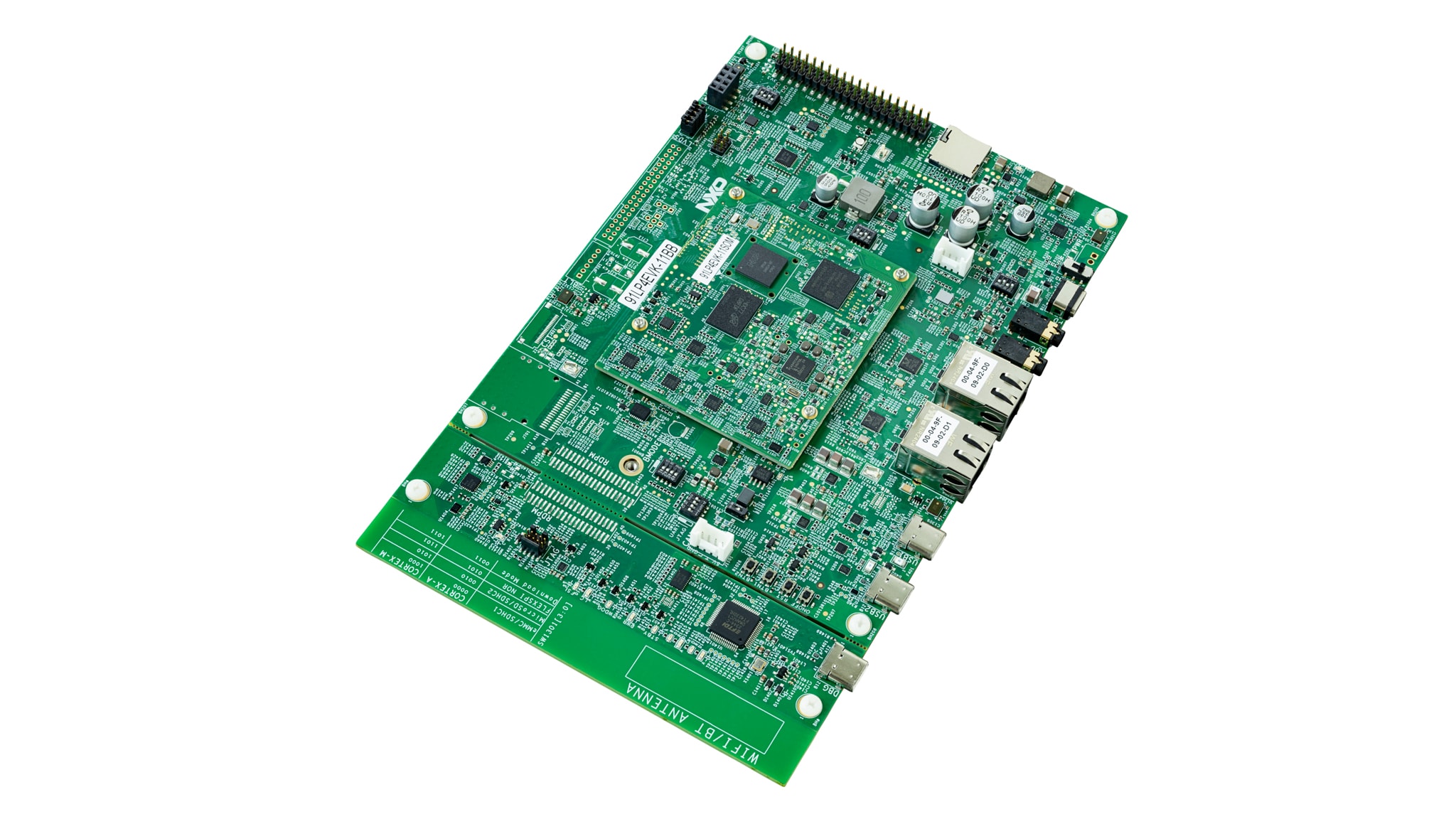

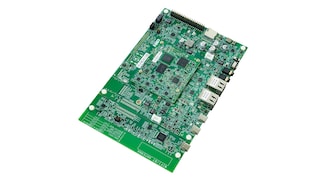

The i.MX 91 EVK provides a platform for comprehensive evaluation of the i.MX 91 applications processors and also includes the ability to measure power consumption on the power rails.

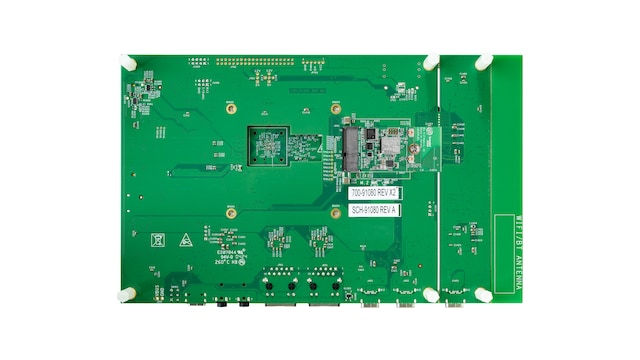

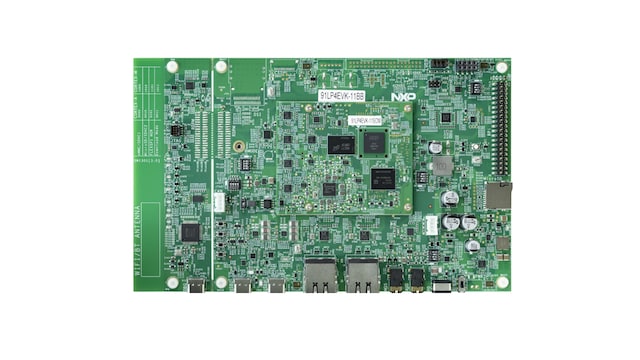

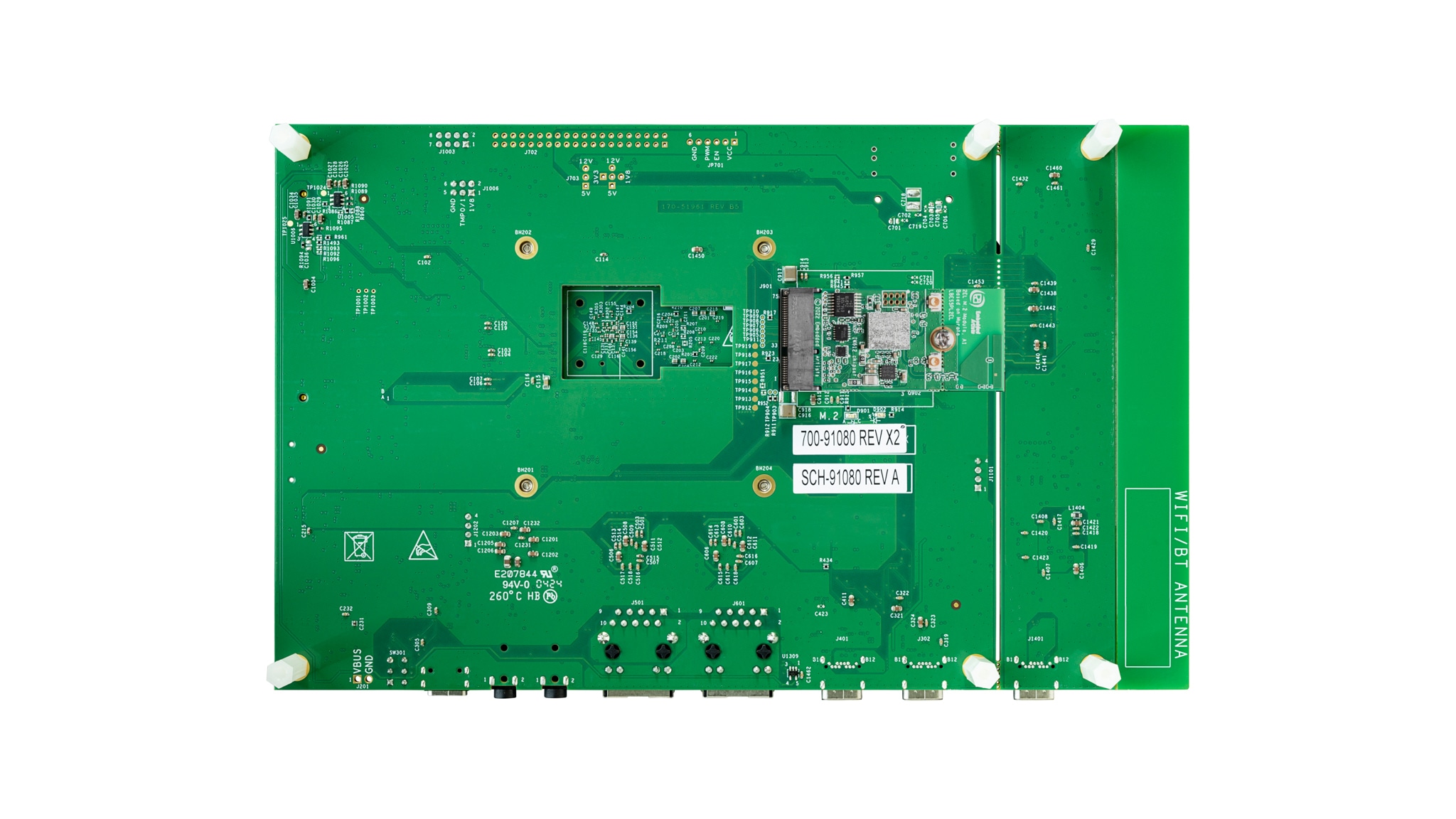

The kit includes two interconnected boards:

A compute module (standard 6-layer technology) containing a superset i.MX 91 SoC, 2 GB LPDDR4, 16 GB eMMC, NXP’s PMIC (PCA9451A) and power monitoring circuits.

A connectivity base board, which includes a standard M.2 KEY-E slot for plugging in off-the-shelf connectivity modules, such as Wi-Fi/Bluetooth modules from NXP partners.

The Linux-based board support package software is preloaded to boot from the compute module eMMC memory. This includes a rich GoPoint application to explore preinstalled demos. This kit provides an excellent starting point to accelerate your own design.

框图

i.MX91-LPD4 EVK

i.MX91 LPD4 EVK and Accessories BBs
获取框图PDF

支持的器件

接口

通用I/O(GPIO)

  • PCAL6524: Ultra-Low-Voltage Translating 24-Bit Fm+ I²C-Bus/SMBus I/O Expander

3.3V/5V IO CAN收发器

USB接口

电源管理

PMIC

  • PCA9451A: 面向i.MX 93x应用处理器的PCA9451A电源管理IC

负载开关

  • NX20P3483UK: USB PD和Type-C高压灌/拉电流组合开关，带保护装置
  • NX20P5090UK: 高压USB PD电源开关
  • NX20P0407: USB Type-C CC和SBU保护IC

处理器和微控制器

i.MX9处理器

  • i.MX91: i.MX 91系列安全高效，为成千上万的边缘应用提供了Linux®的基本功能。

购买选项

IMX91LP4EVK-11CM-Image

点击展开

  • IMX91LP4EVK-11CM
    正常供应

  • i.MX 91 Evaluation Kit.

  • Kit Contains

    • i.MX91-EVK board
    • 1x USB 3.0 to Type C cable
    • 1x USB Type C power delivery AC/DC
    • 1x Type C to Type A adapter

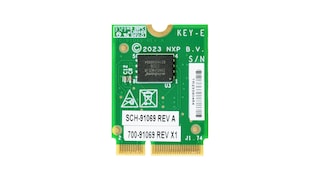

    • M.2 WIFI/BT Module
  • $470.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 19
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
