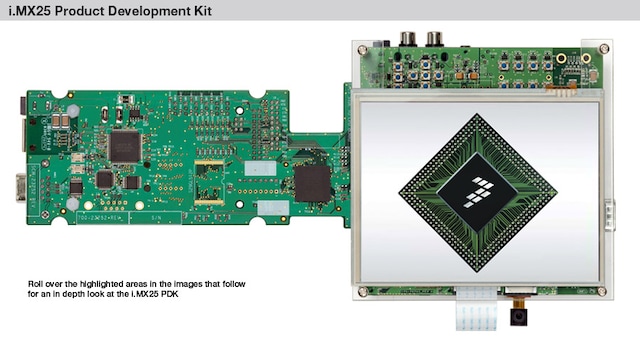

i.MX25 Product Development Kit
The i.MX 25 development kit builds on the success and extensive software code base of the i.MX31, i.MX27 and i.MX35 PDK's and gets this comprehensive kit into the hands of developers for under $1,000.
Based on a powerful ARM926EJ-S core, the i.MX25 PDK delivers excellent performance without sacrificing on battery life, and for wall-powered devices, will help you design products that meet today's demands for energy efficiency.
The provided Board Support Packages (BSPs) for Linux® and Win®CE 6.0 enable rapid prototyping to help speed up your processor selection process and quickly get something demonstrable into the hands of your project stakeholders.
Features
i.MX25 CPU Module
- i.MX25 with Arm926EJ-S core
- 400 MHz maximum speed
- NXP® MC34704B power management IC
- NXP SGTL5000 ultra-low-power audio codec
- Memory
- 64 MB or 512 MB DDR2
- 2 GB NAND flash
Personality Module
- Programmable user I/O
- 5.7" TFT VGA with touchscreen
- CMOS image sensor
- U/I connector to support other LCD panels (with or without touchscreen)
- Audio input connectors
- Headphone jack
- CAN connector
- Two USB 2.0 ports
- 10/100 Ethernet port
- SD card for Wi-Fi or external data storage
- Power source
- Current/power monitoring
Debug Module
- Debug Ethernet port
- Debug serial port
- JTAG
- Reset, interrupt, boot switches
- Debug LEDs
购买选项
-
MCIMX25PDKCPUJ
-
i.MX25 PDK CPU STANDALONE, LINUX.
-
MCIMX25WPDK
-
Product Development Kit, Hardware, i.MX25.
-
MCIMX25WPDKJ
-
MCIMX25WPDKJ.
