UJA1166A Evaluation Board

UJA1166A-EVB 正常供应

滚动图片以放大

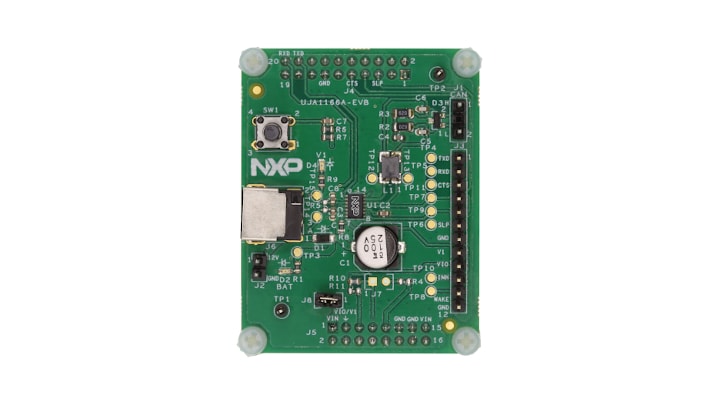

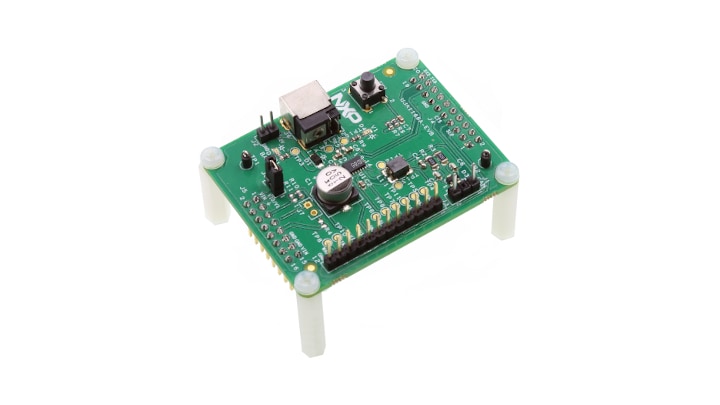

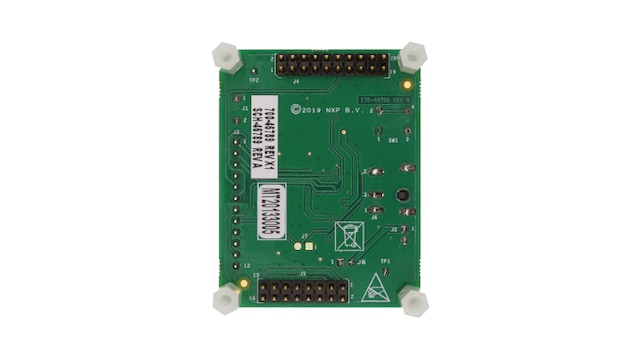

The UJA1166A-EVB evaluation board is a supportive tool to develop system solutions using the UJA1166A High-Speed CAN Transceiver. The board is pin compatible with the Arduino Uno pinout order and can be used in combination with any microcontroller board providing USB-to-SPI interfacing.

产品详情

支持的器件

接口

具有灵活数据传输速率的CAN

  • UJA1166ATK: 具备5 V LDO和睡眠模式的高速CAN收发器

Features

Features

  • Designed to facilitate the testing and evaluation of UJA116xA product features in a variety of microcontroller IO interface environment
  • Supporting Arduino connection with microcontroller board.
  • The board also provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals
  • Board dimensions are 45.1 mm × 58.4 mm. Only components needed to support basic UJA116xA functionality are included
  • An external power supply of 12 V typ. must be connected to power-up the board

购买选项

UJA1166A-EVB-Image

点击展开

  • UJA1166A-EVB
    正常供应

  • UJA1166A Evaluation Board.

  • Kit contains:

    • UJA1166A Evaluation Board
    • UJA116xA-EVB Manual
  • CNY 584.66
  • 数量为 1
    • 供货情况: 现货
    • 库存: 20
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
