QorIQ® T4240 Reference Design Board
The QorIQ® T4240 reference design board (T4240-RDB) is a compact (1U), highly integrated board featuring the 24-virtual-core T4240 device.
- With a 1.8 GHz T4240 processor and rich input/output (I/O) mix, the board is designed for evaluating the T4240, T4160 and T4080 processors in networking, telecom/datacom, wireless infrastructure and military/aerospace applications
- The T4 processor family can be used for combined control, data path, and application layer processing in routers, switches, gateways and general-purpose embedded computing systems
- The board, which exercises many capabilities of the device, can serve as a reference for a customer's hardware development
产品详情
支持的器件
处理器和微控制器
T系列
- T4240: QorIQ® T4240/T4160/T4080多核通信处理器

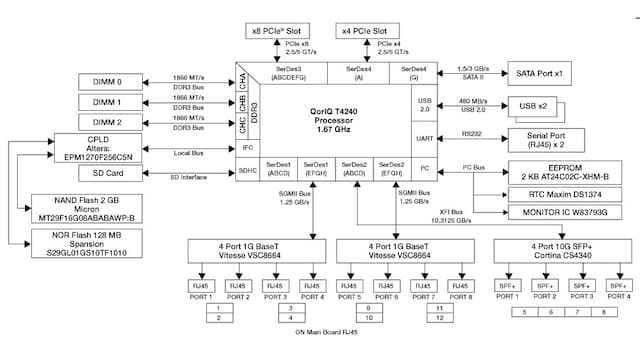

Features
Processor
- The T4240 processor contains a 1.8 GHz core with 1867 MT/s DDR3 data rate (prototype specification: 1.67 GHz core)
- Multiple SysClk inputs
Memory
- Three unbuffered DDR3 240-pin UDIMM modules with ECC (72-bit bus), 6 GB memory, 1867 MT/s data rate
- 128 MB NOR Flash, 16-bit
- 2 GB SLC NAND Flash
- 2 KB 24C02 I²C EEPROM
- SD connector to interface
PCI Express®
- PCI Express x4 connector
- PCI Express x8 connector
USB 2.0
- Dual Type-A USB slot, connected to USB PHY
Ethernet
- Four 10 GB/s SFP+ ports
- LAN1 - LAN8: Connected to SGMII PHY- VSC8664
Additional Features
- LEDs for power and Ethernet link and active
- JTAG for debugging
-
I²C
- Serial EEPROM - board identification
- Real-time clock
- ATX power supply
