MPC8308-RDB参考平台

MPC8308RDB
停产

滚动图片以放大

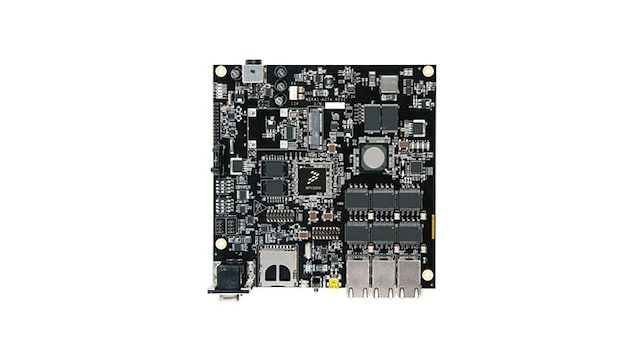

The NXP® MPC8308RDB reference platform is ideal for hardware and software development for applications including consumer printing, wireless access points, industrial control and factory automation.

超低成本MPC8308通信处理器满足了多种需要低功耗、高速外设和小规格封装设计的低端嵌入式网络应用的需求。

产品详情

支持的器件

处理器和微控制器

PowerQUICC II Pro (MPC83xx)

  • MPC8308: 低功耗PowerQUICC® II Pro处理器带有DDR2、eSDHC、PCI Express、eTSEC、USB、IEEE® 1588

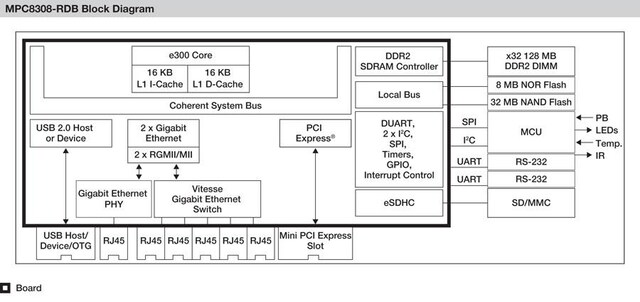

特征

Microcontroller

  • MPC8308 PowerQUICC® II Pro processor up to 333/266 MHz (CPU/DDR2)

Memory

  • 32-bit DDR2 memory controller with population option for 16-bit
    • Local bus
  • NAND flash/NOR flash memory

Connectivity

  • Ethernet
    • Four-port Gigabit Ethernet switch, supporting RGMII/MII
    • Single Gigabit Ethernet PHY (RGMII)
  • PCI Express® interconnect
    • MiniPCI Express for WLAN
  • Single high-speed USB 2.0 supporting host, device, or OTG
  • eSDHC
    • Single-port SD/MMC connector

Components

  • Two I²C
  • Dual UART

Support

  • IEEE® 1588v2 support for timing synchronization
