MPC8349E模块化开发系统

MPC8349EMDS

滚动图片以放大

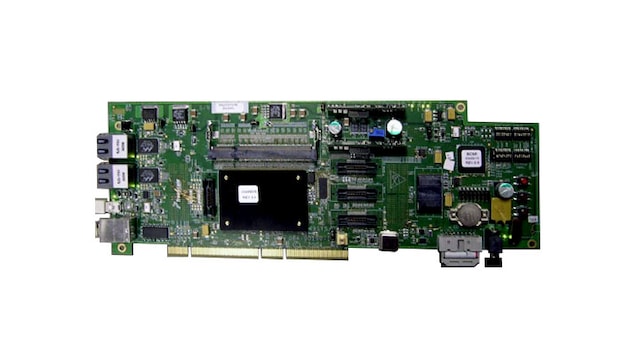

MPC8349E模块化开发系统(MDS)旨在为使用PowerQUICC® II Pro MPC8349E系列的硬件和软件开发人员提供帮助。

MPC8349E MDS包含3个分立的硬件模块：

  • MPC8349E处理器板
  • PowerQUICC平台I/O板
  • PowerQUICC PMC转PCI模块

该系统还允许选装USB和PCI扩展模块接口。

产品详情

支持的器件

处理器和微控制器

PowerQUICC II Pro (MPC83xx)

  • MPC8347E: PowerQUICC® II Pro处理器带DDR2、PCI、1 GB以太网、双USB、安全性
  • MPC8349E: PowerQUICC® II Pro处理器带DDR2、双PCI、1 GB以太网、双USB及安全性

特征

  • MPC8349处理器板可用作独立开发板，支持以下特性：

微控制器

  • MPC8349E processor @533 MHz

存储器

  • MB DDR-1 333 MHz (supports optional ECC memory)

数据连接

  • 64-Bit PCI Edge Connector (3.3 V and 5 V)
  • 两个RJ-45千兆以太网端口
  • USB 2.0高速设备/主设备/OTG端口
  • 两个RS232端口
  • 连接平台I/O板的侧板连接器

    本地总线接口，带有：

  • 8MB闪存(可扩展)
  • 采用FBGA封装的电路板控制和状态寄存器(BCSR)

调试

  • JTAG调试端口
  • PCI add-in standard card form factor (321x106 mm2 )

    MPC8349E MDS平台I/O板采用AdvancedTCA规格，带4个PMC插槽。该平台I/O板加上扩展模块可以提高开发能力。例如：

  • PCI Host mode (3.3 V 32 and 64-bit bus) with single agent (w/ PCI PMC card and PIB)
  • 访问第二个USB端口(带USB PMC卡和PIB)
  • 更多的USB PHY (UTMI、ULPI和串行OTG)
  • PCI Host mode (3.3 V 32 and 64-bit bus) with multiple agents (w/PCI expansion card and PIB)

MPC8349E-MDS套件包括

  •  MPC8349E-MDS-PB - 面向MPC8349E系列的处理器板
    • AC-DC 5 V/5 A universal power supply kit
    • RS-232 9针标准串行线缆
    • 恩智浦适配器线缆(带RJ45和RS-232连接器)
    • Mini-USB适配器
    • USB线缆(带standardA和miniB连接器)
    • Ethernet cable (RJ45-8 pin connector) (qty 2)
    • Plastic spacer sets Qty 4
    • PCI Panel for MPC8349E-MDS-PB Board
    • SW CodeWarrior®套件(包括JTAG连接单元)
    • HW Getting Started Guide
    • CD: User Information
    •  MPC8349E-MDS-PB板的勘误表文档
  • PQ-MDS-PIB - Platform I/O Board for the 83xx Family
    • AdvancedTCA规格，带4个PMC插槽
    • Allows user to expand the functionality of the MPC8349E-MDS-PB when used along with the module cards
    • PQ-MDS-PIB板套件
      • 带开关的电源延长线缆
      • 25针IEEE 1284并行线缆
      • Serial cable 10 cm D25M to IDC10
      • Parallel cable 10 cm D25M to IDC26F
      • RJ45转IDC8F线缆(两根)
      • LC环回62.5/125光纤线缆(两根)
      • USB Cable StndA Plug to MiniB 1 Meter
      • USB Cable MiniA Plug to StndB 1.5 Meter 1
      • PMC电路板组件隔板(16个)
      • AC-DC Power Supply 48 V/2.7 A
      • PQ-MDS-PIB快速入门指南
      • PQ-MDS-PIB板勘误表
      • PQ-MDS-PIB文档CD
  • PQ-MDS-PMCPCI - 面向83xx系列的PMC转PCI模块卡适配器
    • 可以插入一块PCI卡
    • Supports 3.3 V 32 and 64-bit PCI Bus
  • PQ-MDS-USB - 面向83xx系列的USB扩展模块(单独购买)
    • 访问第二个USB端口
    • 更多的USB PHY (UTMI、ULPI、串行OTG)

更多
