QorIQ® T4240/T4160/T4080多核通信处理器

T4240
正常供应
恩智浦优先级支持 - 帮助您更快地进入市场

点击播放视频

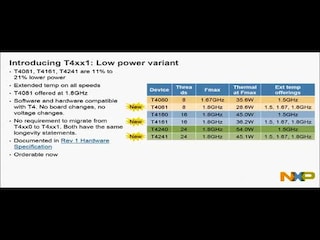

带有24个虚拟内核的T4240是QorIQ® T系列的旗舰产品。该产品与T4160 (16个虚拟内核)及T4080 (8个虚拟内核)共同构成了T4系列。该系列可通过引脚兼容的封装提供高达3倍的性能可伸缩性。还提供低功耗衍生版本：T4241 (24线程)、T4161 (16线程)和T4081 (8线程)。

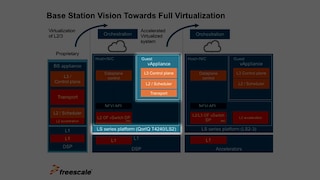

这些产品的运行频率最高可达1.8 GHz，集成1Gbps和10Gpbs以太网、硬件加速以及先进的系统外设，适用于希望通过一个SoC整合控制和数据平台处理的应用，例如服务卡、微型服务器、ADC、WOC、智能NICS和RNC等

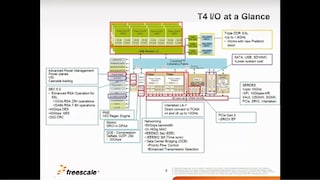

框图

T4240 BD IMG

QorIQ T Series T4240 64-bit Multicore Communications Processors
获取框图PDF

特征

内核复合体

  • T4240/T4241配备12个基于Power Architecture®技术的双线程e6500内核，每个内核带有一个AltiVec®引擎(T4160/T4161为8内核，T4080/T4081为4内核)
  • 4个e6500组成的集群，共享2 MB L2缓存，共3个集群(T4160/T4161为两个集群，T4080/T4081为一个集群)。
  • 运行频率高达1.8 GHz，支持64位ISA (符合Power Architecture v2.06标准)
  • 3个等级的指令： 用户、超级用户、管理程序
  • 1.5 MB CoreNet®平台缓存(T4160/T4161和T4080/T4081上为1 MB)

网络元件

  • SerDes：32通道(T4240/T4241)或24通道(T4160/T4161和T4080/T4081)，频率高达10GHz
    • 支持XAUI、XFI、10Gbase-KR、QSGMII、SGMII、2.5G SGMII、HiGig、HiGig2、Interlaken、PCIe、SRIO和SATA
  • 以太网
    • 多达4x 10GE端口，支持XAUI、XFI、10Gbase-KR和HiGig (T4160/T4161和T4080/T4081为2x 10GE)
    • 多达16x 1GE端口，支持SGMII、QSGMII和RGMII (T4160/T4161和T4080/T4081为13个端口)。
    • 数据包解析、分类和分发，速度高达50 Gb/s
    • 数据中心桥接
  • Interlaken-LA
  • 4个PCIe，两个第2代和两个第3代(T4160/T4161和T4080/T4081为3个PCIe，一个第2代和两个第3代)
  • SR-IOV，带两个PF和128 VF
  • 两个串行RapidIO，5GHz
    • 串行RapidIO消息管理器，用于8至11类消息传送。
  • 两个串行ATA (SATA2.0)控制器
  • 3个8通道DMA引擎
  • Aurora高性能调试端口

加速器和存储器控制

  • 3个64位DDR3和DDR3L SDRAM存储控制器，带ECC支持，工作频率高达1866MT/s (T4160/T4161和T4080/T4081为两个控制器)
  • 基于硬件的加密加速(SEC5.0)，速度高达40Gb/s
  • 数据压缩/解压缩引擎(DCE1.0)，速度高达20Gb/s
  • 模式匹配引擎(PME2.0)，速度高达10Gb/s

基本外设和互连

  • 增强型安全数字主机控制器(SD/MMC/eMMC)
  • 增强型串行外设接口(SPI)
  • 两个USB控制器(USB 2.0)，带有集成式PHY
  • 4个I²C控制器，2个DUART，多个定时器
  • 支持NAND与NOR闪存的集成闪存控制器(IFC)

其他特性

  • 可信引导平台
  • 高级电源管理

更多

对比表

T4080 T2081 T4160 T4161 T4240 T4241
Power Variant Standard Low Standard Low Standard Low
Cores (Dual Threaded) 4 8 12
L2 Cache 2MB 4MB 6MB
CoreNet Platform Cache 1MB 1MB 1.5MB
DDR Controllers 2 2 3
SerDes Lanes 24 24 36
Max 10Gbps Ethernet 2 2 4
Max 1Gbps Ethernet 13 13 16
PCIe ports 3 3 4

We recommend the following Quad Port Gigabit Copper EEE PHY

F104S8A F104X8A
Description QSGMII PHY Standard Temperature QSGMII PHY Extended Temperature
Operating Temperature (°C) 0 - 125 -40 - 125
Package Type 12x12, QFN, 138-pin, 0.65mm pin pitch 12x12, QFN, 138-pin, 0.65mm pin pitch
Read More Product Detail

购买/参数

1-10 / 58 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

预算报价（不含税）

封装类型

封装端接数

内核：内核数量(规范值)

内核类型

运行频率[最高]（MHz）

Junction Temperature (Min to Max) (℃)

L2 Cache (Max) (KB)

L3 Cache (Max) (KB)

以太网类型

PCIe

支持外部存储器

Typical Power

sRIO

T4080NSE7PQB
数据手册

正常供应

100 @ CNY3050.71

BGA1932

1932

8

e6500

1500

0 to 105

2048

1024

10G, 1G, 2.5G

—

DDR3 SDRAM, DDR3L SDRAM

20.4

2

T4080NSE7QTB
数据手册

正常供应

100 @ CNY3813.44

BGA1932

1932

8

e6500

1667

0 to 105

2048

1024

10G, 1G, 2.5G

—

DDR3 SDRAM, DDR3L SDRAM

20.4

2

T4080NSN7PQB
数据手册

正常供应

100 @ CNY2898.21

BGA1932

1932

8

e6500

1500

0 to 105

2048

1024

10G, 1G, 2.5G

—

DDR3 SDRAM, DDR3L SDRAM

20.4

2

T4080NSN7QTB
数据手册

正常供应

100 @ CNY3622.74

BGA1932

1932

8

e6500

1667

0 to 105

2048

1024

10G, 1G, 2.5G

—

DDR3 SDRAM, DDR3L SDRAM

20.4

2

T4080NXE7PQB
数据手册

正常供应

100 @ CNY3416.82

BGA1932

1932

8

e6500

1500

-40 to 105

2048

1024

10G, 1G, 2.5G

—

DDR3 SDRAM, DDR3L SDRAM

20.4

2

T4080NXN7PQB
数据手册

正常供应

100 @ CNY3245.86

BGA1932

1932

8

e6500

1500

-40 to 105

2048

1024

10G, 1G, 2.5G

—

DDR3 SDRAM, DDR3L SDRAM

20.4

2

T4081NSE7PQB
数据手册

正常供应

100 @ CNY3203.50

BGA1932

1932

8

e6500

1500

0 to 105

2048

1024

10G, 1G, 2.5G

3

DDR3 SDRAM, DDR3L SDRAM

16.8

2

T4081NSE7QTB
数据手册

正常供应

100 @ CNY4004.00

BGA1932

1932

8

e6500

1667

0 to 105

2048

1024

10G, 1G, 2.5G

3

DDR3 SDRAM, DDR3L SDRAM

18.6

2

T4081NSE7TTB
数据手册

正常供应

100 @ CNY4449.09

BGA1932

1932

8

e6500

1800

0 to 105

2048

1024

10G, 1G, 2.5G

3

DDR3 SDRAM, DDR3L SDRAM

19.4

2

T4081NSN7PQB
数据手册

正常供应

100 @ CNY3043.10

BGA1932

1932

8

e6500

1500

0 to 105

2048

1024

10G, 1G, 2.5G

3

DDR3 SDRAM, DDR3L SDRAM

16.8

2
