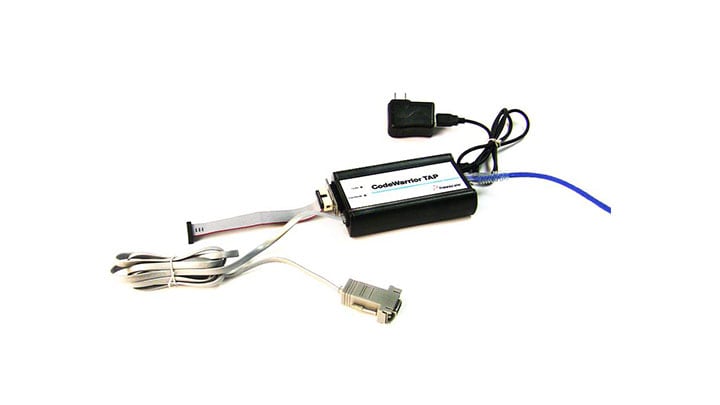

CodeWarrior® TAP

CW_TAP

滚动图片以放大

CodeWarrior® TAP可通过以太网或USB连接到开发人员工作站，并通过标准调试端口(通常为JTAG)对目标系统进行调试。

  • 借助CodeWarrior TAP的以太网连接，您可以对系统进行远程调试，还能高效地与多个开发人员共享同一个系统。
  • 不需要共享系统时，CodeWarrior TAP可通过一根USB线缆直接连接到工作站，通过该USB线缆供电。
  • CodeWarrior TAP与CodeWarrior开发工具和处理器结合使用
  • 在项目的所有阶段，它都是一个关键调试工具，而在经过全面调试的操作系统投入运行之前，它也是一个必不可少的系统调试工具。

产品详情

支持的器件

处理器和微控制器

PowerQUICC II (MPC82xx)

  • MPC8240: 具有集成PCI的集成主处理器

特征

CodeWarrior® TAP

  • Allows either USB or Ethernet (10/100) host connection for the developer workstation
  • USB powered, even when using Ethernet
  • Low-cost removable probe tips sold separately
  • Supports debugging via JTAG interface
  • Automatically supports system voltage levels from 1.2 to 3.3
  • Supports all available core speeds and voltages for supported NXP® processors
  • As a convenience feature, the CodeWarrior can connect to a target systems serial port allowing telnet access to a remotely located system and control of the U-Boot program.
  • In conjunction with the CodeWarrior development system, the CodeWarrior TAP:
    • Programs system flash memory during debugging and development phases of the project, including most popular flash memories, but specifically all flash memories used with NXP development systems
    • Controls the target development system even when the system may have crashed during development
    • Offers complete system visibility and control, including reading/writing of CPU registers, memory mapped registers, block reading/writing of memories, single-step debugging, setting software and hardware breakpoints, and monitoring target system status
    • Gives control over the target system execution, including control of one or all cores, and resets
  • Contact NXP if you are interested in:
    • Integrating this probe into your software
    • Using this probe as your target debug probe
