面向K32 L2B MCU的恩智浦Freedom开发平台

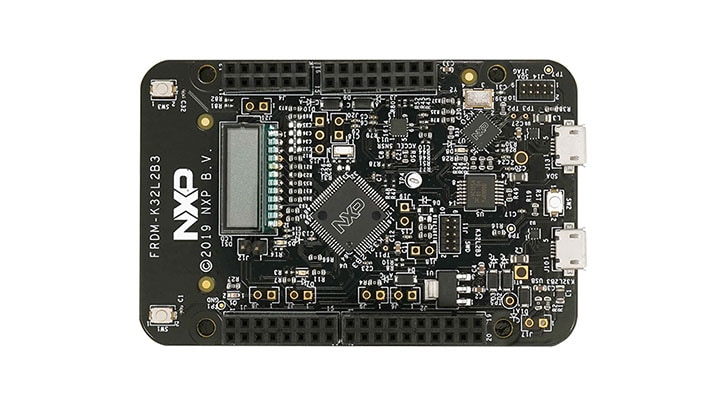

FRDM-K32L2B3

滚动图片以放大

FRDM-K32L2B3 Freedom开发板提供评估和开发K32 L2B MCU系列的平台。该板包括板载调试接口、段式LCD、加速度计/磁力计、全速USB、以及对K32 L2B的MCU I/O的轻松访问。 FRDM-K32L2B3板完全由MCUXpresso工具套件支持，该套件提供设备驱动程序、中间件和示例以支持快速开发，还提供配置工具和可选的免费IDE。

框图

选择框图:

FRDM K32L2B

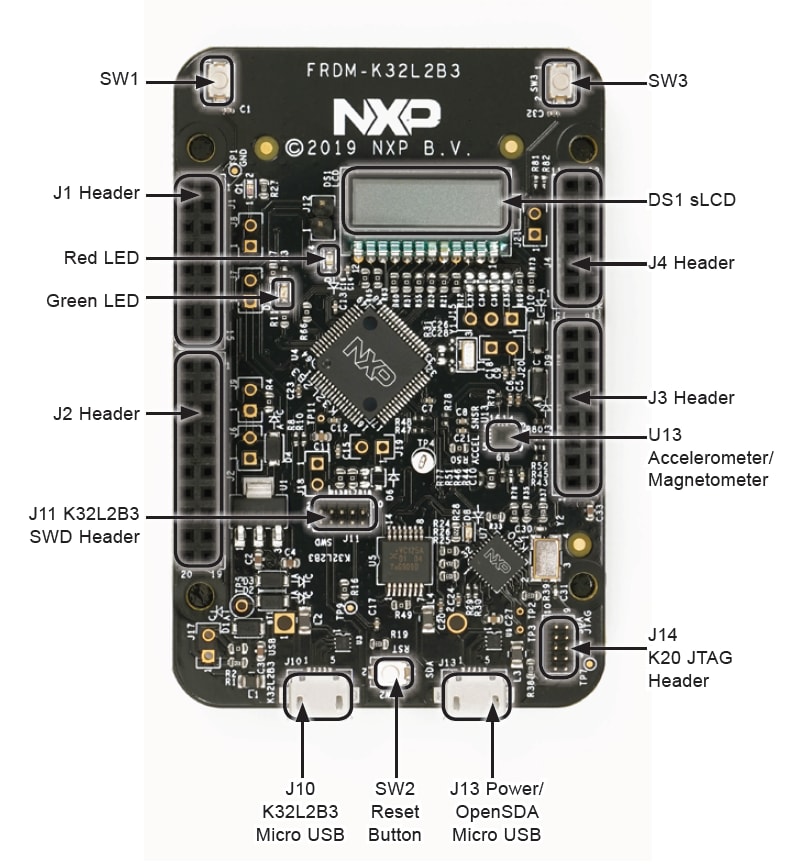

K32L2B3 Block Diagram

FRDM K32L2B

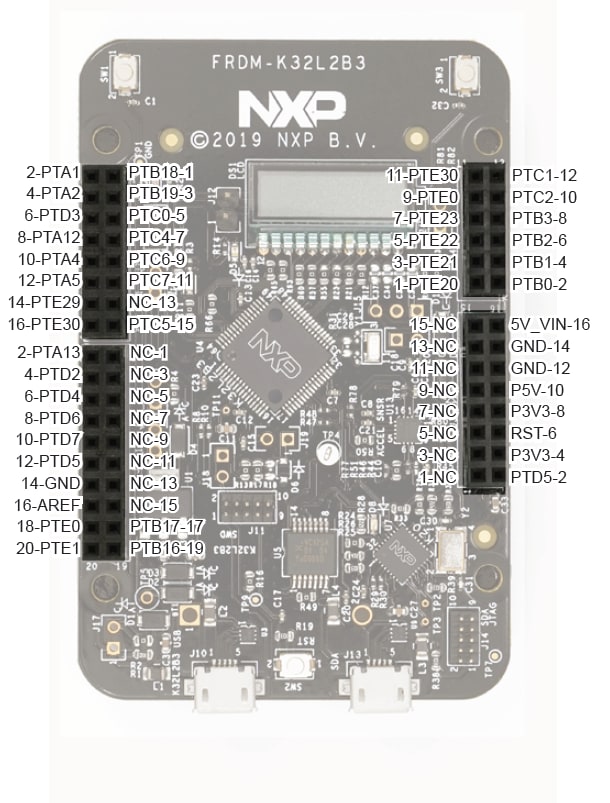

FRDM-K32L2B3 Pin-Outs
获取框图PDF

支持的器件

处理器和微控制器

K32 L系列Cortex-M4/M0+

  • K32-L2: 超低功耗, 高度集成MCU

特征

微控制器

  • K32L2B311VLH0A MCU的运行频率高达48 MHz
  • 256 kB闪存
  • 32 kB SRAM存储器

连接

  • 全速USB端口, 具有可实现设备功能的Micro A/B接头
  • 可轻松访问K32 L2B MCU I/O

调试

  • OpenSDA调试接口
  • P&E调试接口具有运行控制调试功能并兼容IDE工具

传感器

  • 恩智浦FXOS8700CQ数字传感器，3D加速度计（±2g /±4g /±8g）+ 3D磁力计

能源管理

  • 灵活的供电选项

扩展选项

  • 规格与Arduino® Rev3引脚布局兼容

LCD

  • 段式LCD

购买选项

FRDM-K32L2B3-Image

点击展开

  • FRDM-K32L2B3

  • NXP Freedom Development Platform for K32 L2B MCUs.

  • 套件包含：

    • 一块FRDM-K32L2B3板和一根USB数据线
  • $28.75 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 25
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
