面向低压、3相PMSM电机控制的恩智浦Freedom开发平台

FRDM-MC-LVPMSM 正常供应

滚动图片以放大

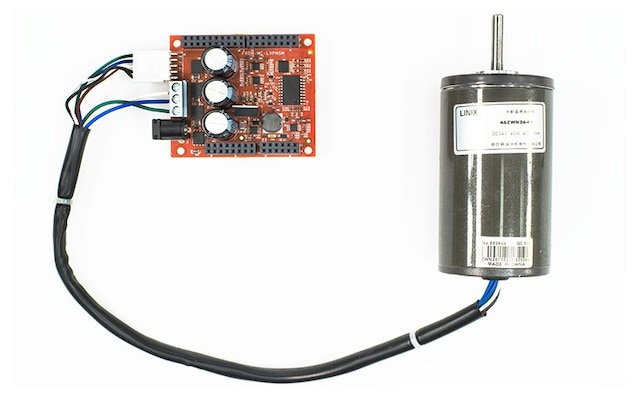

FRDM-MC-LVPMSM低压、3相永磁同步电机(PMSM) Freedom开发板平台为您的设计应用增添了旋转或者线性运动等电机控制功能。

This evaluation board, in a shield form factor, when combined with NXP®s Permanent Magnet Motor Control Reference Software, effectively turns a Freedom development board platform into a complete motor control reference design, compatible with existing Freedom development platforms, FRDM-KV31F, and FRDM-KV10Z.

产品详情

支持的器件

处理器和微控制器

KV系列Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz，入门级3相FOC / 无传感器电机控制微控制器(MCU)，基于Arm® Cortex®-M0+内核
  • KV3x: Kinetis® KV3x-100–120 MHz,  高级3相FOC / 无传感器电机控制MCU，基于Arm® Cortex®-M4

特征

电源管理

  • 电源输入电压DC：24-48 VDC
  • 输出电流最高为5 A RMS
  • 电源反向极性保护电路
  • 5.5 VDC辅助电源，为FRDM MCU板供电
  • 3相桥逆变器(6组MOSFET)
  • 带有过流和欠压保护的3相MOSFET栅极驱动器

传感器

  • 模拟检测(DC总线电压、DC母线电流、3相反电动势电压)
  • 电机速度/位置传感器接口(霍尔编码器)
  • Freedom电机控制接头与Arduino® Rev3引脚布局兼容

购买选项

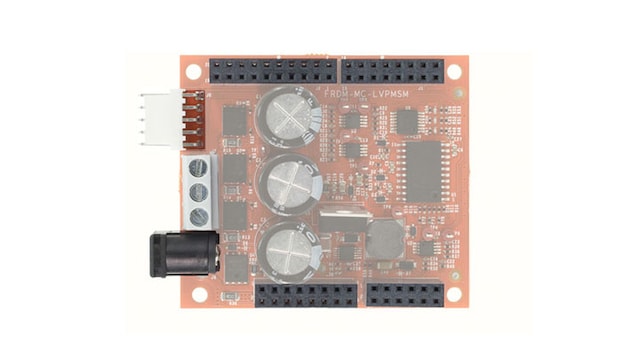

FRDM-MC-LVPMSM-Image

点击展开

  • FRDM-MC-LVPMSM
    正常供应

  • NXP Freedom Development Board Platform, Kinetis V MCU, PMSM Motor Control.

    • FRDM-MC-LVPMSM硬件
    • 快速入门卡片
    • 所需的其他硬件：一个3相BLDC电机(如FRDM-MC-LVMTR)或满足驱动器规格的自有器件(未包含)、一个24V/5A电源和一个兼容的Freedom微控制器电路板(未包含)。
  • $85.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 18
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
