USB ColdFire Multlink

USBMLCF 正常供应

滚动图片以放大

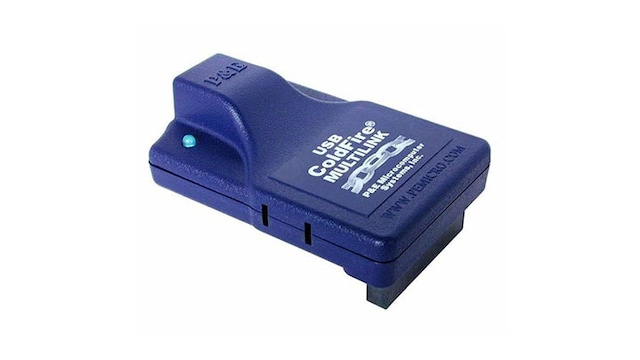

P&E’s USB ColdFire® Multilink is an easy-to-use debug and programming interface for the ColdFire V2/V3/V4 line of MPUs.

The USB ColdFire Multilink is supported by P&E software, Our CodeWarrior®, and other 3rd-party software (available separately). P&E’s ColdFire In-Circuit Programmer can be used with the Multilink to program flash memory devices. The USB ColdFire Multilink also works with P&E’s ColdFire In-Circuit Debugger to control the target processor’s execution, read/write registers and memory, and perform full C source-level debug.

NOTE: The USBMLCF interface is being discontinued and replaced by the U-MULTILINK-FX interface.

产品详情

支持的器件

处理器和微控制器

ColdFire® V2处理器

  • MCF5206E: 带DMA的集成式ColdFire®微处理器
  • MCF520X: 集成式ColdFire® V2外部存储器和以太网微处理器
  • MCF5227X: V2微处理器，带触摸屏、LCD控制器和USB
  • MCF523X: 集成式V2 ColdFire®微处理器
  • MCF524X: 集成式ColdFire® V2微处理器
  • MCF525X: 集成式ColdFire® V2微处理器
  • MCF527X: ColdFire® V2集成式微处理器
  • SCF5250: Integrated ColdFire® V2 Microprocessor

ColdFire® V3处理器

  • MCF5301x: 低功耗MPU，具有双以太网、USB和音频子系统
  • MCF530X: 集成式ColdFire® V3微处理器
  • MCF532X: 带LCD驱动、以太网、USB和CAN的ColdFire® V3微处理器
  • MCF537X: 带以太网、USB和加密功能的ColdFire V3微处理器

ColdFire® V4处理器

  • MCF540X: 集成式ColdFire® V4微处理器
  • MCF5445X: 32-bit Microprocessor with USB On-The-Go, Ethernet, PCI, DDR2/DDR controller and Encryption
  • MCF547X: 带以太网和加密功能的ColdFire® V4微处理器
  • MCF548X: ColdFire® V4e Microcontroller with Ethernet, CAN and Encryption

Features

Microcontroller

  • Compatible with MCF52xx, MCF53xx, and MCF54xx families of MCUs

Connectivity

  • USB 2.0 interface from PC to Multilink allows for fast, easy programming and debugging, with the ease and compatibility of the USB interface. USB cable is included

Power Management

  • Target voltage: 1.8 V - 5.5 V
  • Draws power from the USB bus - no separate power supply required (draws less than 1 mA from the target)

Debug

  • Works with P&E's debugger and flash programmer, Our CodeWarrior, and development suites from many other third parties

Hardware Features

  • Fast, hassle-free USB 2.0 communications interface
  • Draws power directly from the USB port - no external power supply needed
  • Multivoltage support for targets ranging from 1.8 to 5.5 Volts
  • Compact size

Software Compatibility

  • P&E Power Architecture BDM In-Circuit Debugger
  • P&E Power Architecture BDM In-Circuit Programmer
  • CodeWarrior
  • Greenhills Multi
  • CodeSourcery GNU Tools
  • Mentor Graphics Edge

购买选项

USBMLCF-Image

点击展开

  • USBMLCF

  • P&E USB BDM INTERFACE MCF52XX/53XX/54XX.

  • CNY 2,056.71
  • 数量为 1
