集成式ColdFire® V2微处理器

MCF524X
不推荐用于新设计
  • 建议不要在新设计中使用本页介绍的产品。

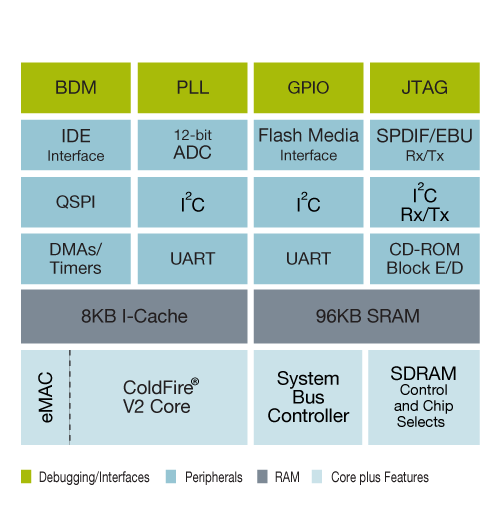

滚动图片以放大

MCF5249微处理器使广受欢迎的ColdFire V2内核具有高性能，在140 MHz频率时的性能可达125 (Dhrystone 2.1) MIPS，而且功耗极低(1.3 mW/MHz)。这款高度集成的微处理器有一套丰富的ColdFire外设组合，除了增强型乘法累加器(eMAC)、大容量片上存储器(96 KB SRAM、8 KB I-Cache)及一个SDRAM控制器外，还增加了音频增强功能和模拟电路功能。该器件适用于需要为文件管理、数据缓冲和用户界面提供强大的控制处理的应用，也适用于安全、游戏、医疗和数字音频等主要市场中的信号处理应用。这个高度集成、高性能且低功耗的领先封装器件提供高质量的软件模块、轻松的代码再利用以及广泛的第三方工具支持，可以加快产品的上市速度。

产品详情

特征

  • 96 KB静态随机存取存储器(SRAM)
  • 8 KB指令缓存
  • eMAC
  • 调试模块(后台和实时)
  • 同步动态随机存取存储控制器(SDRAM)
  • 系统集成(锁相环，软件看门狗)
  • 集成外设
    • 4个可编程片选线路
    • 4通道DMA
    • 两个独立的通用异步接收器/发射器(UART)
    • 两个独立的16位定时器
    • 两个I²C接口
    • 两个独立的6位通道
    • 队列串行外设接口(QSPI)
    • CD-ROM块解码器/编码器
