Flexis AC演示板

DEMOAC
正常供应

滚动图片以放大

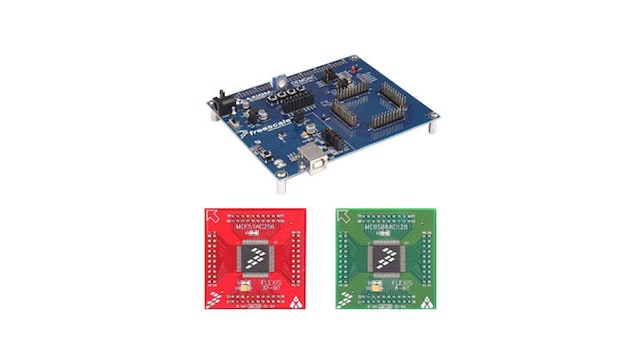

The DEMOAC provides a platform supporting a line of NXP® MCUs that are part of the Flexis® Continuum.

  • 目标MCU安装在插入式模块上，这样便可以快速更换目标MCU
  • DEMOACEX是外设扩展板，旨在与DEMOAC板连接
  • The DEMOACEX applies the NXP MC33794 E-field imaging sensor connected to touchpad in various arrangements

产品详情

支持的器件

处理器和微控制器

ColdFire® V1处理器

  • MCF51AC: Flexis 32位ColdFire. V1微控制器

8位S08 MCU

  • S08AC: 8位Flexis® AC128/96/60/48/32 MCU

特征

DEMOAC

  • 集成式，USB BDM
  • 电源开关
  • 电源输入选择接头
    • 板载5V稳压器
    • USB BDM供电
    • 可以选择通过连接器J1供电
  • 4MHz XTAL振荡器
  • 3轴加速度传感器
  • LEDs – four users, one power, one reset
  • Push button switches – four users, one reset
  • 5KΩ POT
  • 用于断开用户功能的跳线
  • 80针MCU端口用于访问MCU信号
  • 4个20针接头支持插入式MCU模块
  • IIC端子选择接头

DEMOACEX

  • 80针MCU端口用于连接DEMOAC板
  • 9通道电场传感器
  • 带转轮和按钮的电场触摸板
  • 两个低通RC滤波器
  • 用于电场传感器的5V – 12V升压开关电源
  • LED – 10个指示用户操作，一个电场工作指示灯
  • CAN 2.0 A/B PHY，带三位接头
  • 用于断开所有I/O信号的跳线
  • SOIC and TSSOP pads for external ICs
  • 大空间通孔原型设计区域，邻接5V和GND电压

购买选项

DEMOACKIT-Image

点击展开

  • DEMOACKIT
    正常供应

  • DEMO KIT DEMOAC, DC9S08AC128/DCF51A256.

    • DEMOAC板
      • S08AC128的子卡
      • 51AC256的子卡
      • 通用电源适配器
      • CodeWarrior Development Studio DVD
      • 快速入门指南
      • 用户手册
    • DEMOACEX板
      • 快速入门指南
      • 用户手册
        • 注意：扩展板单独销售
  • 数量为 1
从分销商处购买
