Flexis JM演示板

DEMOJM
停产

滚动图片以放大

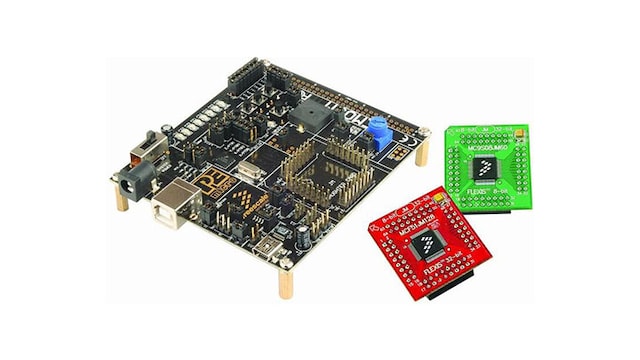

The Flexis® DEMOJM is a cost-effective demonstration board enabling quick MCU evaluation and includes a DEMOJM base board, a red MCF51JM128 daughter card and a green MC9S08JM60 daughter card.

该演示板配有MC9S08JM60，起始包括一个片上USB器件控制器和收发器，然后移到MCF51JM128的片上USB主设备和双模式控制器。

DEMOJM快速入门指南可帮助您在几分钟内准备好开发您的USB应用。面向8位Flexis JM60的DEMOJM实验辅助材料和面向32位Flexis JM128的DEMOJM实验辅助材料展示了其中每个器件随附的CMX USB-LITE协议栈附带的USB应用示例。

产品详情

支持的器件

处理器和微控制器

ColdFire® V1处理器

  • MCF51JM: Flexis 32位V1 ColdFire USB微控制器

特征

数据连接

  • 虚拟串行端口
  • 通过Mini-AB USB连接器支持USB设备模式和主设备模式
  • CAN收发器

传感器

  • NXP® MMA7260QT 3-axis accelerometer
  • I²C pullups
  • ADC with 10 K Ohm POT

用户组件

  • 8个用户LED
  • 一个压电式蜂鸣器
  • 5个按钮

购买选项

DC51JM128-Image

点击展开

  • DC51JM128
    正常供应

  • DC51JM128 DAUGHTER CARD.

  • 数量为 1
