带DMA的集成式ColdFire®微处理器

MCF5206E
使用寿命终止
  • 建议不要在新设计中使用本页介绍的产品。

滚动图片以放大

MCF5206e集成式微处理器集成了一个ColdFire® V2内核及多种外设功能，例如DRAM控制器、定时器、串行与并行接口，以及系统集成。该器件是MCF5206的增强版。因为增加了4 KB I-cache和8 KB SRAM，并提高了频率，MCF5206e比MCF5206的性能更高。除此以外，该器件还集成了一个额外的乘法累加(MAC)模块、硬件除法器和2通道DMA，同时保持了与MCF5206的引脚兼容。

产品详情

框图

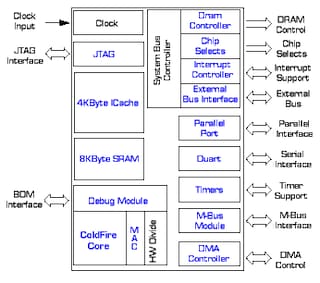

Integrated ColdFire MCF5206E Microprocessor with DMA Block Diagram

Integrated ColdFire<sup>&#174;</sup> MCF5206E Microprocessor with DMA Block Diagram
获取框图PDF

特征

  • ColdFire® V2内核
  • MAC和除法器
  • 4 KB直接映射的指令缓存
  • 8 KB片上SRAM
  • DRAM控制器，支持EDO和页面节点的DRAM
  • 双通道DMA控制器
  • 两个通用同步/异步接收器/发射器(UART)
  • 双16位通用多模定时器
  • 与I²C兼容的总线
  • 系统接口
  • 支持系统调试
  • 全静态3.3v运行，可接受5v电压输入
  • 160引脚QFP封装，与MCF5206引脚兼容
  • 8位通用并行I/O端口
  • 运行频率为54 MHz时，性能可达50 MIPS
  • 具有40和50 MHz运行频率
