MCF52211评估板

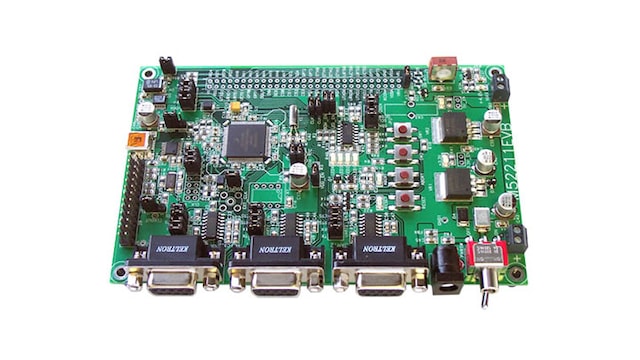

The M52211EVB evaluation board provides an excellent vehicle for embarking on a high-performance embedded design of theMCF5221x Family of ColdFire® microprocessors. With USB 2.0 On-The-Go connectivity, breakout connectors for serial interfaces (including UART, I2C, QSPI, GPIO, and ADC), and support for a Zigbee-ready daughter card, this complete package includes all the components for realizing a MCF5221x design quickly and easily.

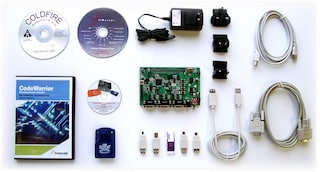

这款高性价比的评估套件提供一系列令人印象深刻的配套软件。Included with the evaluation kit is a fully licensed, complimentary Special Edition of the CodeWarrior® Development Studio for ColdFire Architectures for development of applications up to 128Kbytes code size, as well as a host of ther low cost and professional tools from leading 3rd party tool vendors.
此评估板配有带128KB内置闪存的80MHz MCF52211微控制器。MCF52211微控制器除具有与其他受支持器件相同的一组功能模块和接口以外，还具有额外的功能模块和接口。
产品详情
特征
存储器件
- MCF52211器件中内置16 KB SRAM
- MCF52211器件中内置128 KB闪存
用户接口
- USB 2.0 OTG模块
- 中止/IRQ7逻辑开关(去抖)
- PLL Clocking options - Oscillator, Crystal, or SMA for external clocking signals
- 3个UART接口
- Supports Zigbee-ready RF daughter card
- 串行接口分线接头(包括I2C、QSPI、通用IO和ADC)
- LEDs for power-up indication, general-purpose I/O, and timer output signals
- ADC专用的电位计和光感器
- CAN收发器接口
- BDM/JTAG接口
- Super Cap for battery life evaluation
软件
- 驻留固件程序包，提供完整的编程和操作环境(dBUG)
- 领先的第三方工具供应商提供的评估软件
