带LCD驱动、以太网、USB和CAN的ColdFire® V3微处理器

MCF532X
不推荐用于新设计

滚动图片以放大

MCF532X系列微处理器在ColdFire®器件上引入了第一款集成式LCD控制器，满足了市场对人机接口(HMI)和工业控制应用的日益增长的需求，同时保持高度集成的丰富连接和安全功能。

产品详情

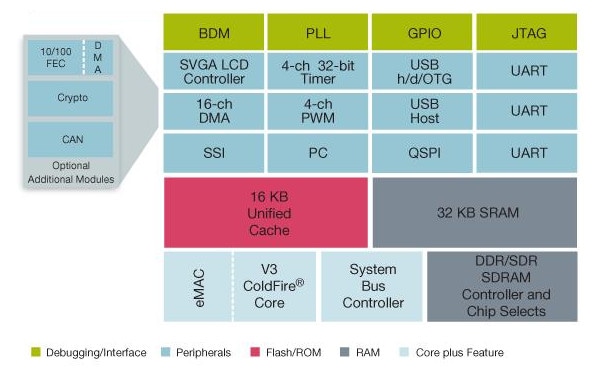

框图

ColdFire MCF532X Microprocessor Block Diagram

ColdFire MCF532X Microprocessor Block Diagram
获取框图PDF

特征

  • 在240 MHz的频率时，ColdFire® V3内核的性能可达211 (Dhrystone 2.1) MIPS
  • 32 KB RAM
  • 16 KB I/D缓存
  • 增强型乘法累加器(MAC)模块处理DSP之类的指令
  • 集成外设
    • USB Host/USB OTG
    • FlexCAN 2.0B
    • 10/100快速以太网控制器(FEC)
    • 3个通用异步接收器/发送器(UART)
    • I²C总线接口
    • 队列串行外设接口(QSPI)
    • 同步串行接口(SSI)
    • 脉宽调制(PWM)：四通道
    • 实时时钟
    • DMA：16通道
    • 16位DDR/32位SDR SDRAM控制器
    • 集成式SVGA LCD控制器
  • 本产品包含在恩智浦产品长期供货计划中，自推出后至少保证15年供货

购买/参数

4 结果

不包含 4 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装类型

封装端接数

预算报价（不含税）

MCF5327CVM240
数据手册

建议不要在新设计中使用该软件

LBGA196

196

10K @ CNY97.65
MCF53281CVM240
数据手册

建议不要在新设计中使用该软件

LBGA256

256

10K @ CNY135.20
MCF5328CVM240
数据手册

建议不要在新设计中使用该软件

LBGA256

256

10K @ CNY105.19
MCF5329CVM240
数据手册

建议不要在新设计中使用该软件

LBGA256

256

10K @ CNY112.65
