低功耗PowerQUICC® II Pro处理器带有DDR2、eSDHC、PCI Express、eTSEC、USB、IEEE® 1588

MPC8308 停产

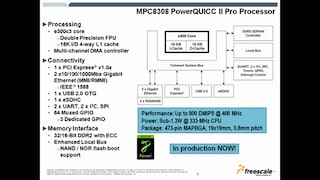

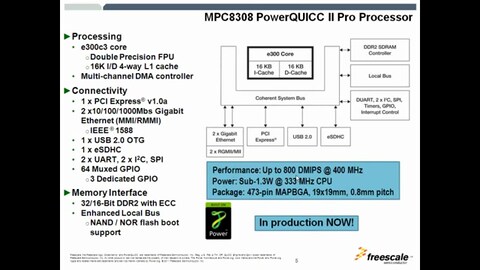

MPC8308 PowerQUICC<sup>®</sup> II Pro处理器 - 技术概述

点击播放视频

MPC8308处理器针对低成本和低功耗进行了优化，提供高度集成的PowerQUICC® II Pro处理器，可满足网络应用的需求，如智能电网家庭能源网关、数据集线器、无线LAN接入点、无线家庭小区基站、消费电子印刷以及包括工业控制和工厂自动化在内的工业应用等。MPC8308处理器扩展了PowerQUICC II Pro系列，以较低的成本实现了更高的CPU性能、高速外设及低功耗运行。

对于网络应用，千兆以太网MAC可连接到有线网络，而PCI Express®和SDIO接口可连接到无线LAN或3G和4G调制解调器设备。MPC8308具有集成式IEEE® 1588 版本2时间同步功能，为时间敏感的电信服务、工业网络交换机、电力线网络和测试/测量设备等应用提供极其精准的时钟同步。

产品详情

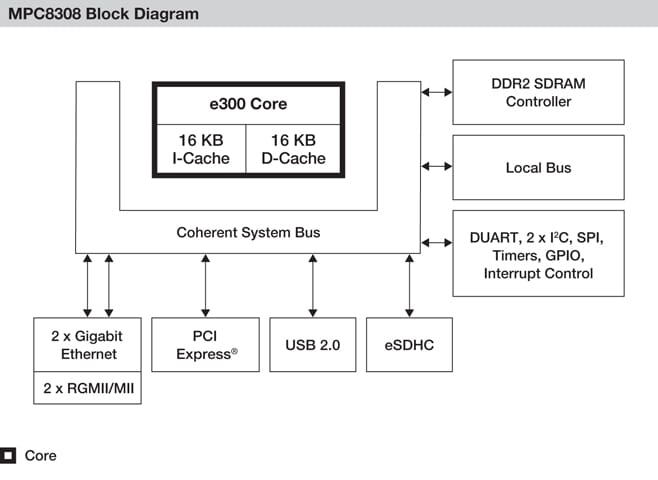

框图

Freescale PowerQUIICC MPC8308 Communications Processor Block Diagram

NXP<sup>&#174;</sup> PowerQUIICC MPC8308 Communications Processor Block Diagram
获取框图PDF

特征

  • e300c3内核基于Power Architecture® 技术，运行频率高达400 MHz
  • 16 KB指令缓存/16 KB数据缓存
  • DDR2存储控制器，266 MHz数据传输速率
  • 本地总线控制器
  • 1个PCI Express接口
  • 2个10/100/1000 MAC、MII、RGMII
  • USB 2.0 主设备/设备
  • eSDHC
  • DUART
  • 两个I²C
  • 串行外设接口
  • IEEE 1588v2时间同步
  • 当频率达到333 MHz时，小于1.23W (典型值)
  • 473引脚MAPBGA封装，19 mm x 19 mm
  • 本产品包含在恩智浦产品长期供货计划中， 自推出后至少保证10年供货
