VR5500 / FS5502 PMIC评估板

KITVR5500AEEVM
正常供应

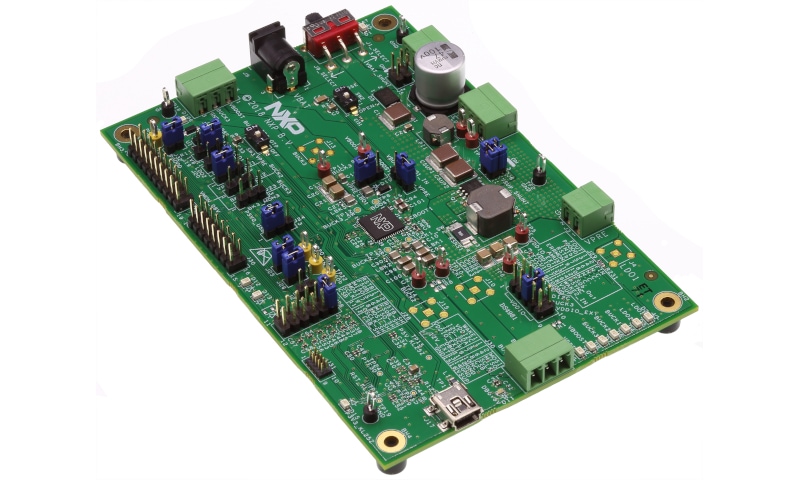

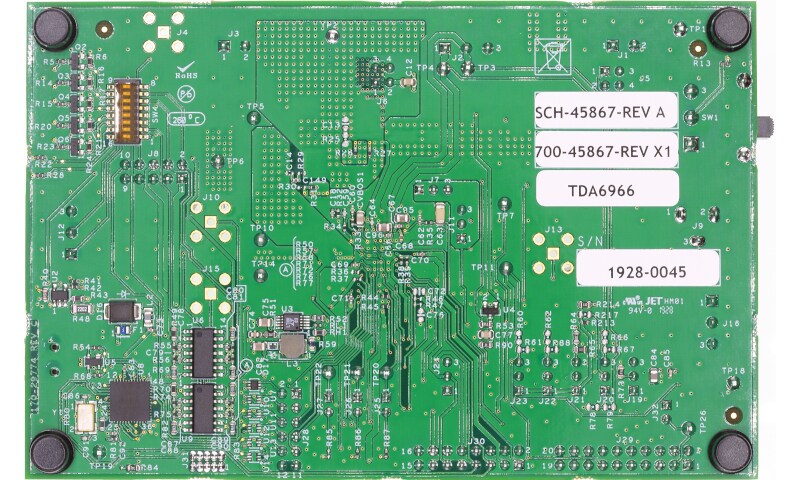

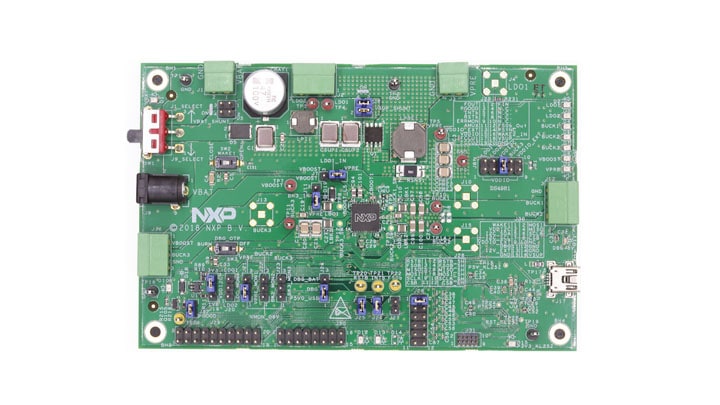

滚动图片以放大

KITVR5500AEEVM可以灵活地使用此设备的所有功能，并在应用的主要部分进行测量。板上安装的KL25Z MCU与FlexGUI软件相结合，可以在读写模式下访问寄存器。所有稳压器均可通过连接器访问。非用户信号，比如DC/DC开关节点，被映射到测试点上。

该板可以在仿真或OTP模式下运行。在仿真模式下，只要有电源供应，板配置仍然有效。OTP模式使用熔断配置。

框图

选择框图:

VR5500, High Voltage PMIC Block Diagram

FS5502, High Voltage PMIC Block Diagram
获取框图PDF

支持的器件

电源管理

安全SBC

  • VR5500: 具有多个SMPS的高压PMIC
  • FS5502: 具有多个SMPS和LDO的高压PMIC，S32Rx的主要配套芯片

特征

通用规格

  • VBAT电源连接器(插孔和Phoenix)
  • VPRE输出能力高达10A(外部MOSFET)
  • VBUCK1/2处于独立(默认)或多相模式(VBUCK2仅用于VR5500)
  • VBUCK3峰值可达3.6 A
  • VBOOST 5.0 V或5.74 V，最高800 mA (仅用于VR5500)
  • LDO1和LDO2，从1.1 V到5.0 V，最高400 mA(LDO2仅用于VR5500)
  • 点火钥匙开关
  • 嵌入式USB连接，方便连接软件GUI(接入I2C总线、IO、RSTB、INTB、Debug、MUX_OUT(仅用于VR5500)、稳压器)
  • 指示信号或稳压器状态的LED
  • 支持OTP熔断功能
  • 用于寄存器访问、OTP仿真和编程的USB连接

购买选项

KITVR5500AEEVM-Image

点击展开

  • KITVR5500AEEVM
    正常供应

  • VR5500 / FS5502 PMIC Evaluation Board.

    • KITVR5500AEEVM评估板
    • 电源配套连接器
    • USB Mini线缆A型公头/B型公头
  • $287.50 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 21
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
