MCX W71x无线MCU的FRDM开发板

FRDM-MCXW71
正常供应

滚动图片以放大

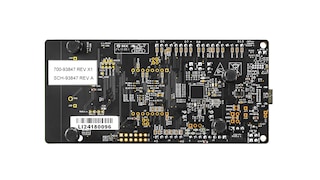

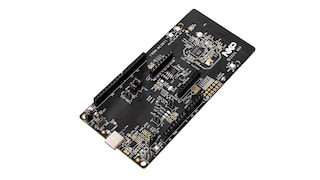

FRDM-MCXW71是一款紧凑且可扩展的开发板，可让您快速基于MCX W71无线MCU开展原型设计。它可以轻松地评估MCX W71对BLE、Zigbee、Thread和Matter的多协议无线支持。该板包括一个板载MCU-Link调试器、便于访问MCU I/O的行业标准头、一个加速度传感器、一个光传感器和一个外接SPI闪存。通过扩展板中心 提供多个附加板，而通过应用代码中心 则可以轻松使用软件示例，这些都是MCUXpresso Developer Experience（MCUXpresso开发人员体验）的组成部分。

产品详情

框图

MCXW71-FRDM板

MCXW71-FRDM Board
获取框图PDF

特性

微控制器

  • MCX W71 Arm™ Cortex™ -M33内核，主频为96MHz，1MB的应用闪存，256KB radio flash

存储器扩展

  • MX25R6435FM2IL0 8 MB SPI闪存

连接

  • BLE、Zigbee、Thread和Matter
  • SPI/I²C/UART通过Arduino®、mikroBUS或Pmod™接头
  • CAN-FD收发器

调试

  • 带有CMSIS-DAP的板载MCU-Link调试器
  • JTAG/SWD连接器

传感器

扩展选项

  • Arduino®接头
  • mikroBUS™
  • Pmod™（未安装）

用户接口

  • RGB用户LED，复位、ISP、唤醒按钮

购买选项

FRDM-MCXW71-Image

点击展开

  • FRDM-MCXW71
    正常供应

  • FRDM Development Board for MCX W71x Wireless MCUs.

  • 套件包含

    • FRDM-MCXW71
    • 快速入门指南
    • USB Type-C线
  • $30.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: >100
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
