评估套件 - MC33908，带降压、升压、LIN的安全SBC

KIT33908LAEEVB 正常供应

滚动图片以放大

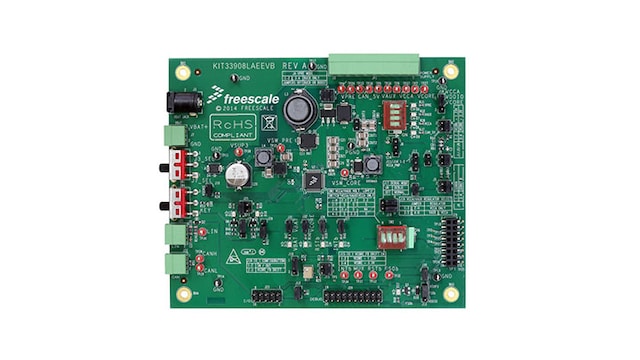

KIT33908LAEEVB评估板展示了MC33908电源系统基础芯片的功能。这些IC配备智能电源管理系统，包含针对最新ISO26262汽车功能安全标准的安全功能。该评估板为独立电路板，可配合兼容的微控制器或PC使用。在后一种情况下，需要使用SPI/USB接口板配件。

支持的器件

电源管理

安全SBC

  • MC33908: Safe System Basis Chip with Buck and Boost DC/DC up to 1.5 A on Vcore

特征

数据连接

  • LIN总线
  • CAN总线
  • IO接头(IO_0至IO_5)

电源管理

  • VBAT电源可以通过电源插头(2 mm)或phoenix接头供电
  • VCORE配置：1.23 V或3.3 V
  • VCCA配置：
    • 5.0 V/3.3 V
    • 内部晶体管或外部PNP
  • VAUX配置：
    • 3.3 V或5.0 V
    • 启动时启用或禁用

调试

  • 调试接头(SPI总线，CAN数字，LIN数字，RSTb，FSOb，INTb，调试，MUX_OUT)

用户组件

  • 点火钥匙开关
  • 向LED发送信号，以表明信号或稳压器的状态

购买选项

KIT33908LAEEVB-Image

点击展开

  • KIT33908LAEEVB
    正常供应

  • Evaluation kit - MC33908, Safe System Basis Chip with Buck and Boost and LIN.

    • 组装和测试好的评估板/模块，放在防静电袋中
    • 快速入门指南，模拟工具
    • 保修卡
  • $200.51 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
