评估板 - MC33907，安全DC/DC，高达800 mA

KIT33907AEEVB
正常供应

滚动图片以放大

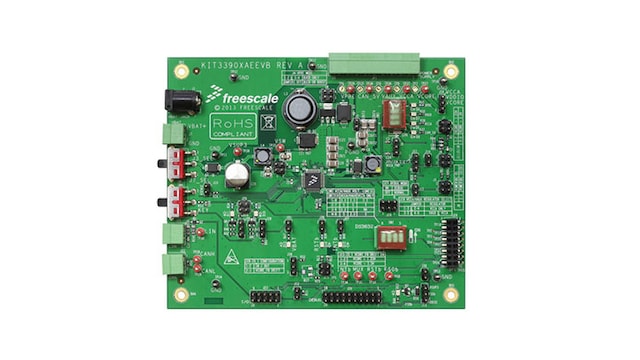

KIT33907AEEVBE评估板展示了恩智浦 MC33907电源系统基础芯片的功能。

  • 这些IC配备智能电源管理系统，包含针对最新ISO26262汽车功能安全标准的安全功能。
  • 该评估板为独立电路板，可配合兼容的微控制器或PC使用；配合PC使用时有必要使用SPI/USB配件接口板。

支持的器件

电源管理

安全SBC

  • MC33907: 安全系统基础芯片，DC/DC，频率高达800mA

特征

基本功能

  • LIN总线
  • CAN总线

数据连接

  • IO接头(IO_0至IO_5)

电源管理

  • VBAT电源可以通过电源插头(2 mm)或phoenix接头供电
  • VCORE配置，1.23 V或3.3 V
  • VCCA配置，5.0 V/3.3 V
  • VAUX配置，3.3 V，或5.0 V
  • 启动时启用或禁用
  • 点火钥匙开关

调试

  • 调试接头(SPI总线，CAN数字，LIN数字，RSTb，FSOb，INTb，调试，MUX_OUT)

组件

  • 向LED发送信号，以表明信号或稳压器的状态
  • 内部晶体管或外部PNP

购买选项

KIT33907AEEVB-Image

点击展开

  • KIT33907AEEVB
    正常供应

  • Evaluation Kit - MC33907, PowerSBC with High Speed CAN&LIN transceivers.

    • 组装和测试好的评估板/模块，放在防静电袋中
    • 快速入门指南，模拟工具
    • 保修卡
  • $161.47 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
