PN7220：高性能单芯片NFC控制器，遵从EMVCo 3.1标准和NFC Forum规范

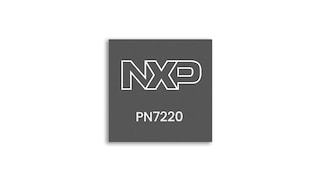

PN7220
正常供应

滚动图片以放大

为了更广泛地推广卡片和移动支付，Europay、Mastercard和Visa（EMV）的POS机终端正在变得更加轻便，通过软件和后端安全措施来替代传统的硬件安全方案。即用型移动设备，如智能手机，已经能够充当支付卡的接收终端，即SoftPOS。

这款高度集成的NFC控制器实现了设计的简化，将支付与其他服务相结合，不仅性能卓越，还通过精简设计极大地节省了空间，可轻松从现有的NFC读卡器（包括PN5190）进行迁移。

NCI接口实现了与Android 13的无缝集成。它将强大的发射器和高灵敏度的接收机相结合，确保即使在具有挑战性的环境中也能达到EMVCo 3.1的模拟和数字L1级。

PN7221版本增加了对Apple ECP的支持。

框图

选择框图:

PN7220

PN7220

PN7220支持的架构

Supported Architectures
获取框图PDF

特性

支持的NFC Forum模式

  • 读写器模式：ISO/IEC14443-A&B、FeliCa™、MIFARE 1K/4K、NFC Forum type 2/3/4A/4B/5、MIFARE卡系列、ISO/IEC15693
  • 卡仿真模式：NFC Forum T4T (ISO/IEC14443-A)

接触式接口

  • 多达3个触点接口插槽（带TDA8035）

灵活的主机接口

  • 电源电压：1.8V或3.3V
  • 主机接口：用于1个CPU连接的I2C（高达3.4Mb/s）或用于两个CPU的I2C和SPI（高达15Mb/s）
  • 改进同步的IRQ信号
  • 符合NCI 2.2的协议

快速认证

  • 遵从免接触式EMVCo 3.1 L1标准（模拟和数字）
  • 符合NFC Forum规范（模拟和数字），设备要求CR13
  • 由NFC Cockpit配置工具提供支持

高性能NFC控制器

  • 射频发射器供电电压：2.4至5.7V
  • DC/DC激活时的最大RF驱动器电流：350mA (2W)
  • 检测低功耗卡

OS支持

  • Android 13

固件

  • 固件更新，便于维护

温度

  • 温度范围：-40至+105°C

封装

  • 标准VFBGA64封装（4.5x4.5mm）

更多
