USB NFC集成式解决方案

PN5331B3HN
不推荐用于新设计

PN533是一款高度集成的收发器模块，适用于基于80C51微控制器内核的13.56 MHz免接触式通信。它支持6种不同的工作模式：

  • ISO/IEC 14443A/MIFARE读写模式
  • FeliCa读写模式
  • ISO/IEC 14443B读写模式
  • ISO/IEC 14443A/MIFARE卡MIFARE 1 KB或MIFARE 4 KB仿真
  • FeliCa Card仿真
  • ISO/IEC 18092、ECMA 340点对点

PN533集成解调器和解码器，用来处理来自ISO/IEC 14443A/MIFARE兼容型卡片和应答器的信号。PN533处理完整的ISO/IEC 14443A成帧和错误检测（奇偶校验和CRC）。

PN533支持MIFARE 1 KB或MIFARE 4 KB仿真产品。PN533支持采用MIFARE较高的传输速率（高达424 kb/s）进行双向非接触式通信。

PN533可解调并解码FeliCa编码信号。PN533处理FeliCa成帧和错误检测。PN533支持采用FeliCa较高的传输速率（高达424 kb/s）进行双向非接触式通信。

PN533支持第2层和第3层ISO/IEC 14443 B读写通信模式，但不支持防干扰。防干扰必须通过固件和上层实现。

在卡片仿真模式中，PN533可根据FeliCa或ISO/IEC 14443A/MIFARE卡接口方案回应读写命令。PN533从其发射器或从驱动外部有源电路的LOADMOD引脚生成负载调制信号。只有通过NFC-WI/S²C接口配合安全IC使用，才能提供完整的安全卡功能。

PN533符合ECMA 340和ISO/IEC 18092 NFCIP-1无源和有源通信模式标准，能与其他NFCIP-1兼容型器件进行通信，通信时传输速率高达424 kb/s。PN533可处理完整的NFCIP-1成帧和错误检测。

PN533收发器可连接外部天线以实现读写模式或Card/PICC模式，无需任何有源器件。

PN533支持下列主机接口：

  • USB 2.0全速接口（总线供电或非总线供电）
  • 高速UART (HSU)

PN533还具有主I²C接口，可在I²C外设(即存储器)上实现驱动。

另外，附带电源开关以向加密IC供电。

更多

查看产品图片

产品详情

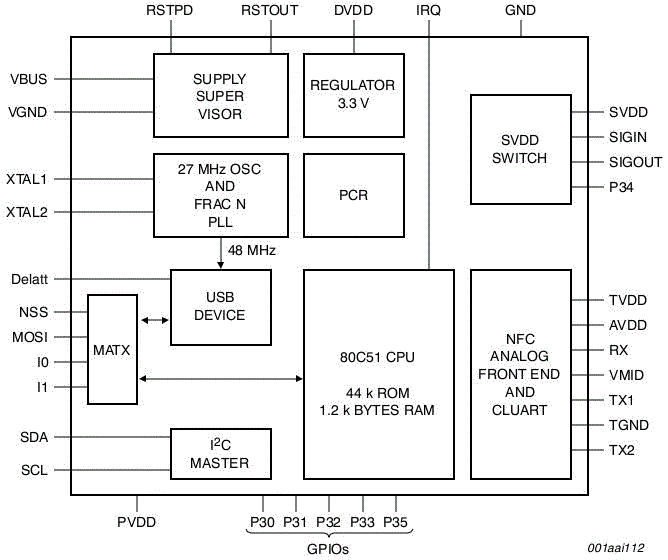

框图

PN533 Block diagram

PN533 Block diagram
获取框图PDF

特征

  • 集成45056字节ROM和1224字节RAM的80C51微控制器内核
  • 包括恩智浦的知识产权 许可权 (ISO/IEC 14443A执行要求)
  • 快速且高性价比的NFC设计启动
  • 高度集成的解调器和解码器
  • 缓冲输出驱动器能以最少的外部元件实现天线连接
  • 集成式RF电平检测器
  • 集成式数据模式检测器
  • 支持ISO/IEC 14443A/MIFARE
  • 支持ISO/IEC 14443B (仅读/写模式)
  • 在读写模式下，与ISO/IEC 14443A/MIFARE®、ISO/IEC 14443B或FeliCa卡进行通信的典型工作距离长达50 mm，具体取决于天线尺寸和调谐
  • 在NFCIP-1模式下，典型工作距离长达50 mm，具体取决于天线尺寸、调谐和电源
  • 在仿真模式下，ISO/IEC 14443A/MIFARE或FeliCa卡的典型工作距离约为100 mm，具体取决于天线尺寸、调谐和外部场强
  • 支持读写模式下的MIFARE 1 KB或MIFARE 4 KB仿真加密，且在212 kb/s和424 kb/s下MIFARE具有更高的通信传输速度
  • 支持非接触式通信，符合212 kb/s和424 kb/s下的FeliCa协议
  • 用于高达424 kb/s NFCIP-1的集成式RF接口
  • 使用外部模拟元件能以高于424 kb/s的速度在RF接口上通信
  • 支持主机接口
    • USB 2.0全速接口
    • 高速UART
  • 受限型I²C主机接口，可控制外部I²C EEPROM
  • 专用主机中断
  • 低功耗模式
    • 硬关断模式
    • 软关断模式
  • 器件处于关断模式下，可从HSU接口自动唤醒
  • 可编程定时器
  • 27.12 MHz晶振
  • 片内PLL可内部生成96 MHz，用于USB接口
  • 电源模式
    • USB总线电源模式
    • 非USB总线电源模式下的电源工作范围为2.5 V至3.6 V
  • 用于外部安全配套芯片的电源开关
  • 用于外部器件控制的专用IO端口
  • 用于生产测试的集成式天线检测器
  • 用于连接外部加密IC的ECMA 373 NFC-WI接口

目标应用

  • 计算应用
  • 消费电子应用

更多
