PN7120：带集成固件和家用电器NCI接口的NFC控制器

PN7120
使用寿命终止
  • 建议不要在新设计中使用本页介绍的产品。

滚动图片以放大

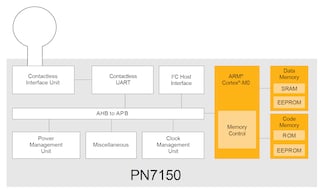

PN7120是即插即用的多合一NFC解决方案，可轻松整合到Linux和Android等任何操作系统环境，以降低物料清单(BOM)尺寸和成本。嵌入式Arm® Cortex®-M0微控制器内核加载了集成固件，简化了实施，因为所有NFC实时限制、协议和设备发现(轮询循环)都在内部进行处理。建议不要在新设计中使用该部件。对于新项目，我们建议使用PN7150。

产品详情

特征

完整的硬件和软件兼容性

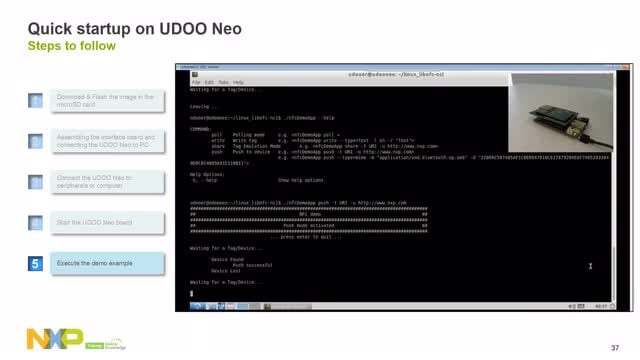

  • 支持Linux、Android、实时操作系统和NullOS

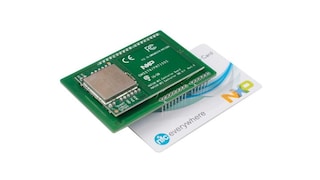

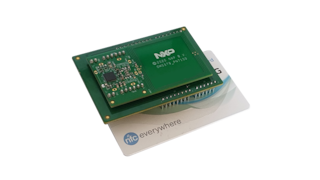

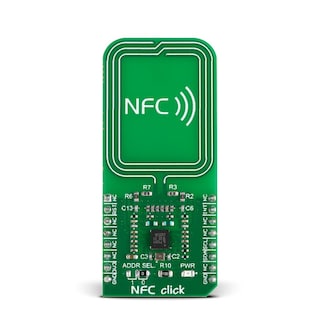

  • 连接Raspberry Pi、BeagleBone Black的接口，以及兼容Arduino® 接头的所有电路板

全部NFC工作模式

  • 读/写模式：ISO/IEC 14443 A&B速率高达848 kbit/s，FeliCa速率为212 & 424 kbit/s，MIFARE Classic(1K, 4K), NFC Forum 类型1、2、3、4、5标签，符合ISO/IEC 15693
  • 所有对等模式
  • 卡仿真模式(来自主机)：NFC Forum T4T (ISO/IEC 14443 A&B)速率为106 kbit/s，NFC Forum T3T (FeliCa, 仅PN7150)

灵活的主机接口

  • 电源电压：1.8至3.3 V
  • I²C接口：3.4 Mbit/s
  • 符合NCI 1.0的协议
  • 改进同步的IRQ信号

完整的低功耗NFC控制

  • 射频驱动程序：3.0至4.75 V，最大电流为180mA (PN7150)；2.7至3.3 V，最大电流为180mA (PN7120)
  • 根据设备要求v1.3实施
  • 低功耗的完全可配置的轮询循环
  • 负载调制方案：有源(PN7150)，无源(PN7120)

标准封装

  • HVQFN40 (PN7150)

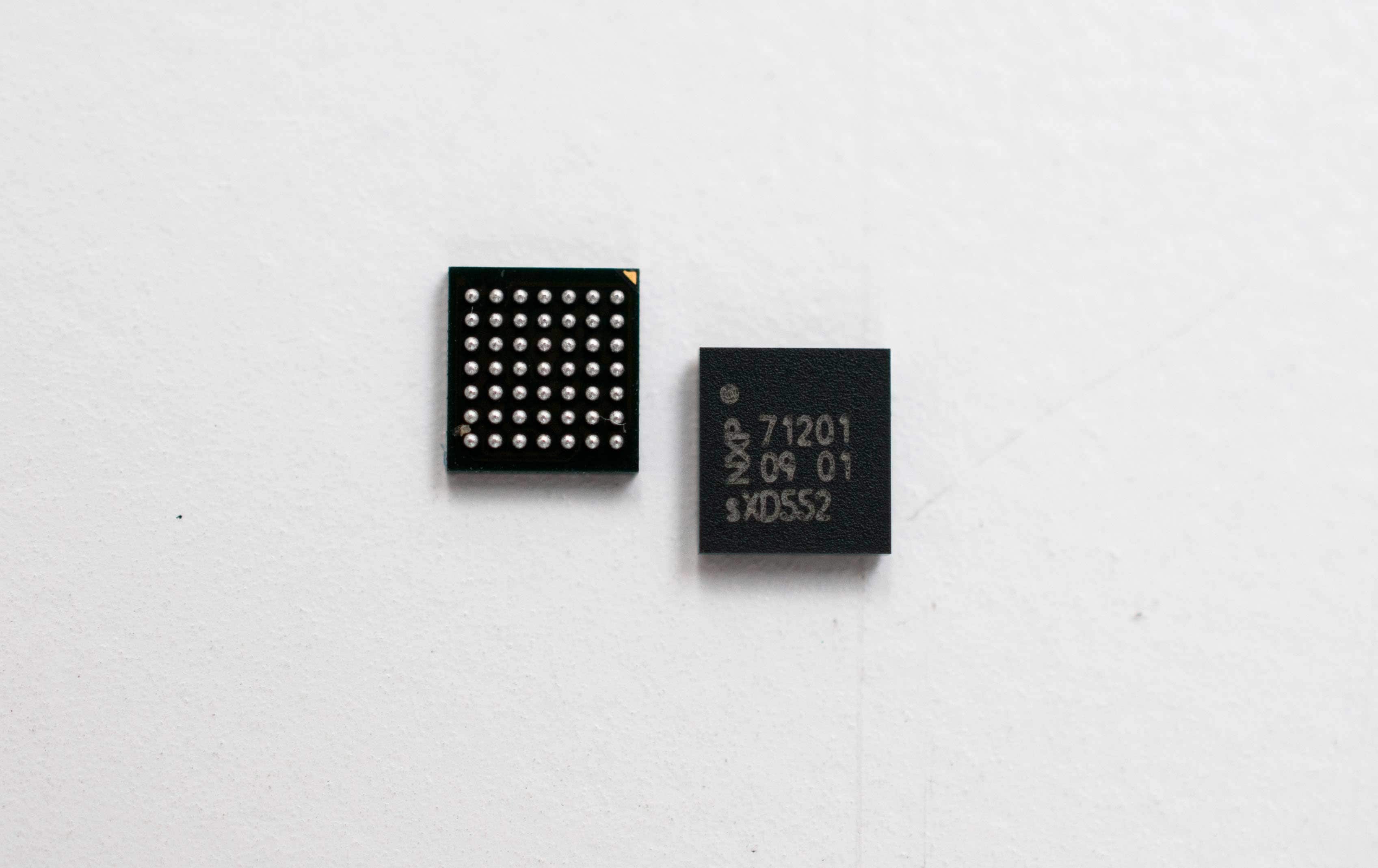

  • VFBGA49 (PN7120)

主要优势

  • NFC可无缝整合到任何应用，尤其是带操作系统的应用
  • 即插即用NFC操作，提供许多平台，包括大部分LPC、QorIQ®、Kinetis和i.MX电路板
  • 所有典型的NFC用例，包括配对、个性化、扩展的用户界面、维修等
  • 快速部署先进的、完全互操作的NFC功能，降低总成本
