高性能NFC控制器，内置了用于智能设备的固件

PN7150
不推荐用于新设计
  • 建议不要在新设计中使用本页介绍的产品。

滚动图片以放大

请查看标签和读卡器设备的全新线上NFC天线工具。

恩智浦PN7150 NFC解决方案适用于快速设计，完全符合NFC Forum标准，包括Linux®和Android™驱动程序并支持NCI 1.0主机通信。支持的最新Android版本为Android 11。对于更高的Android版本，请使用PN7160。

PN7150既是PN7120的高性能版本，也是即插即用的NFC解决方案，可轻松整合到任何操作系统环境，以降低物料清单（BOM）的大小和成本。PN71xx控制器非常适合网关等家庭自动化应用，并与NFC互联标签无缝运行。

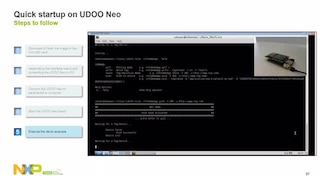

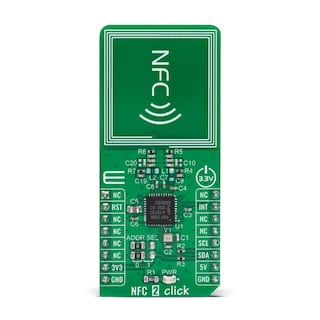

这些NFC控制器支持Raspberry Pi®和BeagleBone® Black等主流平台，以及具有Arduino®可堆叠接头的任何板，包括Kinetis®、LPCXpresso和i.MX板。

PN7150B0HN通过产品长期供货计划来支持您当前、未来及长远的发展。产品长期供货计划保障嵌入式设计的稳定供货。

了解详情

产品详情

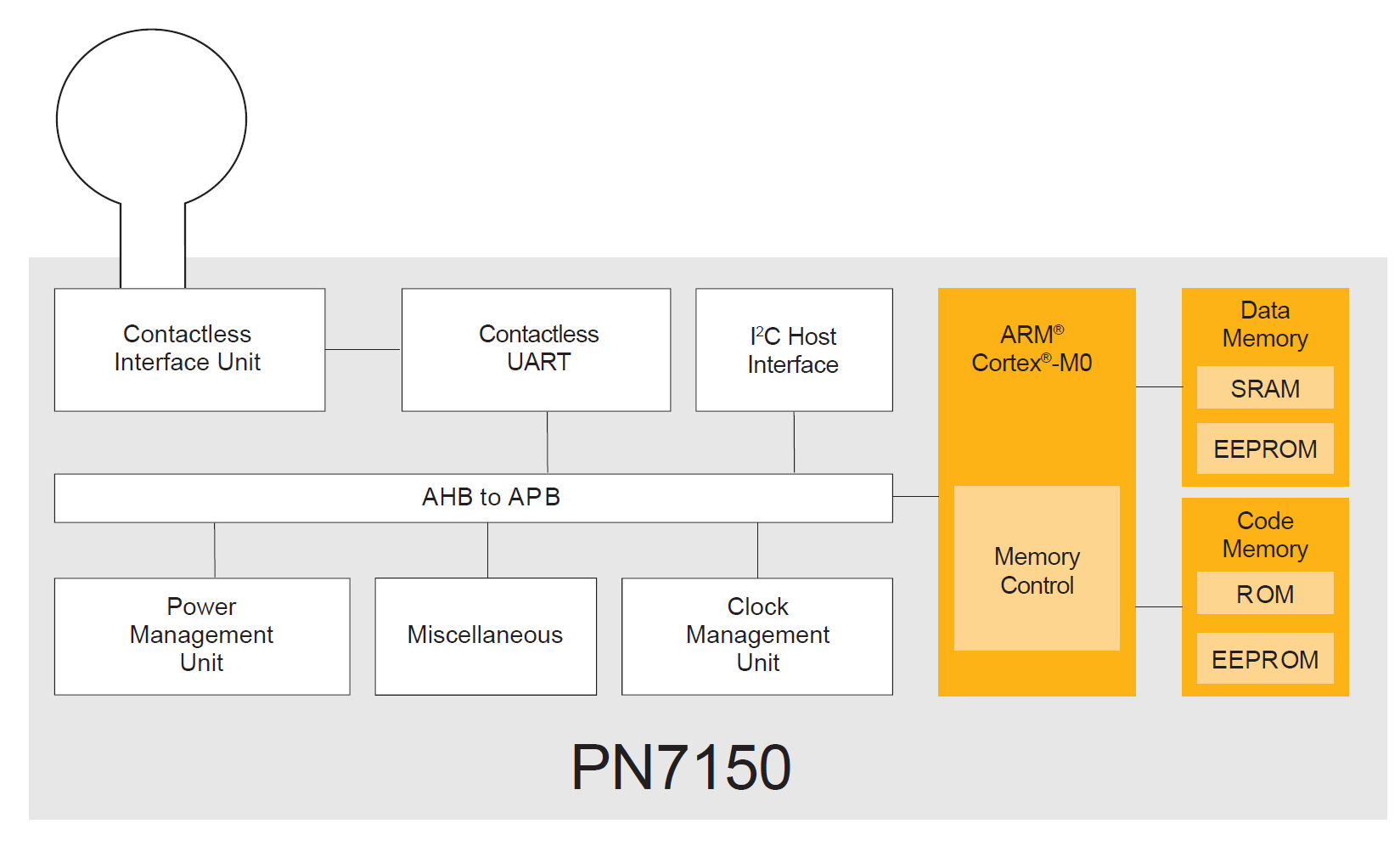

框图

高性能NFC控制器，支持所有符合NFC Forum的模式，带集成固件和NCI接口

High performance NFC controller, supporting all NFC Forum modes, with integrated firmware and NCI interface
获取框图PDF

特性

完整的硬件和软件兼容性

  • 支持Linux、Android、实时操作系统和NullOS
  • 连接Raspberry Pi、BeagleBone Black的接口，以及兼容Arduino®接头的所有板

全部NFC工作模式

  • 读/写模式：ISO/IEC 14443 A&B速率高达848kbit/s，FeliCa速率为212 & 424kbit/s，MIFARE Classic（1K, 4K）, NFC Forum类型1、2、3、4、5标签，符合ISO/IEC 15693
  • 所有对等模式
  • 卡仿真模式（来自主机）：NFC Forum T4T（ISO/IEC 14443 A&B）速率为106kbit/s，NFC Forum T3T（FeliCa，仅PN7150）

灵活的主机接口

  • 电源电压：1.8至3.3V
  • I²C接口：3.4Mbit/s
  • 符合NCI 1.0的协议
  • 改进同步的IRQ信号

完整的高能效NFC控制

  • 射频驱动程序：3.0至4.75V，最大电流为180mA（PN7150）；2.7至3.3V，最大电流为180mA（PN7120）
  • 根据设备要求v1.3实施
  • 低功耗模式的轮询循环完全可配置
  • 负载调制方案：有源（PN7150），无源（PN7120）

标准封装

  • HVQFN40 (PN7150）
  • VFBGA49（PN7120）

主要优势

  • NFC可无缝整合到任何应用，尤其是带操作系统的应用
  • 即插即用NFC操作，提供许多平台，包括大部分LPC、QorIQ®、Kinetis和i.MX板
  • 所有典型的NFC用例，包括配对、个性化、扩展的用户界面、维护等
  • 快速部署先进的、完全互操作的NFC功能，降低总成本

购买/参数

1 结果

不包含 1 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

Application Segment

Read distance [TYP] (mm)

特点

Contactless Identification Standard

Host Interface

Host interface protocol

输入电压[最小到最大]（V）

RF driver supply voltage [min-max] (V)

RF driver current [max](mA)

Max output power (W)

Ambient Operating Temperature (Min to Max) (℃)

Package Dimensions (LxWxZ (mm))

封装类型

封装端接数

PN7150B0HN
数据手册

建议不要在新设计中使用该软件

Broadband Modem and Residential Gateway, Communication Infrastructure, Fitness, Healthcare, Industrial, Major Home Appliances, Mobile, Open and Closed Loop Payments, Printer, Smart City, Smart Home, Tablet, WearableAudio and video conference phone, e-board, gaming, mobile computer

160

NFC reader/writer, P2P, card emulation

ISO 15693, ISO/IEC 14443 Type B, ISO/IEC 18092, ISO/IEC14443 Type A

I2C

NCI

1.65 to 3.6

2.7 - 4.75

180

0.85

-30 to 85

6 x 6 x 0.85

HVQFN40

40
