带以太网、USB和加密功能的ColdFire V3微处理器

MCF537X
不推荐用于新设计

滚动图片以放大

MCF537x系列微处理器是一个单芯片解决方案，满足工业控制系统对灵活通信不断增长的需求。MCF537x系列器件获得了恩智浦和领先的第三方开发商提供的广泛的硬件和软件开发工具支持。

产品详情

框图

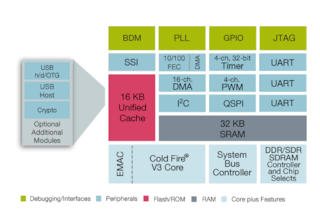

ColdFire MCF537X Microprocessor Block Diagram

ColdFire MCF537X Microprocessor Block Diagram
获取框图PDF

特征

  • 在240 MHz的频率时，ColdFire® V3内核的性能可达211 (Dhrystone 2.1) MIPS
  • 增强型乘法累加器(MAC)模块和硬件除法器
  • 16 KB I/D缓存
  • 32 KB SRAM
  • 集成外设
    • USB2.0全速主设备控制器
    • USB 2.0全速OTG控制器
    • 10/100快速以太网控制器(FEC)
    • 3个通用异步接收器/发送器(UART)
    • 队列串行外设接口(QSPI)
    • 同步串行接口(SSI)
    • I²C总线接口
    • 16通道DMA控制器
    • 16位DDR/32位SDR SDRAM控制器
  • 安全性
    • 硬件加速加密(仅MCF5373L和MCF5373)
  • 本产品包含在恩智浦产品长期供货计划中，自推出后至少保证15年供货

购买/参数

3 结果

不包含 3 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装类型

封装端接数

预算报价（不含税）

MCF53721CVM240
数据手册

建议不要在新设计中使用该软件

LBGA196

196

10K @ CNY120.19
MCF5372LCVM240
数据手册

建议不要在新设计中使用该软件

LBGA196

196

10K @ CNY90.11 - 10K @ CNY103.46
MCF5373LCVM240
数据手册

建议不要在新设计中使用该软件

LBGA196

196

10K @ CNY105.19
