无线MCU，带内置3频：1x1 Wi-Fi®6+ Bluetooth® Low Energy 5.4/802.15.4

RW612
正常供应
RW612 3频器件适用于智能家居和工业应用

点击播放视频

RW612是一款高度集成的低功耗三频无线MCU，它集成了MCU和Wi-Fi®6+Bluetooth® Low Energy (LE) 5.4/802.15.4射频单元，适用于多种应用，包括互联智能家居设备、企业和工业自动化、智能配件和智能能源。

RW612 MCU子系统搭载了260MHz Arm®Cortex®-M33内核，带有Trustzone™-M、1.2MB片上SRAM和高带宽4通道SPI接口，该接口具有即时解密引擎，支持安全地访问片外XIP闪存。

RW612包括全功能1x1双频（2.4 GHz/5 GHz）20MHz Wi-Fi 6（802.11ax）子系统，与上一代Wi-Fi标准相比，其吞吐量更高、网络效率更高、延迟更低、覆盖范围更广。低功耗蓝牙射频单元支持2Mbit/s的高速数据速率、长距离和扩展广播。片上802.15.4射频单元支持最新的Thread网状网络协议。此外，RW612可支持Matter over Wi-Fi或Matter over Thread，提供了适用于多种生态合作体系和各种产品的通用互操作应用层。

它还整合了EdgeLock®安全技术，具有安全启动、安全调试、安全固件更新和安全生命周期管理，以及硬件加密和物理不可克隆函数(PUF)，可提供安全的密钥管理。

RW612采用先进的设计，在仅需一个3.3V电源的无线MCU中进行紧密集成、低功耗和高度安全的操作，空间利用率和性价比较高。

领先的模块制造商提供基于恩智浦RW612的无线模块。

框图

选择框图:

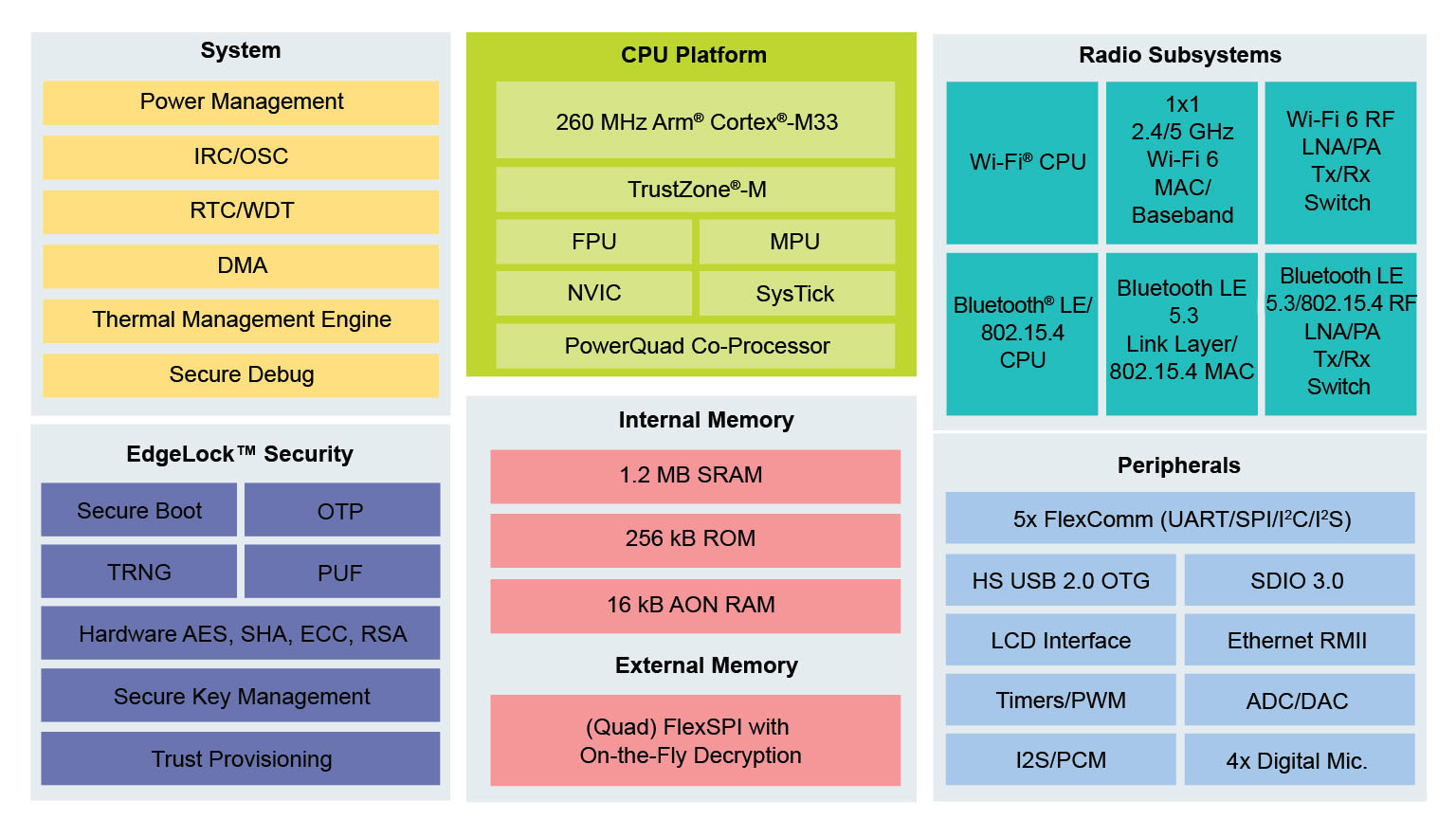

RW612主要子系统

RW612 Main Subsystems

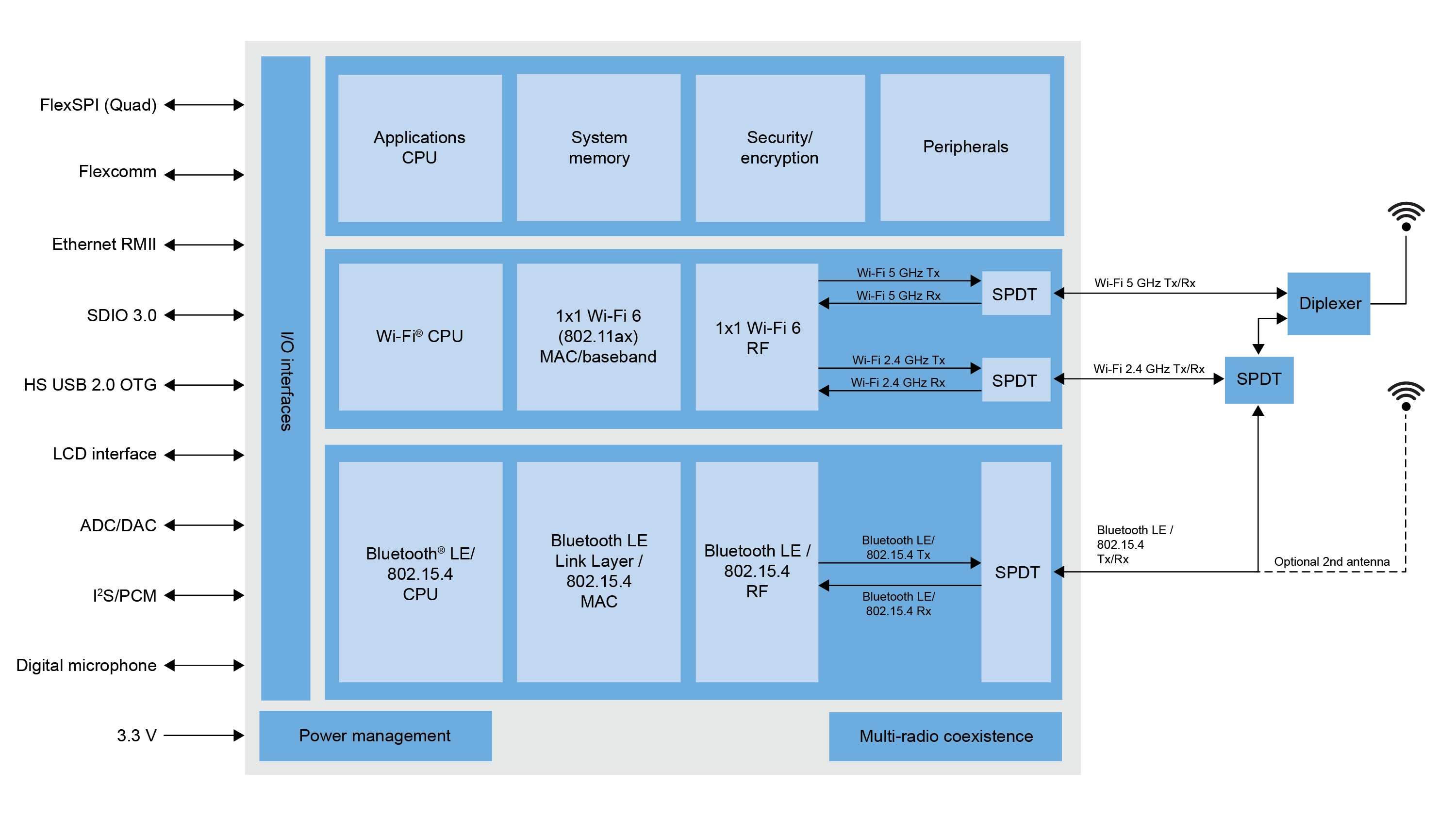

RW612框图

RW612 Block Diagram

特性

Wi-Fi 6射频单元

  • 1x1，20MHz，IEEE 802.11ax，2.4 GHz/5 GHz
  • 目标唤醒时间, 双载波调制, 扩展范围
  • 内置Wi-Fi PA、LNA和T/R交换机，发射功率高达+21dBm
  • WPA 3安全
  • Matter over Wi-Fi

Bluetooth Low Energy/802.15.4射频单元

  • 支持Bluetooth 5.2特性
  • 经过了蓝牙5.4认证
  • 低功耗蓝牙2Mbps高速模式，长距离，广播扩展
  • I²S和PCM音频接口
  • 支持Thread的802.15.4
  • Matter over Thread
  • 内置PA/LNA，发射输出高达+15dBm

MCU

  • 260MHz Arm Cortex-M33，带有TrustZone-M
  • 片上1.2MB PSRAM
  • 4线FlexSPI Flash XIP，具有即时解密功能
  • PSRAM接口，用于内存扩展
  • 多达5个Flexcomm（可配置为SPI/I²C/I²S/UART）
  • IEEE1588 RMII/快速以太网接口
  • LCD接口

安全

  • 恩智浦EdgeLock™Assurance保障计划
  • 硬件信任根
  • 基于Arm TrustZone-M的可信执行环境
  • 恩智浦EdgeLock 2GO可信配置
  • 安全启动、调试和软件更新
  • 硬件加密
  • 物理不可克隆函数(PUF)安全密钥管理
  • SESIP Assurance 3级(SESIP3)
  • PSA 3级认证

SDK、工具包和中间件

  • MCUXpresso SDK
  • FreeRTOS开源内核和库
  • lwIP和mbedTLS安全中间件
  • 集成IAR
  • 支持TF-M固件

电源管理

  • 可使用一个3.3V外部电源为整个RW612供电
  • 内置降压稳压器和LDO提供内部电源域
  • 独立供电模式，适用于多种应用和无线子系统
  • 通过专用GPIO、IRQ和RTC唤醒各个子系统
  • 低功耗永通电源域支持快速唤醒

更多

购买/参数

3 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

预算报价（不含税）

封装类型

RW612ET
数据手册

正常供应

1K @ CNY49.47

TFBGA145

RW612HN
数据手册

正常供应

1K @ CNY47.53

HVQFN116

RW612UK
数据手册

正常供应

1K @ CNY46.81

—
