88W8987 (汽车)：2.4/5 GHz双频1x1 Wi-Fi® 5 (802.11ac) + 蓝牙® 5.1解决方案

88W8987A
正常供应

88W8987汽车无线SoC是高度集成的IEEE 802.11ac（wave2）收发器和与Bluetooth 5.1单芯片封装兼容的组合解决方案，专门设计用于支持汽车应用的速度、可靠性和质量要求。此外，该设备通过AEC-Q100 3级(-40℃至85℃)认证，可以应对高温环境的挑战。该设备包括集成前端，从而降低外部组件成本。

框图

选择框图:

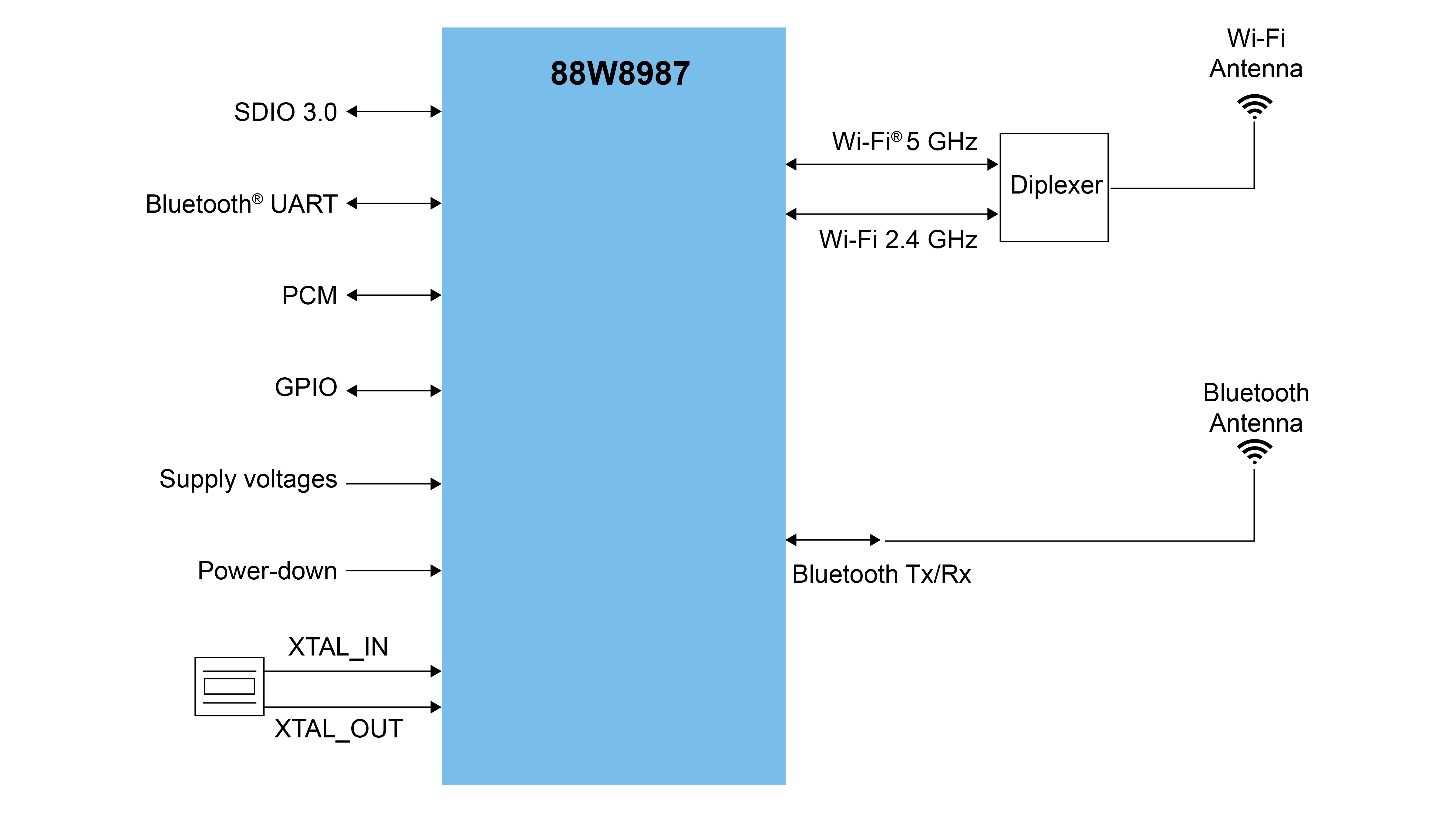

88W8987 (automotive) application diagram

88W8987 (automotive) application diagram

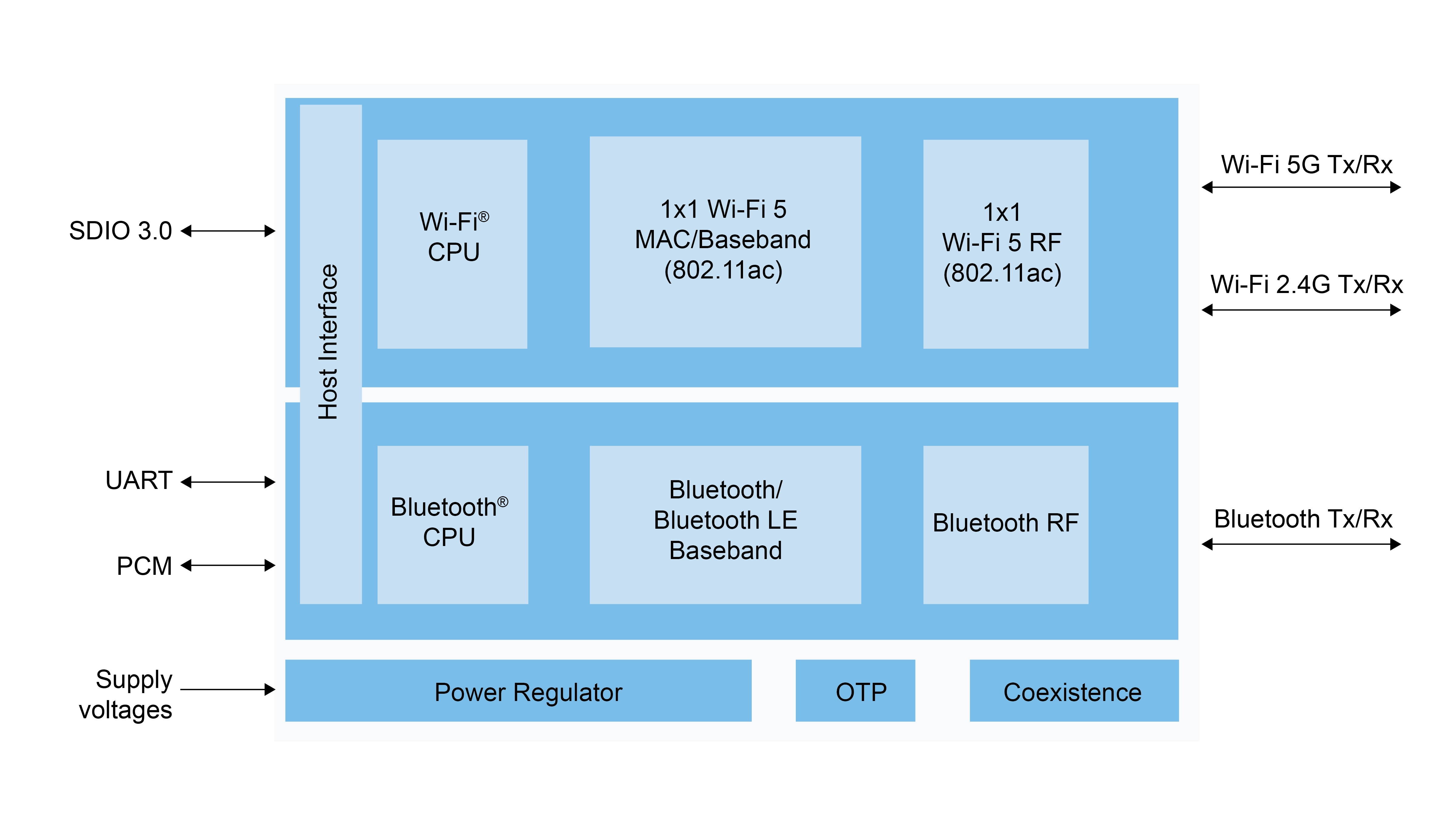

88W8987 (automotive) internal diagram

88W8987 (automotive) internal diagram
获取框图PDF

特征

  • IEEE 802.11ac (wave2)
  • MU-MIMO接收
  • 虚拟双MAC (通过优化的DRCS)
  • Wi-Fi站点(STA), 接入点 (AP), Wi-Fi Direct (P2P)
  • WPA3加密
  • Bluetooth 5.1，包括低功耗蓝牙5.1，支持2Mbps
  • 2天线配置，可实现Wi-Fi/Bluetooth共存
  • 符合AEC-Q100 3级认证(-40°C至+85°C)
  • 68引脚8 x 8毫米QFN，带有可润湿侧面
N true 0 PSP88W8987Azh 2 应用笔记 Application Note t789 2 zh zh zh 应用笔记 Application Note 2 1 1.0 English Describes how to enable and use RF test mode on Android OS. 1734546916354715332964 PSP 876.5 KB None None documents None 1734546916354715332964 /docs/en/application-note/AN14365.pdf 876532 /docs/en/application-note/AN14365.pdf AN14365 documents N N 2024-12-18 AN14365: RF Test Mode on Android OS - Application Note /docs/en/application-note/AN14365.pdf /docs/en/application-note/AN14365.pdf Application Note N 645036621402383989 2024-12-19 pdf N en Dec 16, 2024 645036621402383989 Application Note Y N AN14365: RF Test Mode on Android OS - Application Note 2 3 English Provides general guidance and tips on how to test products based on NXP Wi-Fi devices for regulatory compliance (FCC, ETSI, etc.). 1604424623457710768142 PSP 260.6 KB None None documents None 1604424623457710768142 /docs/en/application-note/AN13006.pdf 260633 /docs/en/application-note/AN13006.pdf AN13006 documents N N 2020-11-03 Compliance and Certification Considerations - Application note (public) /docs/en/application-note/AN13006.pdf /docs/en/application-note/AN13006.pdf Application Note N 645036621402383989 2024-03-04 pdf N en Feb 20, 2024 645036621402383989 Application Note Y N Compliance and Certification Considerations - Application note (public) false 0 88W8987A downloads zh-Hans true 1 Y PSP Y Y 应用笔记 2 /docs/en/application-note/AN14365.pdf 2024-12-18 1734546916354715332964 PSP 1 Dec 16, 2024 Application Note Describes how to enable and use RF test mode on Android OS. None /docs/en/application-note/AN14365.pdf English documents 876532 None 645036621402383989 2024-12-19 N /docs/en/application-note/AN14365.pdf AN14365: RF Test Mode on Android OS - Application Note /docs/en/application-note/AN14365.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N AN14365: RF Test Mode on Android OS - Application Note 876.5 KB AN14365 N 1734546916354715332964 /docs/en/application-note/AN13006.pdf 2020-11-03 1604424623457710768142 PSP 2 Feb 20, 2024 Application Note Provides general guidance and tips on how to test products based on NXP Wi-Fi devices for regulatory compliance (FCC, ETSI, etc.). None /docs/en/application-note/AN13006.pdf English documents 260633 None 645036621402383989 2024-03-04 N /docs/en/application-note/AN13006.pdf Compliance and Certification Considerations - Application note (public) /docs/en/application-note/AN13006.pdf documents 645036621402383989 Application Note N en None Y pdf 3 N N Compliance and Certification Considerations - Application note (public) 260.6 KB AN13006 N 1604424623457710768142 true Y Products

文档

快速参考恩智浦 文档类别.

筛选条件

2 文件

紧凑列表

设计文件

快速参考恩智浦 设计文件类型.
筛选条件

硬件

快速参考恩智浦 板类型.
筛选条件

3 硬件

  • JODY-W2 EVK
    评估板和开发板

    JODY-W2 EVK

    Evaluation Kit for JODY-W263
    JODY-W2 EVK By u-blox AG Gold 合作伙伴
  • JODY-W2
    模块

    JODY-W2

    Wi-Fi/BT/BLE module based on NXP chip (silicon) 88W8987
    JODY-W2 By u-blox AG Gold 合作伙伴
  • JODY-W2 M.2 card
    模块

    JODY-W2 M.2 card

    M.2 card featuring JODY-W5 with Wi-Fi 5 and Bluetooth / Low Energy 5.2 2230 Key E form factor, compatible with NXP i.MX evaluation and development boards
    JODY-W2 M.2 card By u-blox AG Gold 合作伙伴

要查找支持该产品的其他合作伙伴产品，请访问我们的 合作伙伴市场.
