2.4/5 GHz双频1x1 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.4汽车解决方案

AW611
正常供应

AW611是一款高度集成的2.4/5GHz双频1x1 Wi-Fi®6（802.11ax）和Bluetooth®/BLE 5.4单芯片解决方案，为汽车市场而打造，具有AEC-Q100 3级资质。这种高度集成有助于产生极低的系统成本和较小的外部BOM，同时实现所有内部射频以及LTE等外部射频之间的有效共存。

AW611包含搭载恩智浦802.11ax（Wi-Fi 6）技术的全功能Wi-Fi子系统，与上一代Wi-Fi标准相比，其吞吐量更高、网络效率更高、延迟更低、范围更广。Wi-Fi子系统将Wi-Fi MAC、基带和直接转换射频与集成的功率放大器、低噪声放大器和发射/接收交换机集成在一起，无需射频前端模块(FEMS)，从而节省了成本并降低了系统复杂性。

除了Wi-Fi 6单元外，AW611还集成了一个独立的Bluetooth 5.2子系统，支持蓝牙和BLE。该器件支持蓝牙配置文件，如免提功能(HFP)、音频流的高级音频分发配置文件（A2DP）以及双宽带语音（WBS）等附加配置文件。对于低功耗蓝牙，AW611支持2Mbit/s的高速数据传输速率、远距离和扩展传播。此外，使用等时通道支持LE Audio，可获得更佳的整体音频体验。

AW611为Wi-Fi和蓝牙子系统集成了专用CPU和内存，实现了实时、独立的协议处理。支持SDIO和UART接口，用于连接外部主处理器。

框图

选择框图:

AW611内部框图

AW611 internal block diagram

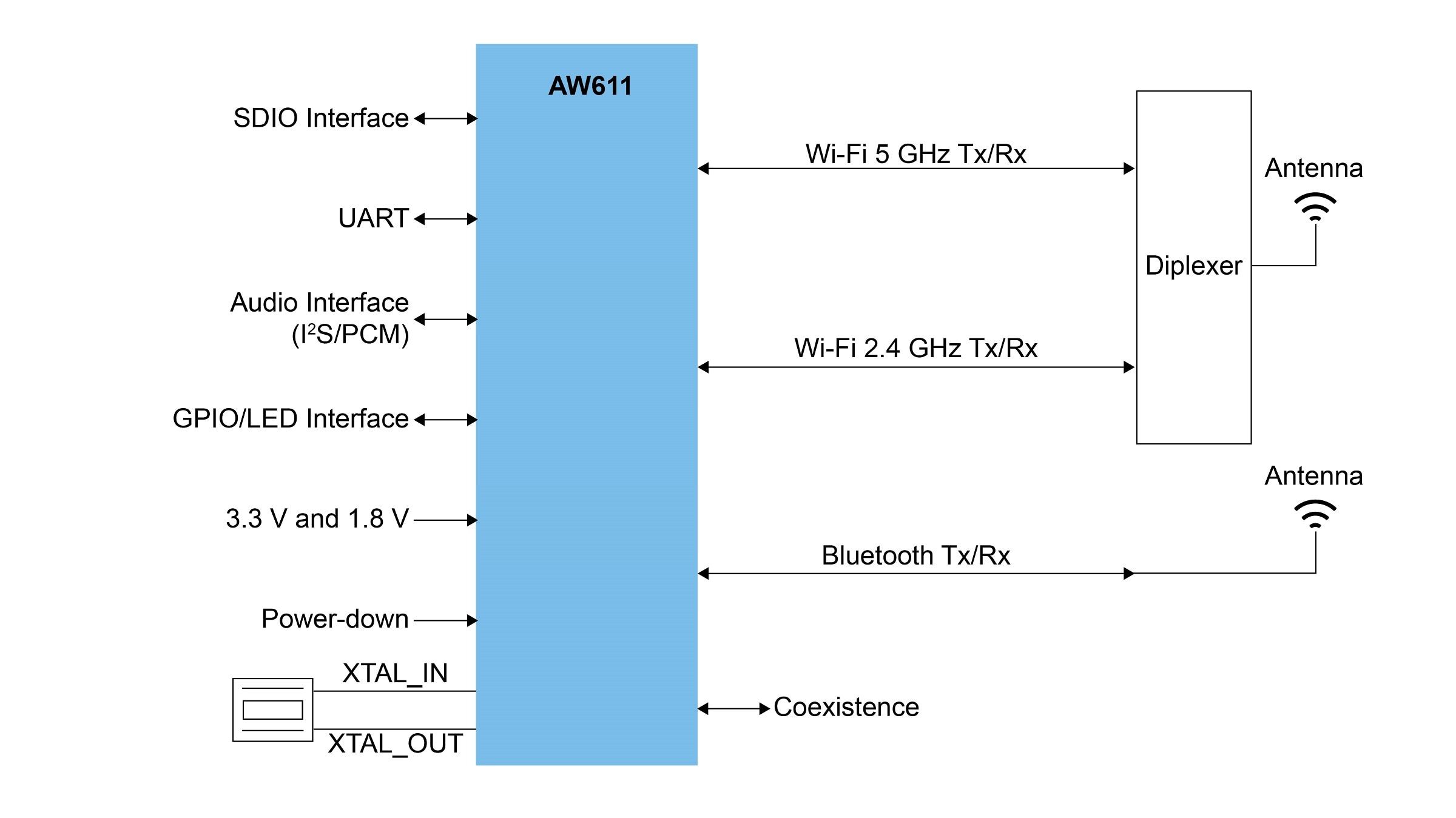

AW611应用图——双天线

AW611 application diagram - Dual antenna
获取框图PDF

特性

Wi-Fi 6（802.11ax）的主要特性

  • 1x1 2.4/5GHz，通道频率高达80MHz
  • 下行MU-MIMO和OFDMA
  • 上行MU-MIMO和OFDMA
  • 目标唤醒时间, 双载波调制, 扩展范围
  • WPA3安全性
  • 支持SDIO 3.0主接口

蓝牙主要特性

  • 支持Bluetooth 5.2特性
  • 经过了Bluetooth 5.4认证
  • 全功能蓝牙基带
  • SCO/eSCO链路，可处理硬件加速音频信号
  • BLE 2Mbit/s，长距离，广播扩展
  • AoA/AoD测向
  • 具有等时通道的LE Audio
  • AES硬件加密
  • 支持UART主接口

一般特性

  • Wi-Fi和蓝牙的专用、独立CPU和内存
  • 支持低功耗模式的高效电源管理系统
  • 单天线和双天线配置
  • AEC-Q100 3级认证（-40°C至+85°C）
  • AEC-Q100 2级认证（-40°C至+105°C）
