2.4/5GHz双频2x2 Wi-Fi® 6 (802.11ax) + 蓝牙 5.3汽车解决方案

88Q9098

滚动图片以放大

88Q9098汽车无线SoC系列是业界首个基于最新IEEE 802.11ax标准的Wi-Fi 6解决方案，支持2x2+2x2并发双Wi-Fi和双模蓝牙 5.3。在日益拥挤的汽车环境中，提供可靠的高性能无线连接变得越来越困难。全新的88Q9098组合解决方案可为汽车提供千兆级性能、卓越的可靠性和增强的安全性，并在提供全面的Wi-Fi 6解决方案方面提升了领导地位。我们创新的并发双Wi-Fi架构开创了新技术先例，将两个完整的Wi-Fi子系统集成到单个SoC中，并使两个独立的2x2数据流可以并行或以全吞吐量来运行。

88Q9098系列规格兼容的无线解决方案包括：

  • 88Q9098 - 带有蓝牙5的2x2 + 2x2并发双Wi-Fi（AEC-Q100三级）
  • 88Q9098S - 带有蓝牙5的2x2 + 2x2并发双Wi-Fi（AEC-Q100二级）

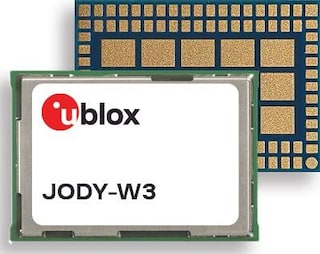

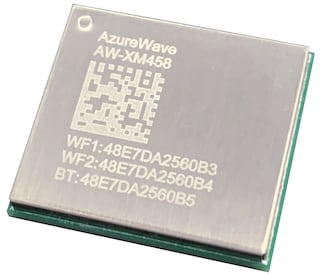

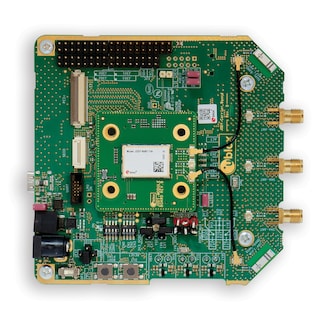

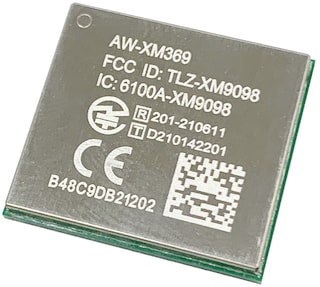

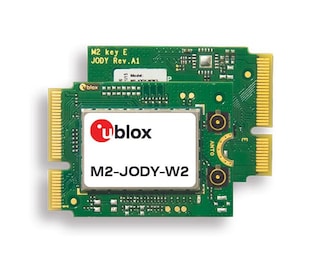

领先的模块制造商提供提供基于恩智浦88Q9098的无线模块。

框图

选择框图:

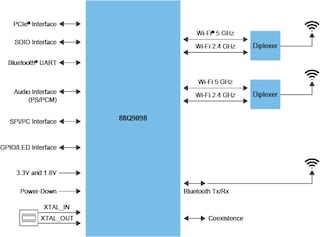

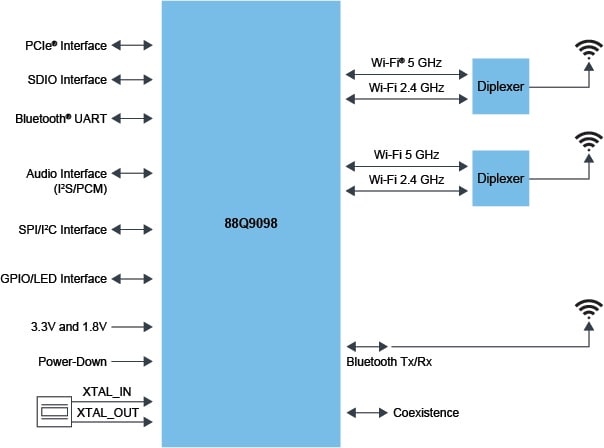

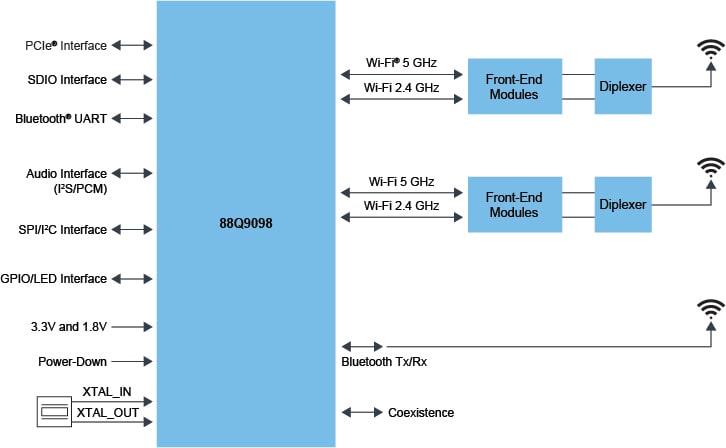

88Q9098 SoC应用框图（内部PA/LNA/SW）

88Q9098 Block Diagram Interior App

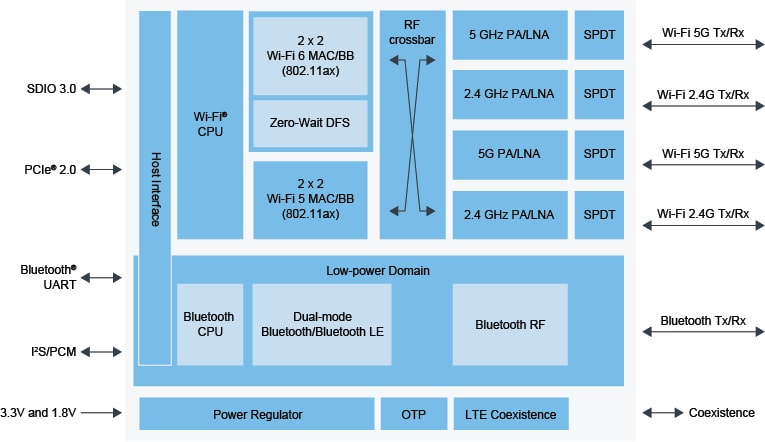

88Q9098 SoC内部框图

88Q9098 SoC Internal Block Diagram
获取框图PDF

特性

并发双2x2 Wi-Fi操作

  • IEEE 802.11ax / IEEE 802.11ac
  • 20/40/80MHz通道带宽
  • 零等待DFS
  • 隐式和显式波束赋形技术

Wi-Fi 6

  • 下行OFDMA和MU-MIMO
  • 上行OFDMA和MU-MIMO
  • 1024 QAM
  • 目标唤醒时间

蓝牙

  • 蓝牙Class 1.5和Class 2
  • 1 Mbit/s 和 2 Mbit/s 低功耗蓝牙(LE)
  • 远程低功耗蓝牙

支持AEC-Q100

  • 二级（-40C至 +105C）
  • 三级（-40C至+85C）

主接口（Wi-Fi + 蓝牙）

  • PCIe 2.0 + UART
  • SDIO 3.0 + SDIO 3.0
  • SDIO 3.0 + UART
