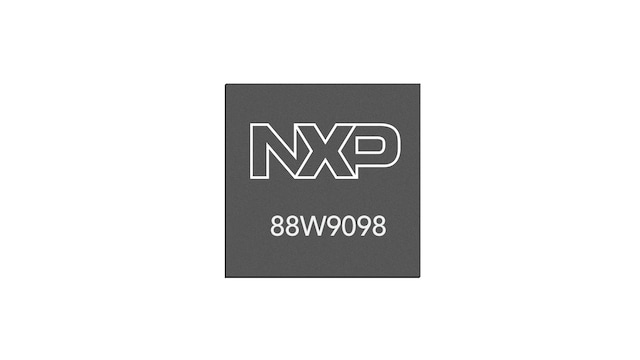

88W9098无线SoC是业界首个基于最新IEEE 802.11ax标准的Wi-Fi 6解决方案，具有创新的并行双Wi-Fi和双模Bluetooth 5.3架构。88W9098组合解决方案实现千兆级性能、卓越的可靠性和增强的安全性，为物联网、接入和工业市场提供高性能、灵活的解决方案。

领先的模块制造商提供基于恩智浦88W9098的无线模块。

应用笔记

产品详情

框图

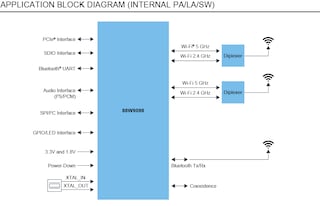

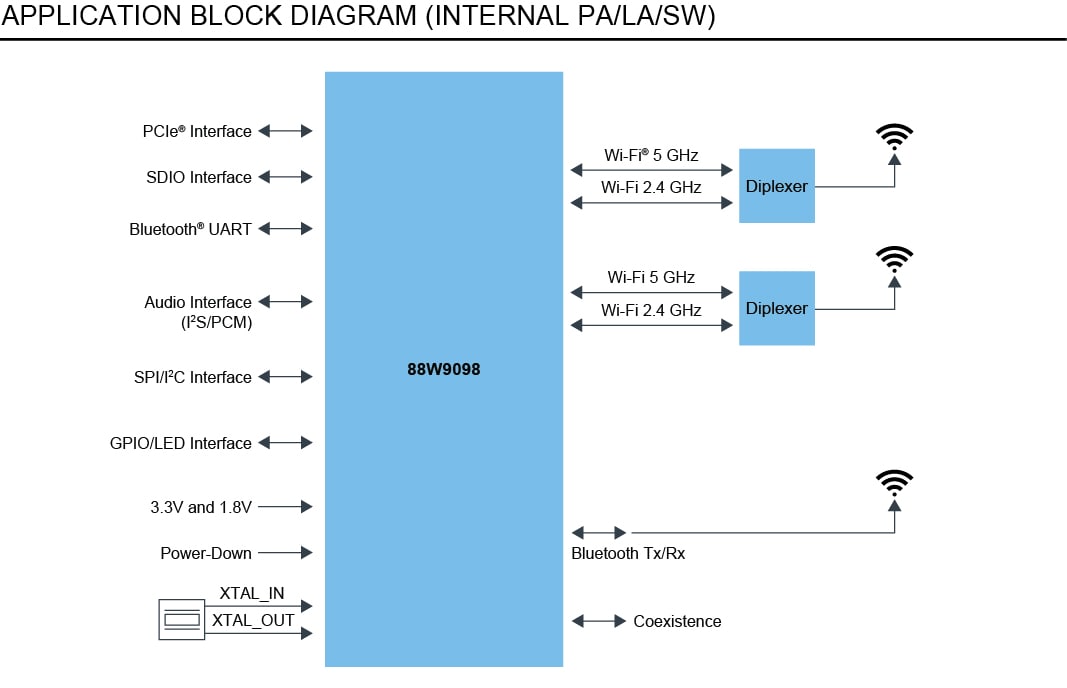

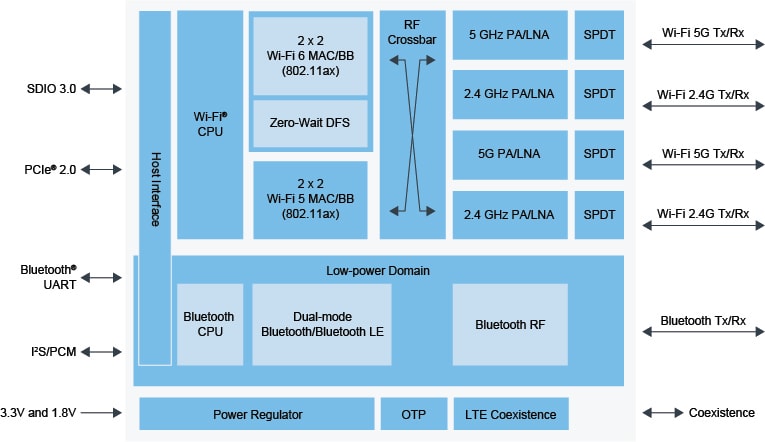

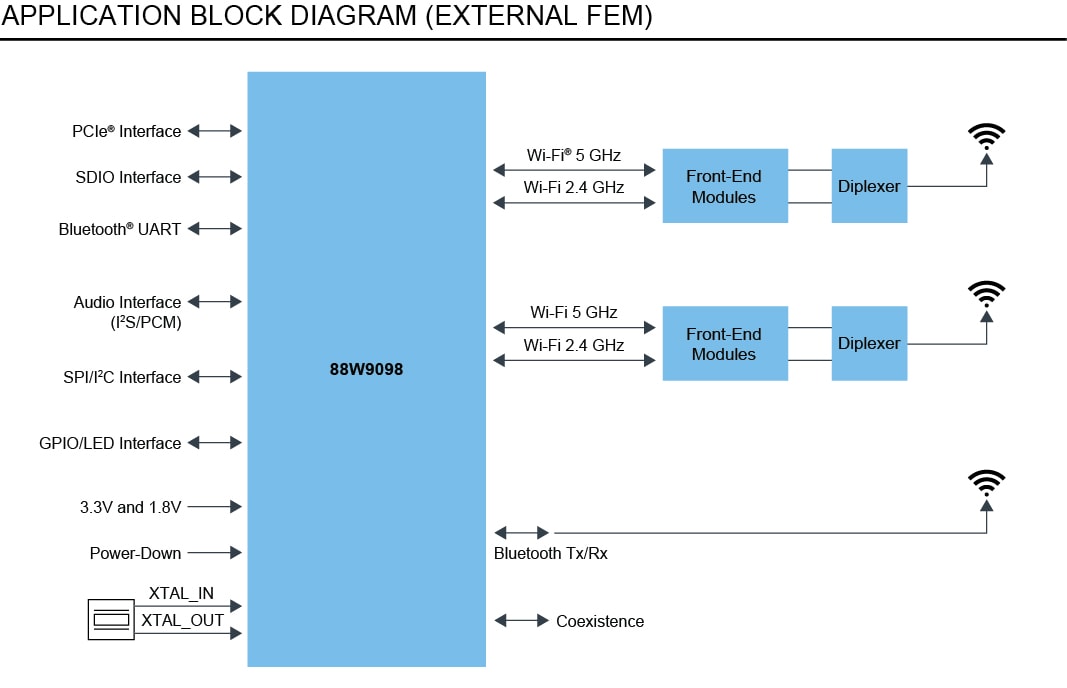

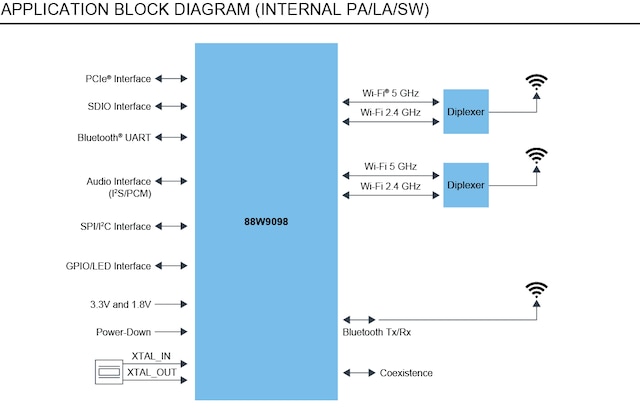

88W9098 SoC内部框图

获取框图PDF

特性

并发双2x2 Wi-Fi操作

IEEE 802.11ax/IEEE 802.11ac
20/40/80MHz通道带宽
零等待DFS
隐式和显式波束赋形技术

Wi-Fi 6

下行OFDMA和MU-MIMO
上行OFDMA和MU-MIMO
1024 QAM
目标唤醒时间

蓝牙

蓝牙Class 1.5和Class 2
1Mbit/s和2Mbit/s低功耗蓝牙(BLE)
远程低功耗蓝牙

工作温度

商用温度（0至70°C）
工业温度（-40°C至+85°C）

主接口（Wi-Fi+蓝牙）

PCIe 2.0 + UART
SDIO 3.0 + SDIO 3.0
SDIO 3.0 + UART
USB 3

合作伙伴模块

Wi-Fi 6 (802.11ax) 2.4/5GHz双频2x2 + Bluetooth^® 5.3

产品	Wi-Fi I/F	蓝牙I/F	工作温度	天线类型	天线编号	模块类型	模块大小	资格认证	推荐主机
AW-XM458 AzureWave	PCIe, SDIO	UART	-40至85	天线引脚数	3	SMD	20x18x2.8	CE, FCC, IC, 日本	i.MX

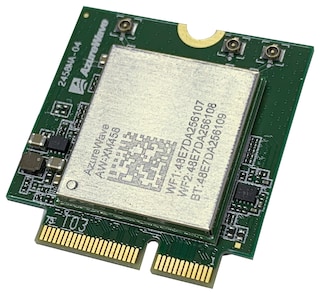

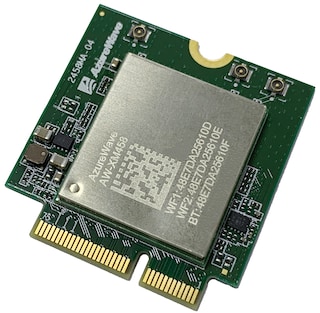

AW-XM458MA-PUR AzureWave	PCIe	UART	-40至85	U.FL接头	3	M.2 E-Key	28x30x3.65	CE, FCC, IC,日本	i.MX

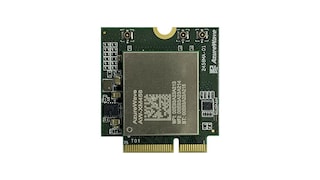

AW-XM458MA-SUR AzureWave	SDIO	UART	-40至85	U.FL接头	3	M.2 E-Key	28x30x3.65	CE, FCC, IC,日本	i.MX
CMP9620-1C-T CEL	PCIe	UART	-40至85	MHF 4接头	2	M.2 E-Key	28x30x3.65	FCC IC CE	i.MX/i.MX RT
CMP9620-2-R CEL	PCIe	UART	-40至85	天线引脚数	2	SMD	18x20x2.8	N/A	i.MX/i.MX RT
SPB437 H&D Wireless	PCIe，4位SDIO 3.0	UART	-40至85	MHF 4接头	3	M.2 E-Key	22x30x2.5	FCC, IC, CE	i.MX
SPB620 H&D Wireless	PCIe，4位SDIO 3.0	UART	-40至85	天线引脚数	3	SMD	16x20x2,5	FCC, IC, CE	i.MX
WYSBHVDXP KAGA FEI(TY)	PCIe, SDIO	UART	-30至85		3	SMD	17.0x19.0x2.2		i.MX

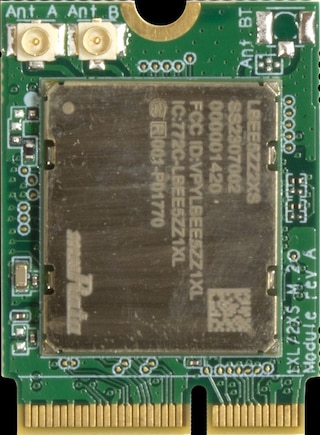

LBEE5ZZ1XL-774 Murata	PCIe, SDIO	UART	-40至85	天线引脚数	3	SMD	19.1x16.5x2.1	CE, FCC, IC, MIC (日本)	i.MX
LBEE5ZZ2XS-846 Murata	PCIe, SDIO	UART	-40至85	天线引脚数	2	SMD	19.1x16.5x2.1	CE, FCC, IC, MIC (日本)	i.MX
JODY-W374-00B u-blox	PCIe, SDIO	UART、PCM/I²S	-40至85	天线引脚数	2	SMD	13.8x19.8x2.5	ISO-16750	i.MX 6/7/8/9
JODY-W377-00B u-blox	PCIe, SDIO	UART、PCM/I²S	-40至85	天线引脚数	3	SMD	13.8x19.8x2.5	ISO-16750	i.MX 6/7/8/9

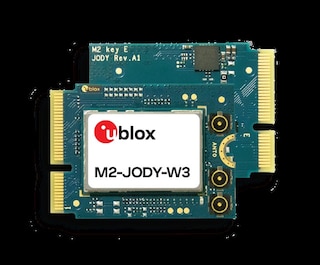

M2-JODY-W377-00C u-blox	SDIO	UART、PCM/I²S	-40至85	U.FL接头	3	M.2卡	22.0x30.0x4.2	ISO-16750	i.MX 6/7/8/9
M2-JODY-W377-01C u-blox	PCIe, SDIO	UART、PCM/I²S	-40至85	U.FL接头	3	M.2卡	22.0x30.0x4.2	ISO-16750	i.MX 6/7/8/9

文档

快速参考恩智浦文档类别.

1-5 / 13 文件

^应用笔记
RF Test Mode on Linux OS - Application note

PDF版本 4Sep 26, 2024920.0 KBAN14114English
^应用笔记
Wi-Fi Firmware Automatic Recovery for Linux OS - Application note

PDF版本 1Sep 12, 2024274.8 KBAN14213English
^应用笔记
802.11r Roaming with Fast Transition (FT) - Application note

PDF版本 2Jul 1, 2024686.1 KBAN13888English
^应用笔记
Compliance and Certification Considerations - Application note (public)

PDF版本 3Feb 20, 2024260.6 KBAN13006English
^应用笔记
Wi-Fi Alliance Derivative Certification Process - Application note (restricted)

PDF版本 6Dec 13, 2023905.2 KBAN12976English
请登录
^应用笔记
Host Wake-up over Bluetooth or Bluetooth Low Energy (LE) - Application note

PDF版本 1Aug 14, 2023222.5 KBAN13958English
^应用笔记
Wi-Fi/Bluetooth/802.15.4 M.2 Key E Pinout Definition

PDF版本 4May 30, 2023303.4 KBAN13049English
^用户手册
WFA Certification for NXP-based Wireless Modules on i.MX 8M Quad EVK Running Android 11 OS - User Manual (Restricted)

PDF版本 6.0Sep 26, 2024475.0 KBUM11563English
请登录
^用户手册
Getting Started with NXP-based Wireless Modules on i.MX 8M Quad EVK Running Linux OS - User manual

PDF版本 15Sep 25, 20245.2 MBUM11483English
请登录
^用户手册
WFA Certification for NXP-based Wireless Modules on i.MX 8M Quad EVK Running Linux OS - User manual

PDF版本 9.0Sep 25, 2024451.8 KBUM11560English
请登录
^用户手册
Feature Configuration Guide for NXP-based Wireless Modules on i.MX 8M Quad EVK - User manual

PDF版本 16Sep 25, 20244.3 MBUM11490English
请登录
^用户手册
Getting Started with NXP-based Wireless Modules on i.MX 8M Quad EVK Running Android 14 OS

PDF版本 11Aug 8, 20245.6 MBUM11558English
请登录
^用户手册
How to Download and Build NXP Wi-Fi Drivers - User manual (restricted)

PDF版本 3Oct 12, 2022793.9 KBUM11675English
请登录

展开

设计资源

设计文件

快速参考恩智浦设计文件类型.

硬件

快速参考恩智浦板类型.

1 硬件产品

^{评估板和开发板}
AW-XM458MA Evaluation Board

AW-XM458MA

1-5 / 10 硬件

^{评估板和开发板}
JODY-W3 EVK

Evaluation Kits for JODY-W3 modules

By u-blox AG Gold 合作伙伴
^模块

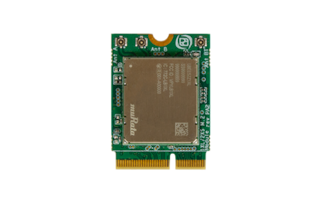

1XL M.2 Module

Dual Band Wi-Fi 6, 802.11 a/b/g/n/ac/ax 2x2 MIMO + Bluetooth 5.2 Module, based on Murata 1XL module (88W9098 chipset)

By Embedded Artists AB Gold 合作伙伴
^模块

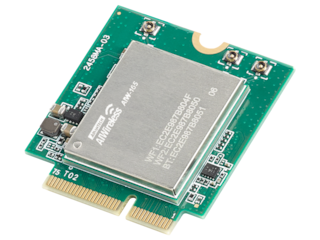

AIW-165
