高性能77GHz RFCMOS汽车雷达单芯片SoC

SAF85XX
试生产
  • 本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系恩智浦 支持服务或恩智浦当地销售人员。

滚动图片以放大

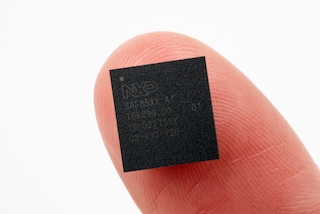

SAF85xx RFCMOS汽车雷达片上系统(SoC)是一款适用于汽车FMCW雷达应用的高性能单芯片，针对快速调频调制进行了优化。该器件的设计工作频率为76GHz至81GHz，覆盖整个汽车雷达频段。SAF85xx将雷达收发器与基于Arm®Cortex®-A53、Arm Cortex-M7内核和SRAM的雷达微处理器单元(MPU)集成在一起。入门级NCAP传感器、甚至是高性能前置雷达传感器都通过第三代RFCMOS雷达器件实现，该器件规格小巧，支持短、中、远程雷达应用。

这款完全集成的RFCMOS芯片包含4个发射器、4个接收器、ADC转换功能、相位旋转器、低相位噪声VCO、SPT雷达加速器、BBE32矢量DSP、Arm Cortex-A53、Arm Cortex-M7内核和SRAM，可支持各种使用情况和不同的雷达数据输出，如目标数据、点云数据或FFT输出。

SAF85xx是面向ASIL B级符合ISO 26262标准的器件，旨在通过其HSE安全引擎满足最新的SHE+、EVITA Full安全要求。

框图

SAF85xx

SAF85xx BD 1
获取框图PDF

特性

高度集成的收发器

  • 工作频率为76GHz至81GHz

宽的带宽

  • 总带宽5GHz
  • 有效调频带宽高达4GHz

高性能射频收发器

  • 改进的功率输出
  • 低噪声系数
  • 低相位噪声

高性能安全计算

  • Arm Cortex- A53 @320MHz
  • Arm Cortex- M7 with @320MHz

雷达处理加速

  • SPT 3.4 @320MHz，内置BBE32矢量DSP

板载存储器:

  • >5.5MB总内存，带4MB SRAM

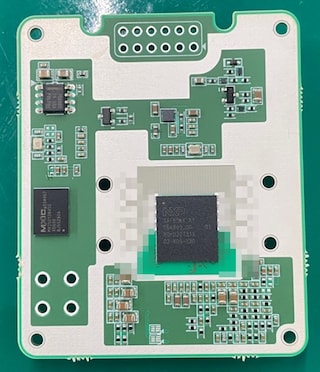

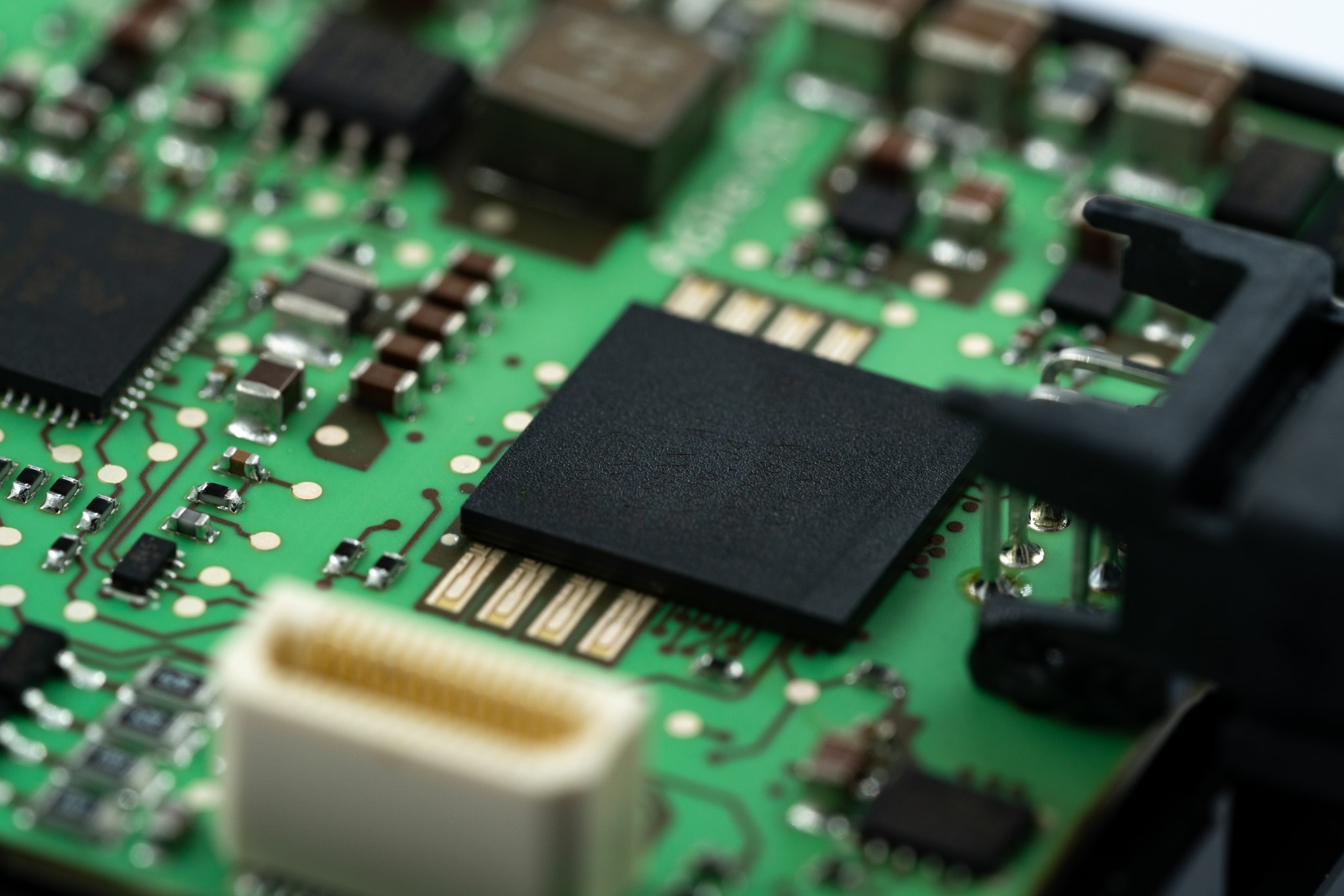

小型封装

  • FC-CSP封装，实现卓越的散热性能
  • 极小规格：10.6mmx11.3mm

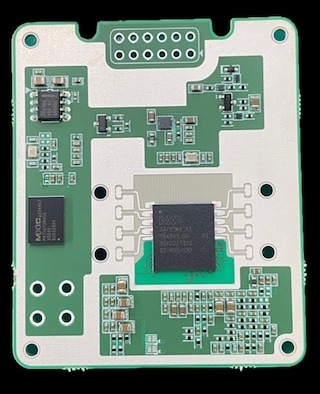

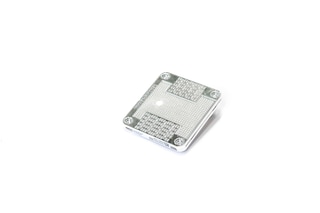

  • 可增强性能的LiP（Launcher-in-Package）封装（按需提供）

灵活的接口

  • 1个10/100Mbit/s千兆以太网
  • 2个CAN-FD

经得起未来考验的安全性

  • 硬件安全引擎(HSE)
  • EVITA Full, SHE+, 符合ISO/SAE 21434

功能安全

  • 根据ISO26262 SEoOC方法开发，支持ASIL B应用
  • 内置功能安全监控电路

可扩展的应用

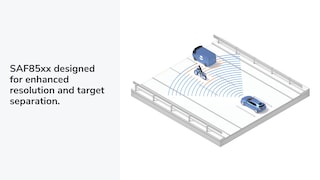

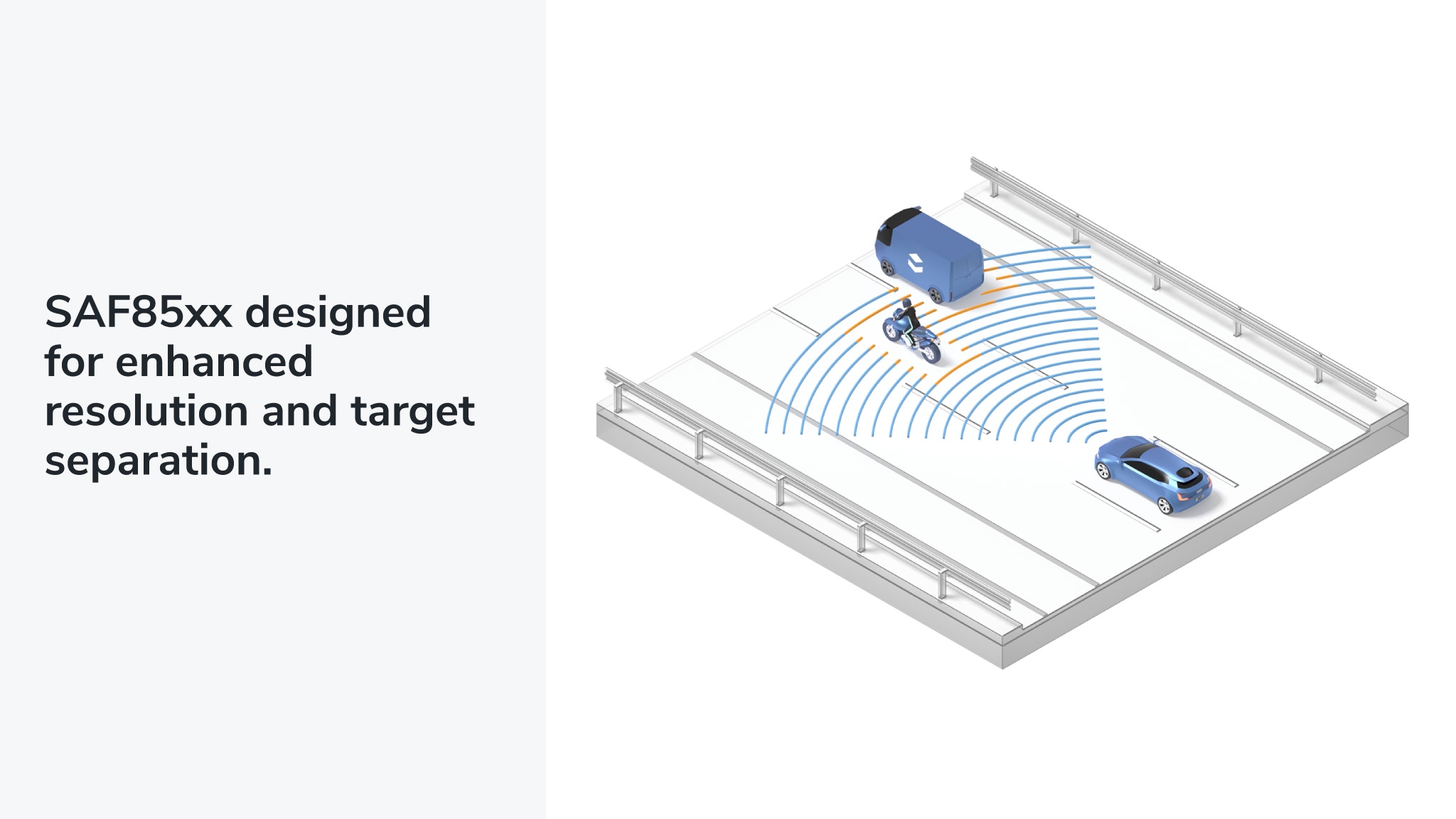

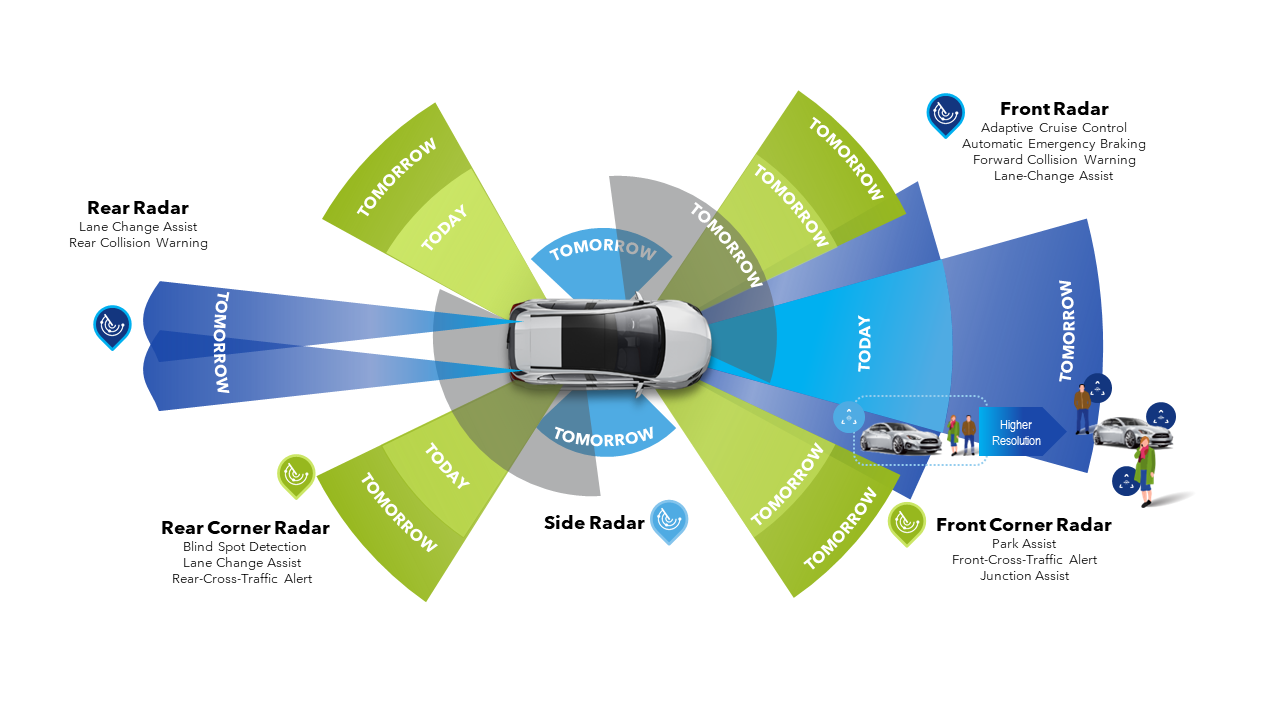

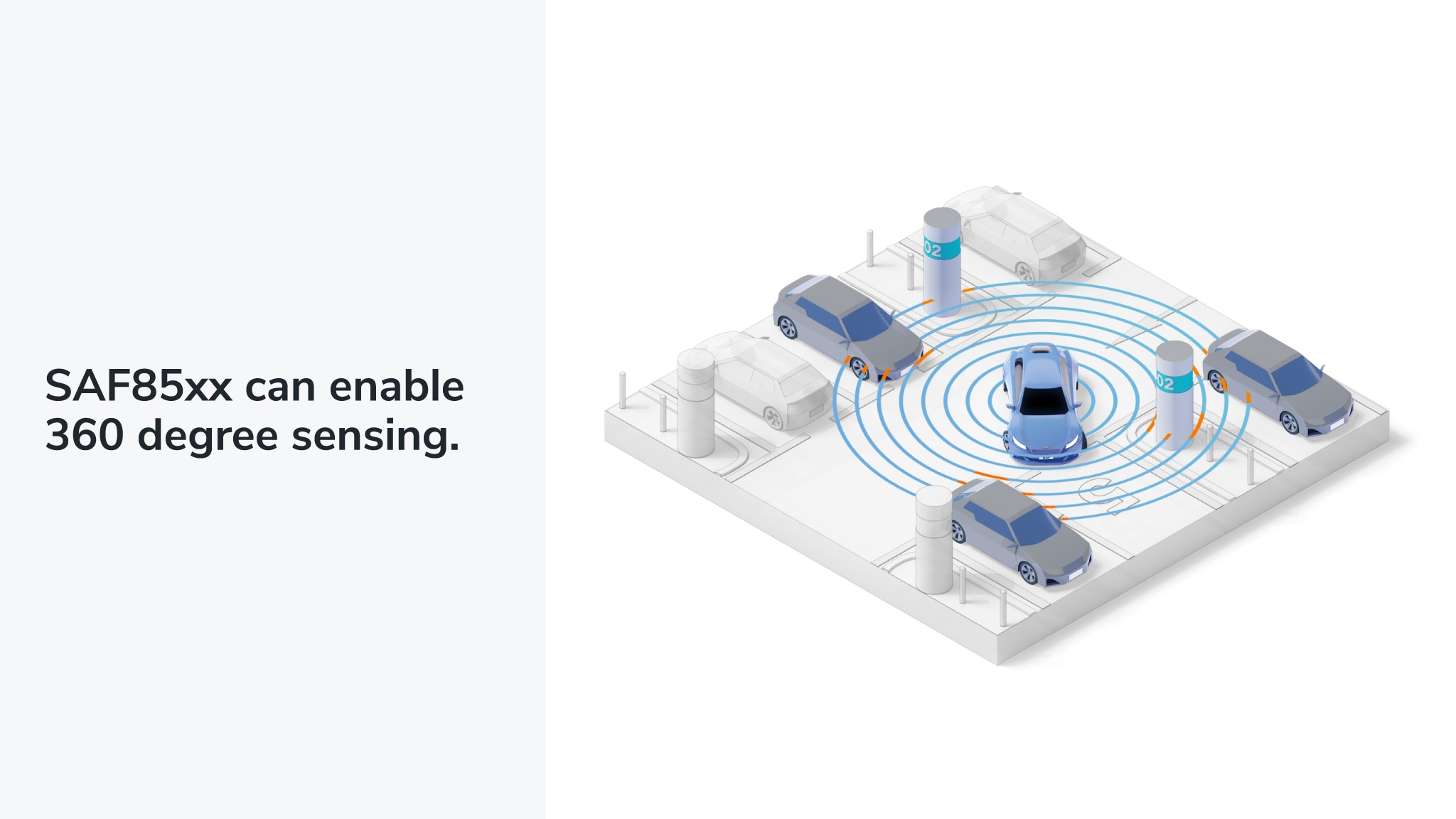

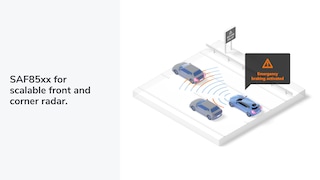

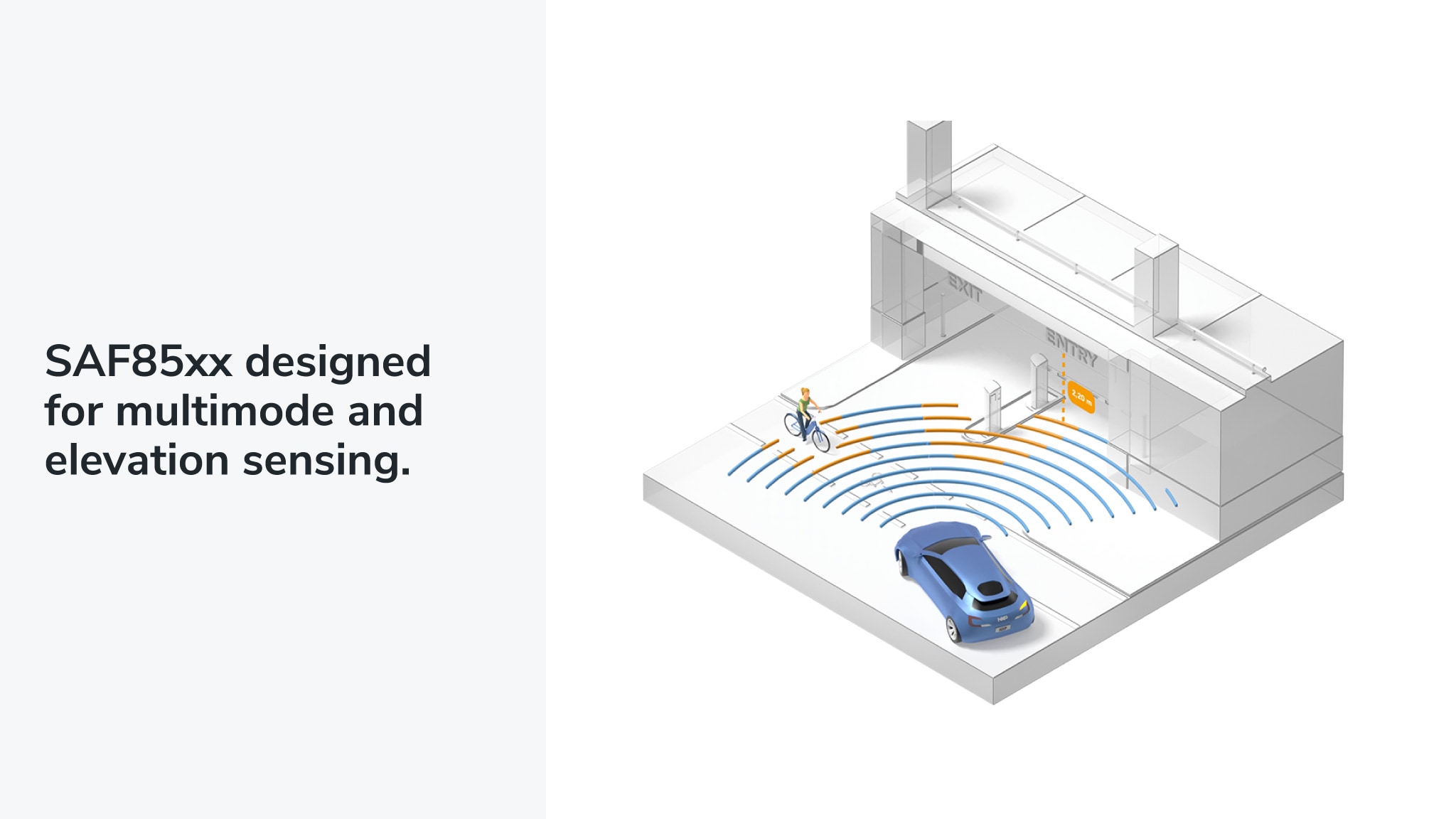

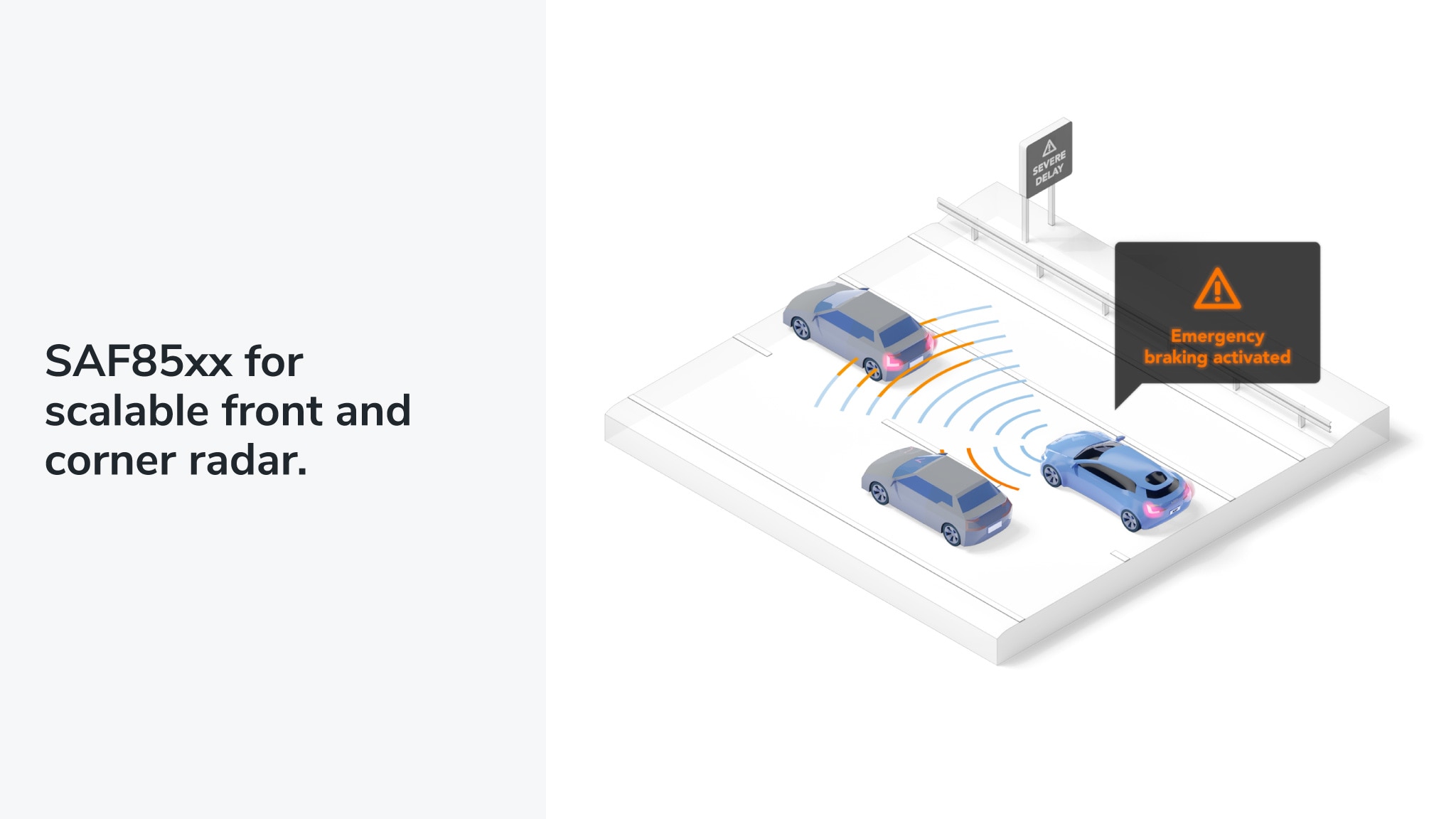

  • 支持短程到远程的应用

汽车级品质

  • AEC-Q100

广泛的汽车温度范围

  • -40°C至150°C结点温度
