塔式扩展板 - MC33932和MC33926，双路和单H桥，有刷直流和步进电机驱动器，5-28V，5A

TWR-MC-MVHB1EVB
正常供应

滚动图片以放大

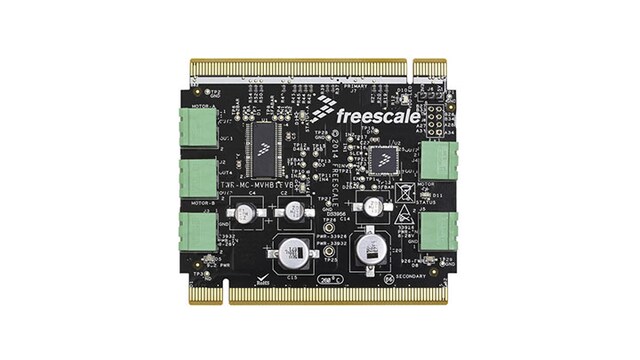

TWR-MC-MVHB1EVB模块是一个易于使用的开发板，支持用户执行H桥电机驱动器ICMC33932和MC33926的所有功能。TWR-MC-MVHB1EVB可以作为模块化塔式系统和Freedom系统开发平台的一部分。

产品详情

支持的器件

电源管理

BLDC，H桥，步进电机

  • MC33926: H桥，有刷直流电机驱动器，5-28V，5A，20kHz
  • MC33931: H桥有刷直流电机驱动器，5-28V，5A，11kHz
  • MC34931: MC34931/S H桥有刷直流电机驱动器, 5-36V, 5A, 11kHz/20kHz
  • MC34932: MC34932/S H桥有刷直流电机驱动器，5-36V，5A，11kHz/20kHz

动力和发动机控制

  • MC33932: H桥电机驱动器, 5-28 V, 5 A, 11 kHz

特征

  • Compatible with NXP’s Tower system development platform. 1 zero resistor is placed between the tower connector and each control pin of device for maximum flexibility
  • LED指示电源状态和状态
  • 瞬态电压抑制器，处理系统级瞬态
  • 测试点，允许探测信号

购买选项

TWR-MC-MVHB1EVB-Image

点击展开

  • TWR-MC-MVHB1EVB
    正常供应

  • Tower System Kit - MC33932, MC33926 Medium Voltage H-bridge Motor Control Board.

    • TWR-MC-MVHB1EVB硬件
    • 连接器 (5)
    • 快速参考指南
  • $136.62 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
