带LIN的8位EEPROM，S08EL和S08SL MCU

S08EL-SL
正常供应

S08EL和S08SL 8位微控制器带有嵌入式LIN从设备接口控制器(SLIC)和EEPROM，以提高LIN从设备性能，缩短开发时间。恩智浦半导体8位EL和SL系列微控制器(MCU)用于LIN从设备和通用市场应用。EL系列定位为较高端产品，具有更高的存储器和更多的外设，而SL系列则用于对成本较为敏感的应用。

EL和SL系列侧重的应用领域是本地互连网络(LIN)。LIN是基于UART的单主多从网络架构，最初是为汽车传感器和执行器网络应用而开发的。

产品详情

框图

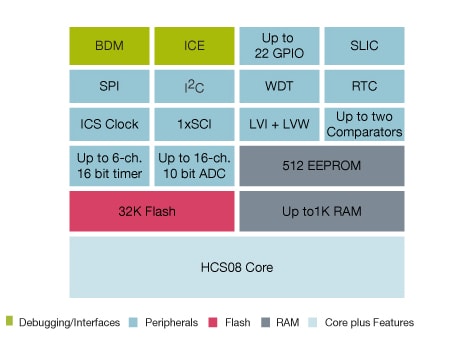

Freescale S08SL Microcontroller Block Diagram

Freescale S08EL-SL Microcontroller Block Diagram
获取框图PDF

特征

8位HCS08中央处理器(CPU)

  • 高达20 MHz的内部总线频率(40 MHz HCS08内核)，提供2.7至5.5V的功率，温度范围为-40°C至+85°C

片上存储器

  • 高达32K闪存，在整个工作电压和温度范围内均可进行读取/编程/擦除操作
  • 高达512字节的EEPROM

节电模式

  • 两种超低功耗的停止模式
  • 低功耗等待模式
  • 超低功耗的实时中断，可在运行、等待和停止模式中使用

时钟源选项

  • 振荡器(XOSC) — 回路控制皮尔斯振荡器；晶体或陶瓷谐振器，频率范围为31.25 kHz至38.4 kHz或1 MHz至16 MHz
  • 内部时钟源(ICS) — FLL模式；带调整功能的内部参考时钟

外设

  • LIN从设备接口控制器(SLIC) — 支持LIN 2.0和SAE J2602协议；速率高达120 kbps，提供完整的LIN消息缓冲，自动比特率和帧同步，校验和的生成与验证，类似UART的字节传输模式
  • 模数转换器(ADC) — 多达16通道，10位分辨率
  • 串行通信接口(SCI) — 符合LIN2.0协议和SAE J2602；主设备长中断产生；从设备长中断检测；SCI1上的LIN从设备补充；自动波特率纠正；消息超时检测
  • RTC — (实时计数器)带二进制或十进制预分频器的8位模数计数器；外部时钟源提供精确的时间基准、当前时间日历或任务调度功能；自由运行的片上低功耗振荡器(1 kHz)，提供循环唤醒

输入/输出

  • 16个中断引脚，极性可选
  • 22个通用输入/输出(GPIO)

系统保护

  • 带复位或中断功能的低电压检测；开始点可选择
  • 闪存块保护
  • EEPROM块保护

硬件开发支持

  • 单线后台调试接口
  • 具有实时总线捕捉功能的片上在线仿真器(ICE)调试

产品长期供货计划

更多

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
